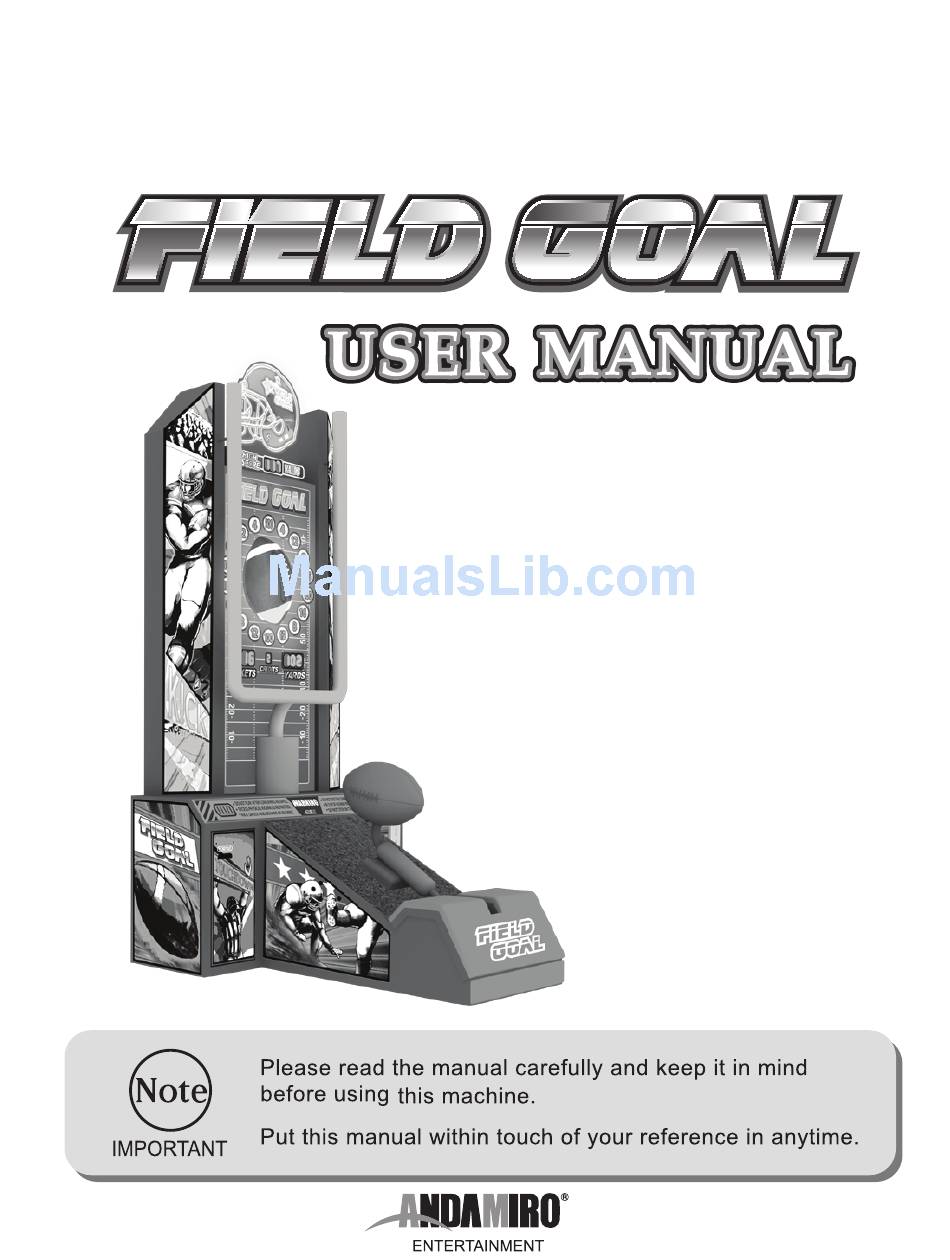

Andamiro Field Goal User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Field Goal and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Andamiro Field Goal

Summary of Contents for Andamiro Field Goal

  • Page 2: Table Of Contents

    CONTENTS 1. PRECAUTIONS 1. Precautions before installation 2. Product Assembly Precaution 3. Moving & Handling Precautions 4. Management after Installation 5. Precautions during operating 2. PRODUCT SPECIFICATION 3. How to attach the wheel sticker according to each version 1. Check the stickers 2.

  • Page 3: Precautions

    Damaged power cables can cause major product defects Make sure not to twist or over pressed while on moving or transporting. 4. Management after Installation Please note that using balls other than Genuine Andamiro football may cause damage to machine 5. Precautions during operating...

  • Page 4: Product Specification

    SPECS 2. PRODUCT SPECIFICATION 1500 2230 1200 1070 Power Requirement : 110V or 220V Power Rating : 80W Dimensions : W1070 X D1200 X H2230 (Height adjustment stopper installed 50~70 height up, Max height 2300) Weight : 220Kg...

  • Page 5: How To Attach The Wheel Sticker According To Each Version

    STICKER 3. How to attack the wheel sticker according to each version 3-1. List of stickers MEGA WIN Sticker Ticket number stickers for Version #1 50cents(A) 75cents(B) 1USD(C) CEC(D) LED-1 LED-2 FREE TICKETS Sticker LED-3 LED-4 LED-5 Strength verison sticker LED-6 to cover ticket FND ( no tickets) LED-7...

  • Page 6: Location Of The Stickers To Attach

    STICKER 3-2. Location of the stickers to attach 50cents(A) 75cents(B) 1USD(C) CEC (D) Strength (E) 3-3. How to replace wheel sticker 1) Using the 4mm wrench driver, the bolt of acryl cover. 2) Attach the sticker after checking the location of the stickers. (Attention: No extra sticker !!) 3) Assemble the acryl cover again.

  • Page 7: Types Of Pcbs & Circuit Diagram

    4. TYPES OF PCBs & CIRCUIT DIAGRAM 4-1. MAIN PCB 1. AC24V input (from Drive JP7) 11. Tickets counter output 2. Backup input (Extra power, AC 110 or 220V) 12. Tickets switch output 3. Driver PCB JP9 output 13. Tickets output 4.
  • Page 8 16. High score FND output 7. Main JP7 input 17. Dispenser PCB JP 33 output 8. Yards FND output 18. Field goal LOGO LED output 9. Credits FND output 19. Kick, red LED output 10. Bill AC110 or 220V output...

  • Page 9: Dispenser Pcb

    4-3. DISPENSER PCB LED-11 output(Wheel) 21. Wheel RGB LED output LED-1 output(Wheel) LED-12 output(Wheel) 22. Tower RGB LED output LED-2 output(Wheel) LED-13 output(Wheel) 23. Driver JP34 input LED-3 output(Wheel) LED-14 output(Wheel) LED-4 output(Wheel) LED-15 output(Wheel) LED-5 output(Wheel) LED-16 output(Wheel) LED-6 output(Wheel) LED-17 output(Wheel) LED-7 output(Wheel) LED-18 output(Wheel)

  • Page 10: Cable Connect

    CABLE CONNECT 4-4. CABLE CONNECT 110V or 220V AC POWER INPUT SMPS +24V 110V or 220V +24V POWER SWITCH JP13 JP12 JP11 SCORE FND JP10 MAIN PCB CREDIT S FND Service, +12V Reset, TACO JP25 RESET SW SERVICE SW Coin counter T ICK ET FND JP17 JP19 JP27...

  • Page 11: Circuit Diagram

    DIAGRAM 4-5. CIRCUIT DIAGRAM (MAIN PCB) MAIN PCB (10)
  • Page 12 DIAGRAM 4-5. CIRCUIT DIAGRAM (DRIVER PCB, DISPENSER PCB) DRIVER PCB DISPENSER PCB (11)

  • Page 13: Game Mode Setting

    MODE SETTING 5. GAME MODE SETTING Version#1 * POWER VERSION ( Ver. 3.0 ) - No ticket Base, Please download the current version using by attached SD card. - SETTING Downloading current version Dip switch Setting, - Turn o the machine. - On/ Kids ×2 power (×2 points) - insert the SD card.
  • Page 14 MODE SETTING Version#2 DIP SWITCH 1 1COIN/1play 2COIN/1play 3COIN/1play 4COIN/1play Ticket per high score HALF TICKET DEMO SOUND&PLAY Tickets for 0~20 yards * High score is deudcted by 1 every play DIP SWITCH 2 Version#2 funtion ON Ticket-out On/OFF A TYPE B TYPE 100 ticket for MEGA WIN 200 ticket for MEGA WIN...
  • Page 15 MODE SETTING Ticket setting for VERSION #2 A TYPE B TYPE yards tickets yards tickets 0-20 #7, 8 of DIP SW1 0-20 #7, 8 of DIP SW1 21-30 21-30 31-40 31-40 41-50 41-50 51-60 51-60 61-64 61-64 Location of the MEGA WIN stickers (14)

  • Page 16: Parts List

    PART LIST 6. PART LIST PART NAME Q'TY PART NAME Q'TY MAIN PCB SOLENOID DRIVER PCB SAFETY COVER DISPENSER PCB SPEAKER FND PCB TICKET MACHINE CABLES COIN MECHINE SHAFTS ARTIFICAL GLASS BLADE BUSHING URETHAN PROTECT PAD 4 BEARING LOCATION SENSOR TOWER LIGHT SPPED INDICATION SENSOR WHEEL...

  • Page 17: Product Assebly Instruction

    ASSEMBLY 7. PRODUCT ASSEMBLY INSTRUCTION Step 1. 1) Open the rear door of main lower console. 2) Connect main lower console and kicking console by using enclosed bolt, washer and spring washer and then connect cables. Step 2. 1) Open the rear door of main upper console 2) Install the tower light by using enclosed bolt and nylon nuts.
  • Page 18 ASSEMBLY - SUBSIDARY MATERIAL FOR ASSEMBLY 12mm Bolt ,Washer, Spring Washer 4mm wrench driver 4mmBolt,Cable Ties, NY Nut, Mount base AC Power Cable (110V or 220V) 110V 220V (17)
  • Page 19 Trouble shooting 8. Errors and Trouble shootings SYMPTOM CHECK(CAUSE) CORRECTION - Check power cable No power on - Check cables, switch, - Check power switch fuse and change - Check fuse status - Check connecting cable between No FND window PCB and FND - Check cables and - Check connecting cable between...
  • Page 20 Trouble shooting - How to change the ball After removing bolt from the ball connector, replace old ball with a new ball - How to change the ball poll Remove the bolt from the ball connecting assembly by using a spanner and an wrench By using a spanner and an wrench, remove the bolt crossing between ball connecting assembly and ball poll and then assemble the...
  • Page 21 Trouble shooting - Checking or changing of location sensor and speed indication sensor When the machine does not recognize the score, replace a sensor bracket, Change the connector by removing 2 bolts shown in the picture above Tip> Correct location of blade: It operates normally when it indicates the rear location sensor while a ball comes forward - Spring tension control...
