Summary of Contents for Andamiro DRAGON PUNCH

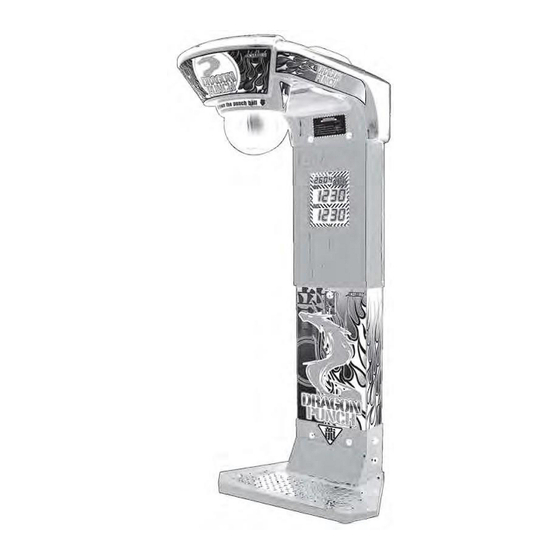

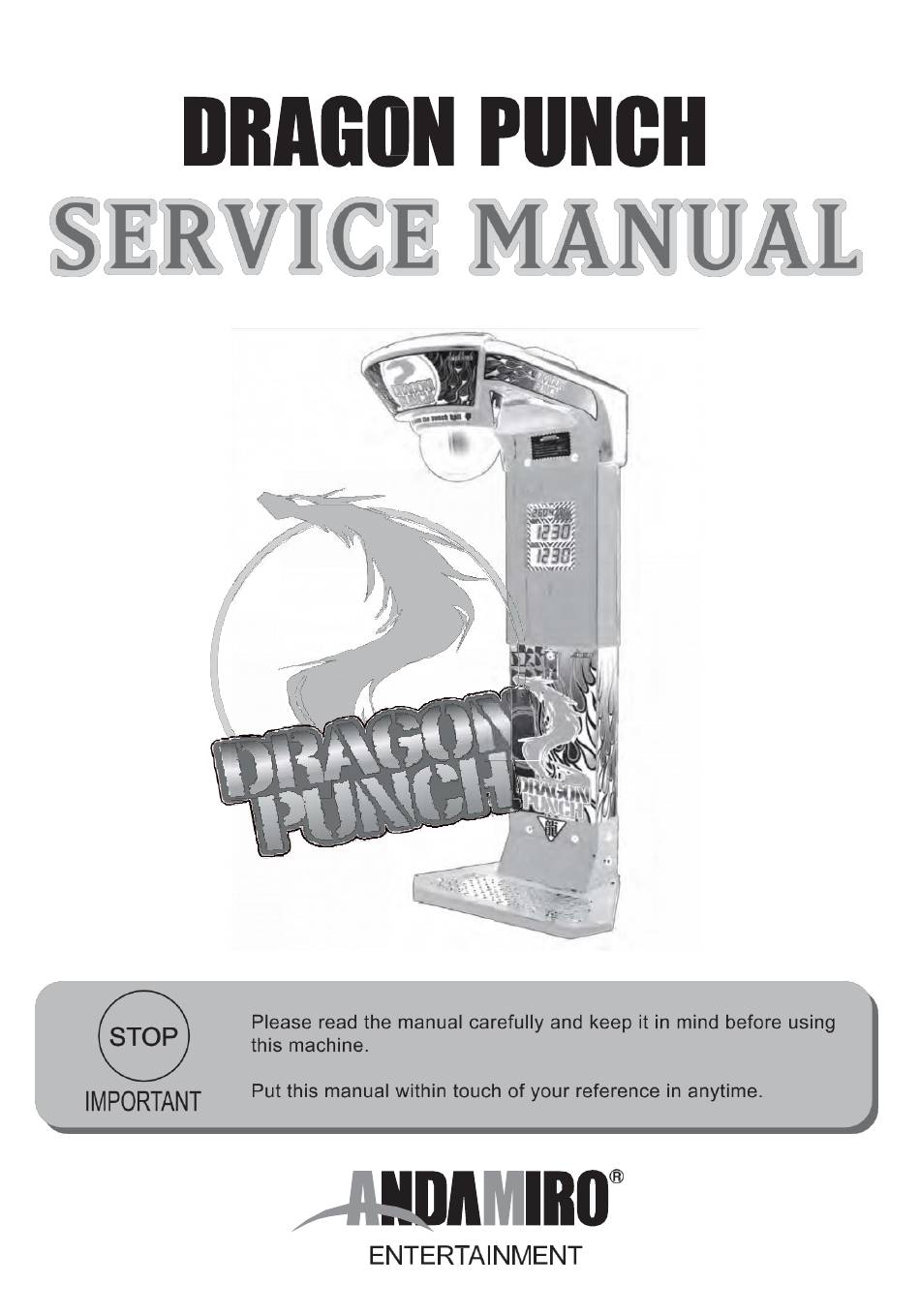

  • Page 1 To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200...
  • Page 2 To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 ^U hš š Œ ” ‰ “ •• Ž...
  • Page 3: Check Point

    To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 precaution 1. Check point – Check immediately after receiving. – Check your power requirements. 2. Installaton Reguirements. – Installing, must be done by an "experiauced engineer" –...
  • Page 4 To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 SPAC a. Power requirement : private use 110V or 220V b. Power consumption : (approx) 80W c. Dimensions : W830 D1115 H2200 d. Mass : (approx) 120Kg 1115 2200 ‚...
  • Page 5 To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 Foot hold (casting) Foot hold...
  • Page 6 To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 7aEOe oI contentV The backside FND PCB trans speaker wiring power PCB main PCB power switch coin box AC code ‚ \„...
  • Page 7 To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 7aEOe oI contentV Upper mecanism roller punchball safety bar spring board pad (firing rubber) sensor main spring micro switch shaft (including solenoid 2EA processed MC) (left side, right side)
  • Page 8 To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 Main of parts FND PCB disuse FND in FND 1 FND 2 POWER PCB Power in Power Trans in Trans out Main PBC in FND in Counter machine &...
  • Page 9 To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 Main of parts MAIN PCB D - M D-SD D-SM 1. power connection 7. slot 2. disuse 8. sensor 3. deep switch 9. power connection1 4. power connection1 10.
  • Page 10 8time Back up function on = always auto back up / off = always do not back up A right score will become 1 point down ateach game ~ Dragon punch − ticket new version Ver 4.T~ Dip 7 on...
  • Page 11 To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 Table of contents(3T) PLAY COIN Demo Sonund Game over, in 15sec, if you don't pull the rope Game over, if you don't hit the ball in 3Osec Game over, in 3Osec, if you don't pull the rope Game over, if you don't hit the ball in 6Osec Use Ticket...
  • Page 12 To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 Contents list Contents list HAME QUAHTITY SPECIFIC case(including lron parts) Iron Urethane protector Urethane Casting Foothold PCB(Main,power,FND) Bulletproof PC Leather, Tube Punchball adhesive sheet Sticker Trans Slot 1set Wiring...
  • Page 13: Trobleshooting

    To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 Trobleshooting Trobleshooting SYMPTOM CHECK (CAUSE) CORRECTIOH Plug out. The power code is disconnected. Switch on. 1. NO power The power switch is off. Replace the fuse by new one The power code is disonnected (proper size) The slot doesn't work.
  • Page 14 To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 Assembling The method of assembling 3pieces a. The lower foothold : b. The upper mechanism: Release M12 bolts (10EA), Release M12 bolts (10EA), take separate the body. the head apart.
  • Page 15 To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 A component inside of the head part letter shape manufactured part letter shape manufactured part No 1 solenoid No 1 solenoid No 1 solenoid function It pulls over a punching ball, after inseerting a coin to start a game. More details : a ቯ-shaped part and No 1 solenoid are connected to a -shaped part and when No 1 solenoid is pulled over, the punching ball can be pulled on,...
  • Page 16 To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 How to exchange the ት- shaped part in a breakage See pictute Cut cable tie with scissors See pictute ② Using an I head screwdriver, remove a tighten-up E-ring to prevent the ት-shaped part and from sliding off.
  • Page 17 To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 The lower bottom Body The top head Assembly order 1. fix a body to the 2. Connect a power lower bottom and line (AC code) screw 12mm bolts (10ea) front, back, right and left.
  • Page 18 To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 Assembly order 5. Fasten the top head onto the 6. Stand behind the machine holding body with 12mm bolts(10EA) the cover and put on the cover to front, back, right and left.
