Icom IC-A210 Service Manual page 84

(Amended page)
July 2019
1

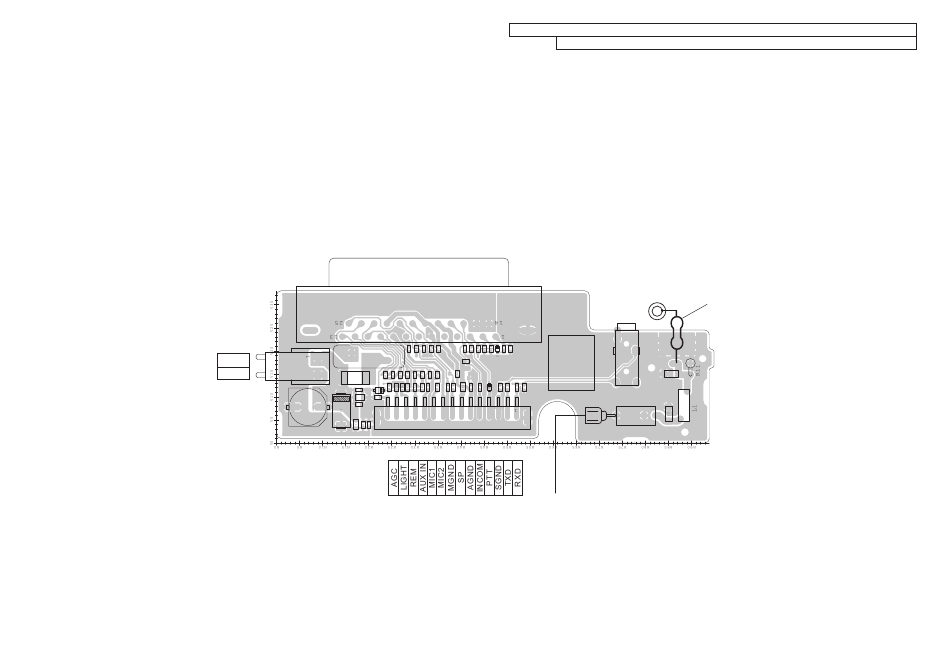

• D-CONNECT UNIT (B8129B for only IC-A220: Top view)
R19
J3
J3
DC IN
GND
F1
C25
D7
C2 C18
C24
C28
15
The actual configuration of the PC board can be seen by viewing the top and bottom BOARD LAYOUT pages together.
The underlined parts have been updated from the previous version of the addendum, or the original pages
J8
1.MEMORY CHANNEL SWITCH 14.POWER GND
2.XMIT INTERLOCK 15.POWER GND
3.SWAP 16.PTT
4.AIRCRAFT POWER 17.INTERCOM
5.AIRCRAFT POWER 18.SPEAKER +
6.SERIAL GND 19.AUDIO GND
7.TXD 20.HEADPHONE +
8.RXD 21.LIGHT
9.MIC,AUX,PTT GND 22.AUDIO GND
10.MIC1 + 23.AUXILIARY AUDIO +
11.MIC2 + 24.AGC
12.AUXILIARY AUDIO + 25.INTERCOM
13.AUXILIARY AUDIO +
MP8
J7
J8
C10
J4
J4
B-8129B
J4
W7
(CHASSIS)
1
To PA-B UNIT J503
7-13g
W1 (CHASSIS)
ANT
W1
C22
J6
See the PARTS LIST H/V location on the PARTS LIST for location details.
.
