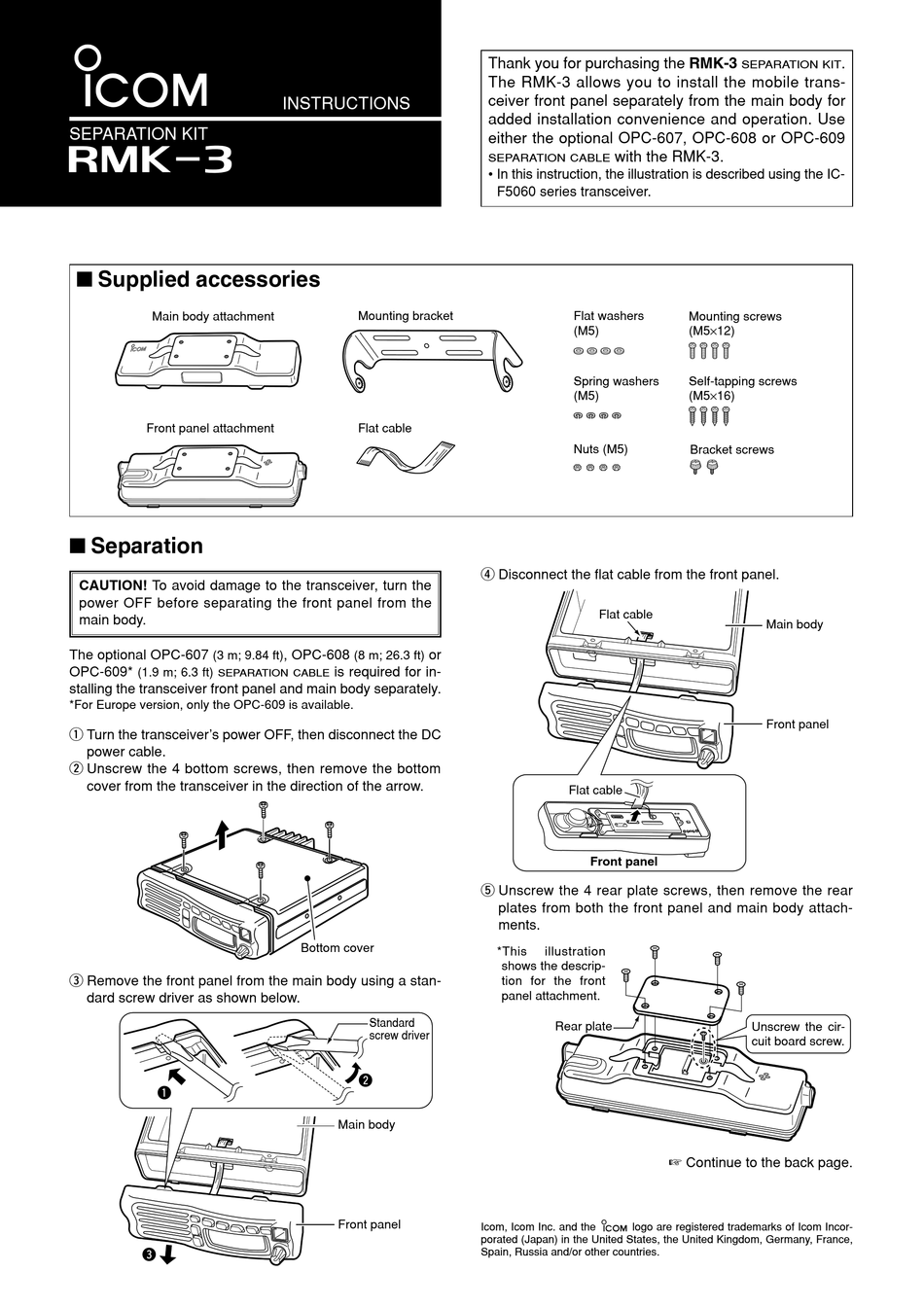

Icom RMK-3 Instructions

SEPARATION KIT
RMK-3
I Supplied accessories
Main body attachment
Front panel attachment
I Separation
CAUTION! To avoid damage to the transceiver, turn the
power OFF before separating the front panel from the
main body.
The optional OPC-607
(3 m; 9.84 ft)
OPC-609*
(1.9 m; 6.3 ft)
SEPARATION CABLE
stalling the transceiver front panel and main body separately.
*For Europe version, only the OPC-609 is available.
q Turn the transceiver's power OFF, then disconnect the DC
power cable.
w Unscrew the 4 bottom screws, then remove the bottom
cover from the transceiver in the direction of the arrow.
e Remove the front panel from the main body using a stan-
dard screw driver as shown below.
q
e
INSTRUCTIONS
Mounting bracket
Flat cable
, OPC-608 or
(8 m; 26.3 ft)
is required for in-
Bottom cover
Standard
screw driver
w
Main body
Front panel
Thank you for purchasing the RMK-3
The RMK-3 allows you to install the mobile trans-
ceiver front panel separately from the main body for
added installation convenience and operation. Use
either the optional OPC-607, OPC-608 or OPC-609
with the RMK-3.
SEPARATION CABLE
• In this instruction, the illustration is described using the IC-
F5060 series transceiver.
Flat washers
(M5)
Spring washers
(M5)
Nuts (M5)
r Disconnect the flat cable from the front panel.
Flat cable
Flat cable
Front panel
t Unscrew the 4 rear plate screws, then remove the rear
plates from both the front panel and main body attach-
ments.
*This illustration
shows the descrip-
tion for the front
panel attachment.
Rear plate
Icom, Icom Inc. and the logo are registered trademarks of Icom Incor-
porated (Japan) in the United States, the United Kingdom, Germany, France,
Spain, Russia and/or other countries.
.
SEPARATION KIT
Mounting screws
(M5×12)
Self-tapping screws
(M5×16)
Bracket screws
Main body
Front panel
Unscrew the cir-
cuit board screw.
Continue to the back page.
