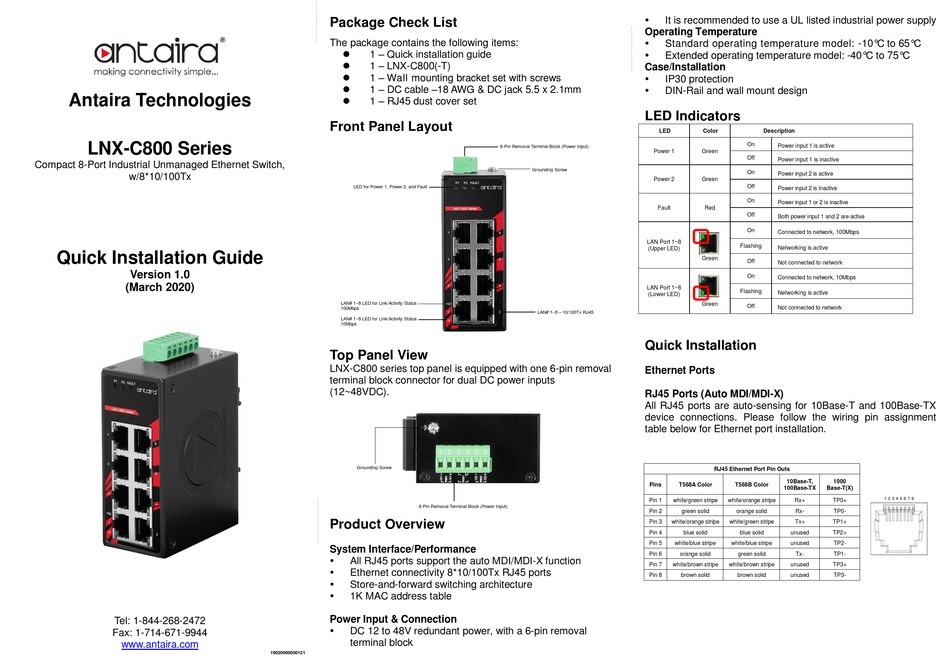

ANTAIRA LNX-C800 Series Quick Installation Manual

Antaira Technologies

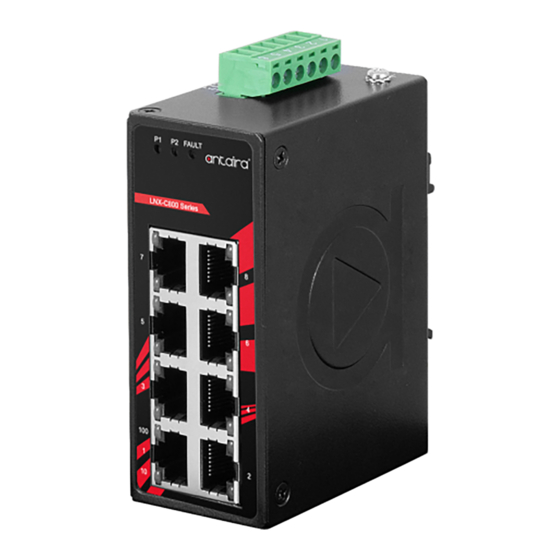

LNX-C800 Series
Compact 8-Port Industrial Unmanaged Ethernet Switch,
w/8*10/100Tx
Quick Installation Guide
Version 1.0
(March 2020)
Tel: 1-844-268-2472
Fax: 1-714-671-9944
www.antaira.com

Package Check List

The package contains the following items:
⚫ 1 – Quick installation guide
⚫ 1 – LNX-C800(-T)
1 – Wall mounting bracket set with screws
⚫
⚫ 1 – DC cable –18 AWG & DC jack 5.5 x 2.1mm
⚫ 1 – RJ45 dust cover set

Front Panel Layout

LED for Power 1, Power 2, and Fault
LAN# 1~8 LED for Link/Activity Status
100Mbps
LAN# 1~8 LED for Link/Activity Status
10Mbps
Top Panel View
LNX-C800 series top panel is equipped with one 6-pin removal
terminal block connector for dual DC power inputs
(12~48VDC).
Grounding Screw
6-Pin Removal Terminal Block (Power Input)

Product Overview

System Interface/Performance


All RJ45 ports support the auto MDI/MDI-X function

Ethernet connectivity 8*10/100Tx RJ45 ports

Store-and-forward switching architecture

1K MAC address table
Power Input & Connection

DC 12 to 48V redundant power, with a 6-pin removal
terminal block
19020000000121

It is recommended to use a UL listed industrial power supply

Operating Temperature


Standard operating temperature model: -10°C to 65°C

Extended operating temperature model: -40°C to 75°C

Case/Installation


IP30 protection

DIN-Rail and wall mount design

LED Indicators

LED
6-Pin Removal Terminal Block (Power Input)
Power 1
Grounding Screw
Power 2
Fault
LAN Port 1~8
(Upper LED)
LAN Port 1~8
(Lower LED)
LAN# 1~8 – 10/100Tx RJ45

Quick Installation

Ethernet Ports

RJ45 Ports (Auto MDI/MDI-X)

All RJ45 ports are auto-sensing for 10Base-T and 100Base-TX
device connections. Please follow the wiring pin assignment
table below for Ethernet port installation.
Pins T568A Color
Pin 1 white/green stripe
Pin 2
Pin 3 white/orange stripe
Pin 4
Pin 5 white/blue stripe
Pin 6 orange solid
Pin 7 white/brown stripe
Pin 8
Color Description
On
Power input 1 is active
Green
Off
Power input 1 is inactive
On
Power input 2 is active
Green
Off
Power input 2 is inactive
On
Power input 1 or 2 is inactive
Red
Off
Both power input 1 and 2 are active
On
Connected to network, 100Mbps
Flashing
Networking is active
Green
Off
Not connected to network
On
Connected to network, 10Mbps
Flashing
Networking is active
Green
Off
Not connected to network

RJ45 Ethernet Port Pin Outs

10Base-T, 1000
T568B Color
100Base-TX Base-T(X)
white/orange stripe Rx+ TP0+
green solid orange solid Rx- TP0-
white/green stripe Tx+ TP1+
blue solid blue solid unused TP2+
white/blue stripe unused TP2-
green solid Tx- TP1-
white/brown stripe unused TP3+
brown solid brown solid unused TP3-
