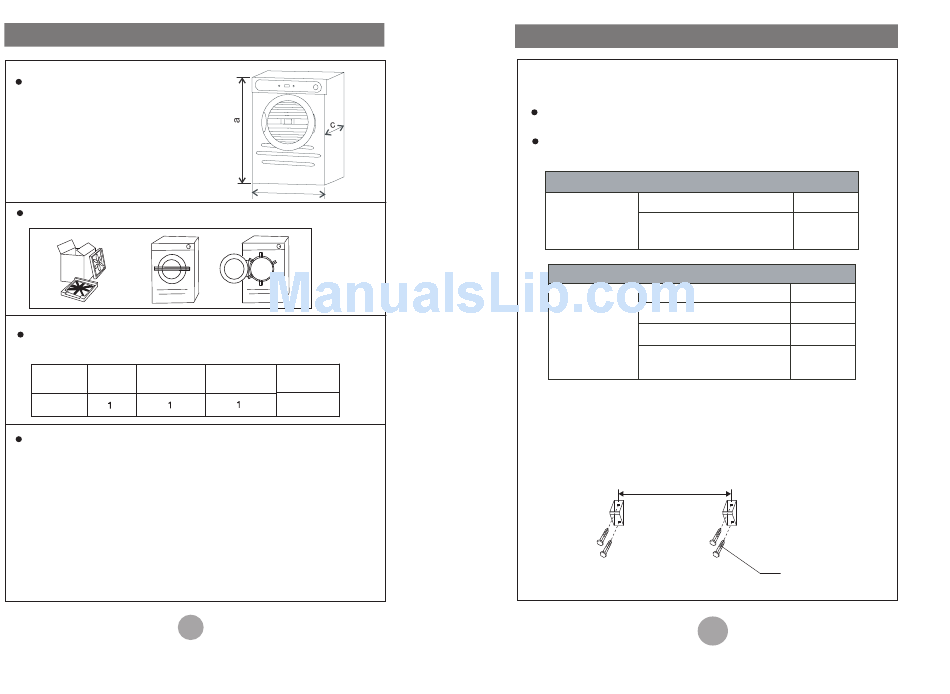

Installation

Dimensions
a = 825 mm
b = 560 mm
c = 595 mm
Weight = 30 Kg
Remove the transport packaging and the tape before starting dryer.
Packing accessories
Check list of the accessories and materials provided with the machine:
Wall
Owner's
Name
manual
mounting kit
Quantity
To ensure the dryer operating normally, attention must be paid to
the following in placement:
The rear of the dryer must not have any restriction to the intake
■
of fresh air;
Check whether there is any damage to the dryer during
■
transportation. Any damaged dryer must not be electrified. In case
of any damage, contact your dryer supplier;
The dryer must be kept away from flammable substances;
■
The surrounding environment must be dry and ventilated;
■
To allow the dryer to perform better, the ambient temperature shall
■
neither be lower than
10℃
nor higher than
8
b
Panel film
Screw
4
35℃.
Wall Mounting Instruction
1.Determine the location of the dryer on the wall and mark
the bracket position.
A minimum 50mm is needed between the top of the dryer
and the ceiling for ease of installation;
If mounting above a washing machine,allow sufficient room
to open the lid of the washer.
Tools required
Drill&3mm Bit
For plaster/
Wooden wall
Philips head screw
driver
Wall mounting kit includes
Plastic Spacers
Wall hanging brackets
Description
Hanging hook
Wood screws,12g× 50mm
imber screws
2.Fix the wall hanging brackets to the wall securely (eg. into
the stud). If the studs are too far apart, fit a timber slat to the
studs then mount the brackets onto the slat. The distance
between each bracket is 553mm as per diagram.
553mm
s
1
1
2
2
2
4
wood screw
9
