Haier HDY6.1 HA AA Parts Manual

Haier dryer parts manual
Hide thumbs

Advertisement

Quick Links

Parts Manual
Dryer
Model:
HDY6.1 HA AA
Product Code:
61405-A
61405-A

Advertisement

loading

  Related Manuals for Haier HDY6.1 HA AA

  Summary of Contents for Haier HDY6.1 HA AA

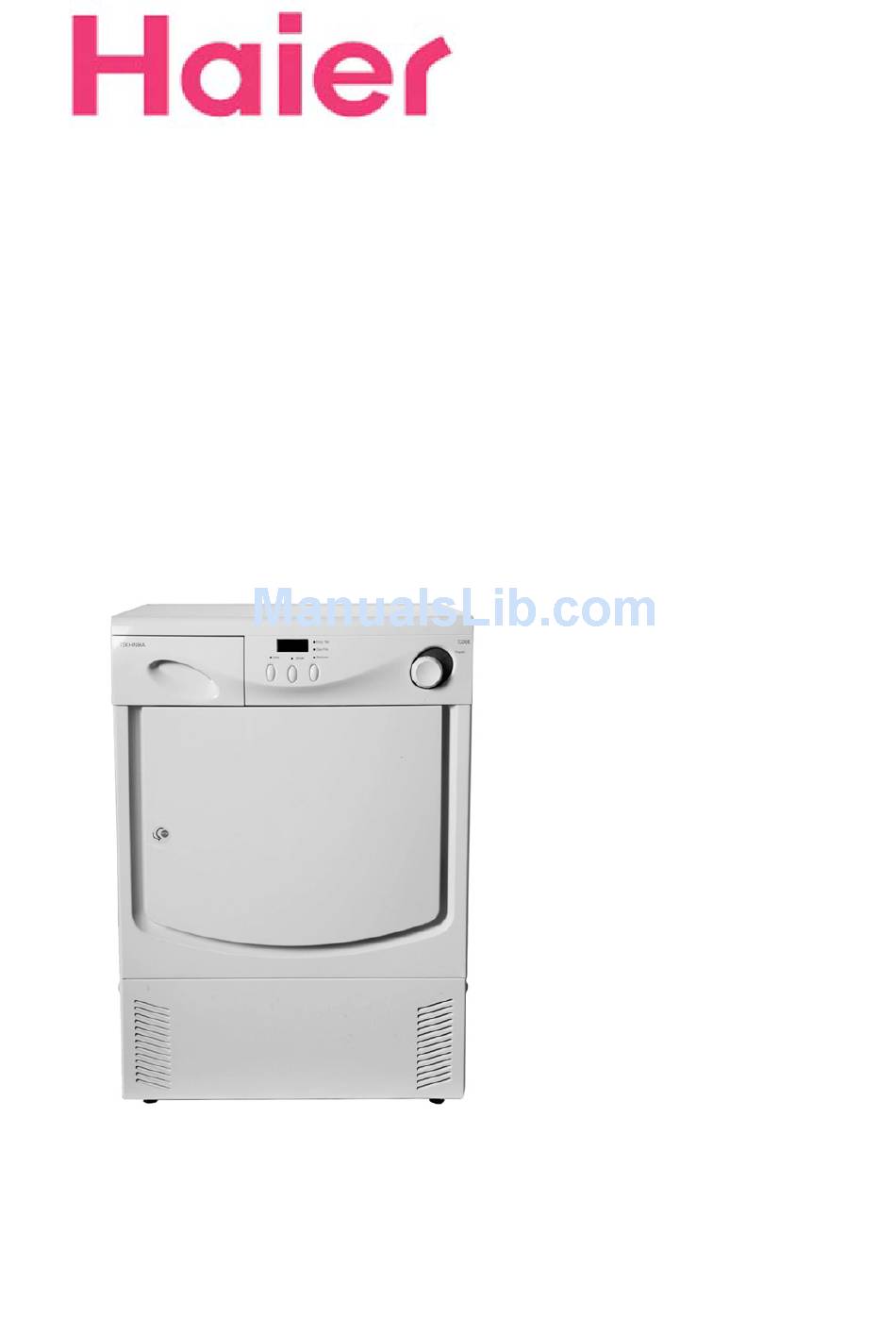

  • Page 1 Parts Manual Dryer Model: HDY6.1 HA AA Product Code: 61405-A 61405-A...
  • Page 2 61405-A...
  • Page 3 61405-A - 30 DECEMBER 2009 PRODUCT Brand Haier Voltage 220-240V 50Hz Model HDY6.1 HA AA Product Code 61405-A Fisher & Paykel Appliances Ltd 78 Springs Road, East Tamaki Manukau 2013 PO Box 58-732, Botany Manukau 2163 New Zealand Telephone: 09 273 0600 Facsimile: 09 273 0656 ...
  • Page 4 61405-A...
  • Page 5: Table Of Contents

    61405-A CONTENTS CABINET AREA ..........................6 DOOR AREA............................. 8 DRUM AREA........................... 10 MOTOR - FAN AREA........................12 CONTROL AREA – ELECTRONIC COMPONENTS ..............14 CONDENSER AREA........................16 GUIDE TO USING THIS MANUAL The model covered by this manual is listed on the front cover. The information detailed in this manual is subject to change without notice.
  • Page 6: Cabinet Area

    61405-A CABINET AREA...
  • Page 7: Cabinet Area

    61405-A CABINET AREA PART DESCRIPTION H0020102847 PANEL REAR H00213500007700 PANEL SIDE RH H0020102821 COVER REAR H00213500013900 PANEL TOP H0020202677 COVER KICK PLATE H0020102799 PANEL CONDENSER HOUSING H0020202718 COVER CONDENSER LOCK H0020202846 LATCH RH CONDENSER LOCK H0020202698 LATCH LH CONDENSER LOCK H0020102811 PANEL FRONT VENTILATION H0020800039...
  • Page 8: Door Area

    61405-A DOOR AREA...
  • Page 9 61405-A DOOR AREA PART DESCRIPTION H0020102810 PANEL FRONT H0020202666 PANEL DOOR COVER H0020102797 HINGE DOOR H0020102798 COVER HINGE TOP H0020102831 COVER HINGE BOTTOM H0020202667 DOOR HDY-C70 H0020202694 COVER HINGE BLANKING H0020202692 STRIKE H0020202693 PIN DOOR SWITCH H0020202732 CATCH HDY-C70 H0020300472 SEAL DOOR...
  • Page 10: Drum Area

    61405-A DRUM AREA...
  • Page 11 61405-A DRUM AREA PART DESCRIPTION H0020803061 DRUM ASSY H0020102820 BAFFLE MOISTURE SENSOR H0020202708 BAFFLE TUB H0020300125 BEARING DRUM SLIDE H0020300383 BELT HDY6-1 H0020100313A BEARING HIGH TEMP H00213500013400 BEARING SUPPORT...
  • Page 12: Motor - Fan Area

    61405-A MOTOR - FAN AREA...
  • Page 13 61405-A MOTOR - FAN AREA PART DESCRIPTION H0024000210 MOTOR H0020202702 H0020100099 H0020100303 BUSH SPACER H0020803060 JOCKEY ARM ASSEMBLY H00217780222308A BOLT...
  • Page 14: Control Area - Electronic Components

    61405-A CONTROL AREA – ELECTRONIC COMPONENTS...
  • Page 15 61405-A CONTROL AREA – ELECTRONIC COMPONENTS PART DESCRIPTION H0020202669 HOUSING CONTROLLER H0020202671 KNOB HDY6-1 H0020202668 PANEL CONTROL HDY6-1 H0020202672 LENS FUNCTION SELECTOR H0020202673 DIAL KNOB PROGRAMME CONTROL H0020202674 CONNECTING SHAFT PROGRAMMER H0020102801 BRACKET FRONT STRENGTHENING H0020202711 BRACKET BRUSH MOUNTING H0020202712 BRACKET BRUSH ASSEMBLY H0020202710 BRACKET TANK WATER INLET...
  • Page 16: Condenser Area

    61404-A CONDENSER AREA...
  • Page 17 61405-A CONDENSER AREA PART DESCRIPTION H0020202696 HOUSING WATER TANK H0020202695 TANK WATER H0020202675 HANDLE TANK H0020202700 HOUSING VENTILATION DUCT TOP H0020802735 FILTER LINT H0020803298A CONDENSER ASSY HDY6-1 H0020300482 HOSE PUMP DRAIN TUBE H0020802902 HOUSING DRUM FRONT H0020202703 HOUSING PUMP TANK COVER H0020300543 SEALING RING H0020202679...
