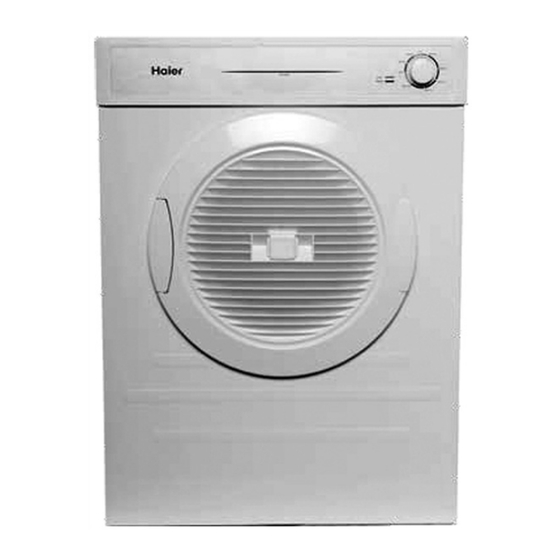

Haier HDY60M HA AA Parts Manual

Haier dryer parts manual
Hide thumbs Also See for HDY60M HA AA:

Advertisement

Quick Links

See also: Owner's Manual
Parts Manual
Dryer
Model:
HDY60M HA AA
Product Code:
61402-A
NOTE - IF THE DRYER HAS A PUSH TO START BUTTON
ON THE CONSOLE PLEASE REFER TO PARTS MANUAL 61416-A
61402-A

Advertisement

loading
Need help?

Need help?

Do you have a question about the HDY60M HA AA and is the answer not in the manual?

Questions and answers

Related Manuals for Haier HDY60M HA AA

Summary of Contents for Haier HDY60M HA AA

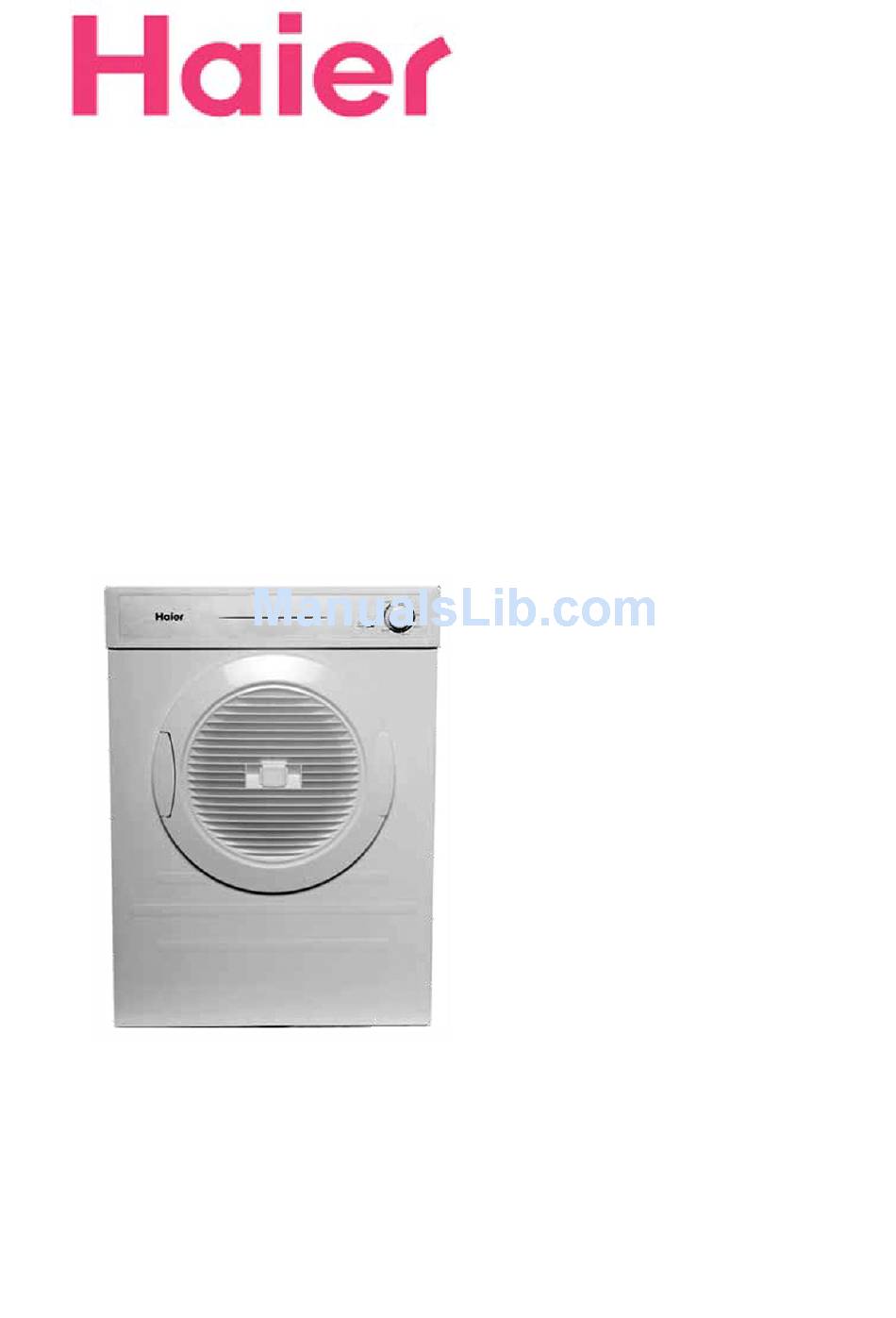

  • Page 1 Parts Manual Dryer Model: HDY60M HA AA Product Code: 61402-A NOTE - IF THE DRYER HAS A PUSH TO START BUTTON ON THE CONSOLE PLEASE REFER TO PARTS MANUAL 61416-A 61402-A...
  • Page 2 61402-A...
  • Page 3 61402-A - 30 DECEMBER 2009 REPRINT OCTOBER 2010 PRODUCT Brand HAIER Voltage 220-240V 50Hz Model HDY60M HA AA Product Code 61402-A Fisher & Paykel Appliances Ltd 78 Springs Road, East Tamaki Manukau 2013 PO Box 58-732, Botany Manukau 2163 New Zealand...
  • Page 4 61402-A...

  • Page 5: Table Of Contents

    61402-A CONTENTS CABINET AREA ..........................6 DOOR AREA............................. 8 DRUM AREA........................... 10 MOTOR - FAN AREA........................12 CONTROL AREA – ELECTRONIC COMPONENTS ..............14 GUIDE TO USING THIS MANUAL The model covered by this manual is listed on the front cover. The information detailed in this manual is subject to change without notice.

  • Page 6: Cabinet Area

    61402-A CABINET AREA...
  • Page 7 61402-A CABINET AREA PART DESCRIPTION H0020103141 PANEL TOP HDY60/HDY60M H0020100149 BRACKET FRONT H0020103140 CABINET HDY60M H0020103147 BRACKET RH REINFORCE H0020103146 BRACKET LH REINFORCE H0020203853 GROMMET PLASTIC H0020300747 SEAL FELT H0020300703 BEARING SLIDE H0020202923 CATCH H0020202692 STRIKE H0020203846 HINGE H0020203847 COVER HINGE H0020300749 INSULATOR SHEET H0020103152...

  • Page 8: Door Area

    61402-A DOOR AREA...
  • Page 9 61402-A DOOR AREA PART DESCRIPTION H0020203844 LATCH FRONT GRILL DDY60/60M H0020600278 SPRING HDY60/HDY60M H0020203845 SPIGOT GRILL MOUNT H0020100113 PIN DOOR SWITCH H0020600279 SPRING GROUNDING H0020300702 SEAL DOOR H0020203841 DOOR FRAME DRYER H0020203840 DOOR HDY60 / HDY60M H0020103148 LINT SCREEN H0020203843 LINT FILTER H0020203842 GRILL OUTLET...

  • Page 10: Drum Area

    61402-A DRUM AREA...
  • Page 11 61402-A DRUM AREA PART DESCRIPTION H0020103145 HEATER PLATE H0024000957 ELEMENT SINGLE CLIPS includes H0020300746 BELT H0020804308 DRUM ASSY H0020100313 BEARING H00213500013400 BEARING SUPPORT...

  • Page 12: Motor - Fan Area

    61402-A MOTOR - FAN AREA...
  • Page 13 61402-A MOTOR - FAN AREA PART DESCRIPTION H0020203851 H0020300006 BUSH SHOCK ABSORBING H0020600122 CLAMP ADJUSTABLE H0024000983 MOTOR HDY60 / HDY60M H002-0030100317 CLIP C H0034200008 CAPACITOR HDY60 & 60M...

  • Page 14: Control Area - Electronic Components

    61402-A CONTROL AREA – ELECTRONIC COMPONENTS...
  • Page 15 61402-A CONTROL AREA – ELECTRONIC COMPONENTS PART DESCRIPTION H0020400329 MAINS CORD H0024000984 TIMER HDY60M H0020201316 FILM PROTECTION H0020203838B PANEL CONTROL DHY60M H0020500584J PANEL FACIA H0020203839 KNOB TIMER HDY60/HDY60M H0020203849 BRACKET DOOR SWITCH H002-0030807075 SWITCH DOOR H002-0034000872 MAGNET RING H0020400757 HARNESS H0024000981 THERMOSTAT T65 H0024000982...
