Summary of Contents for Glow Bricks MILLENNIUM FALCON LEGO 75105

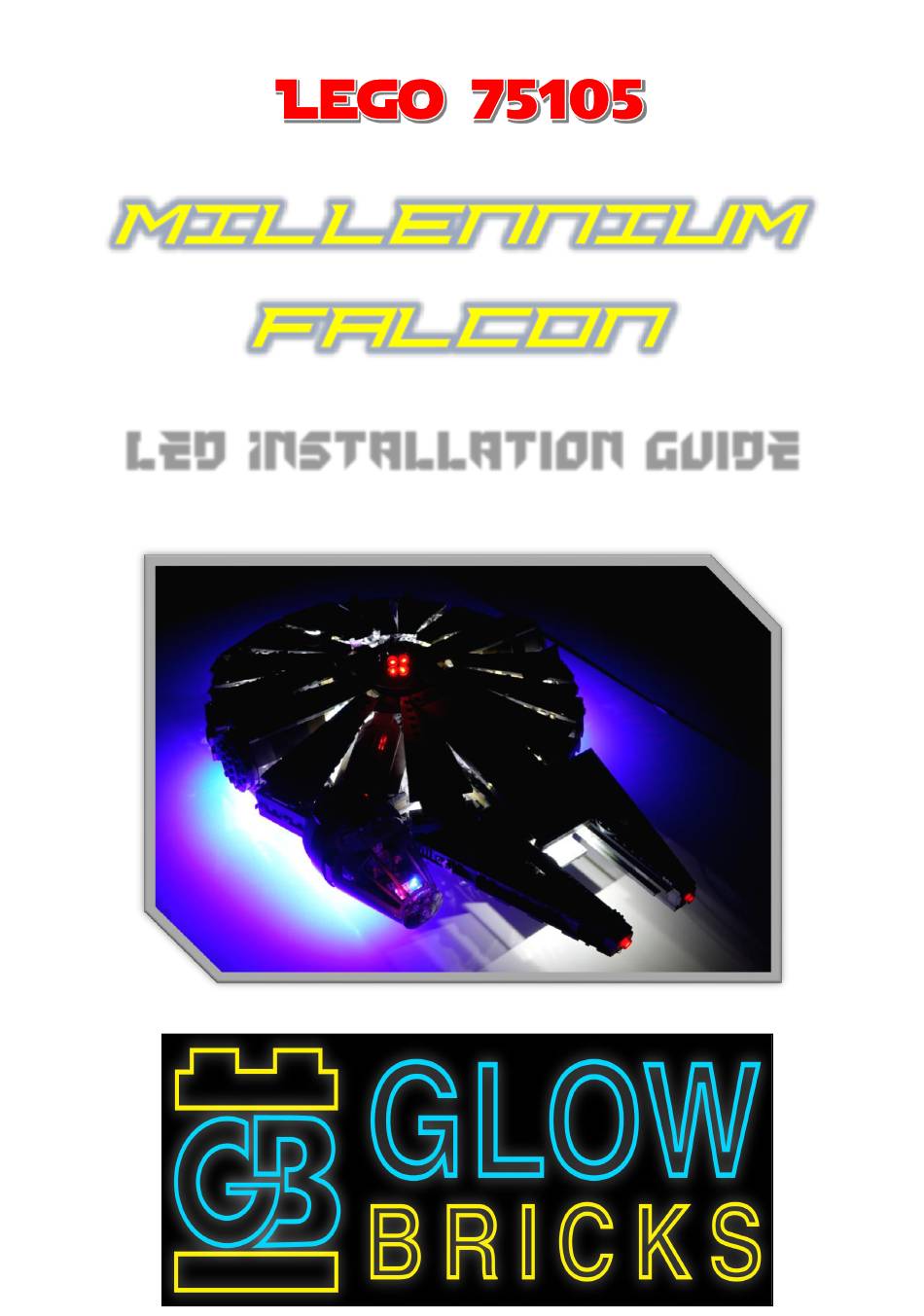

- Page 1 LED Installation Guide...
- Page 2 Remove the cannon on top Remove the antenna...
- Page 3 Bottom light (comes with a black plate) Turn over the ship Install 4 lights on left...
- Page 4 Install 3 lights on right The black one at the back Turn it back upright, take off the hyperdrive tube...
- Page 5 Move the wire of bottom light inside the ship through the gap Hyperdrive light Move the gray plates to both end of hyperdrive light...
- Page 6 Install the hyperdrive light and move the wire inside the ship Beam and cannon lights Install the cannon light...
- Page 7 Install the beam lights Remove the front tip of the ship...
- Page 8 Remove the cockpit window Remove the other tip...
- Page 9 Round the wire at the black pin Put the tips and cockpit window back...
- Page 10 Put the cannon back Cockpit and front hull light (comes with a clear plate)
- Page 11 Install the clear light plate Install 2 dark grey plates next to clear light plate Install the light grey plate beneath the loading door between the tips...
- Page 12 Install the other 3 dark grey plates Back hull ights Install dark grey plates on the hull plates...
- Page 13 Pass one light gray plate to the other side Install the light gray plates beneath the arch on both side...
- Page 14 Connect 5 connectors to USB plug Plug in and done!
