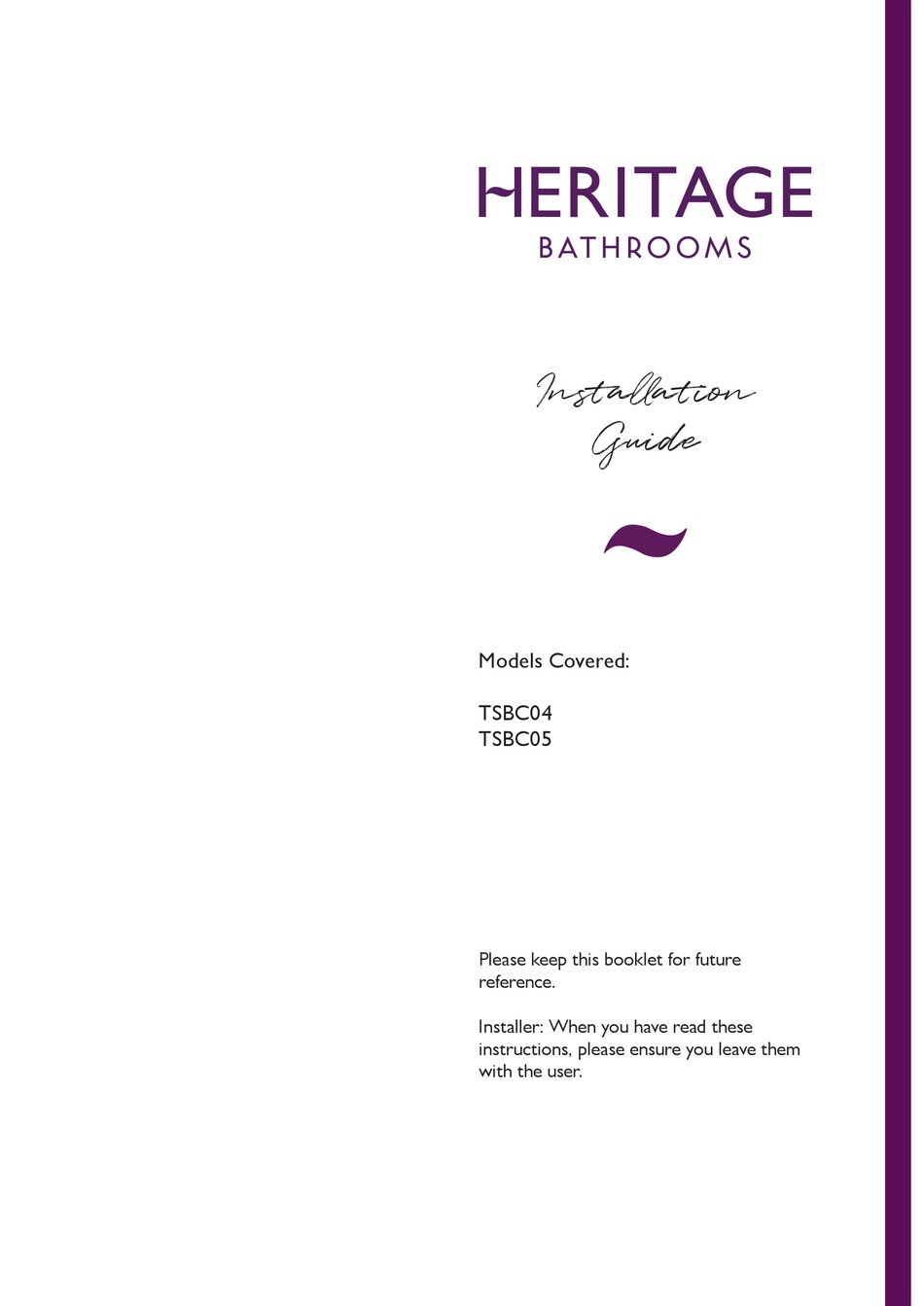

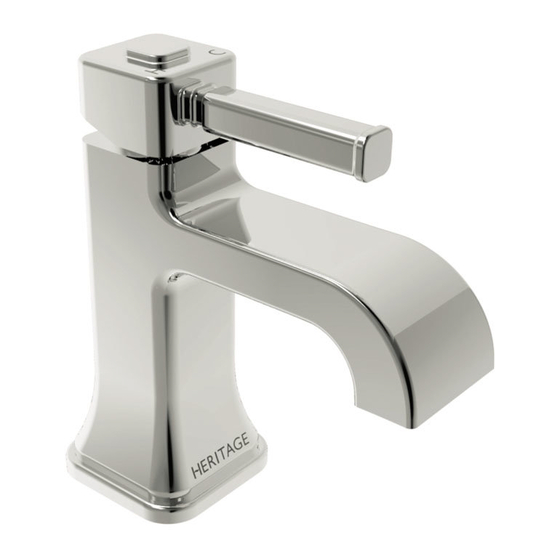

- Page 1 Installation Guide Models Covered: TSBC04 TSBC05 Please keep this booklet for future reference. Installer: When you have read these instructions, please ensure you leave them with the user.
-
Page 2: Table Of Contents
I N T R O D U C T I O N Thank you for buying a Heritage Product. When you buy a Heritage product, you can be confident that it not only features a beautiful, distinctive, classic design, but that it has also been made to the very highest quality standards. -
Page 3: Safety Notes
Supply regulations 1999 (Water Fittings) and current by-laws. S P E C I F I C AT I O N OPERATING PRESSURE RANGE (BAR): TSBC04 - Min 0.3 bar, Max 5.0 bar TSBC05 - Min 1.0 bar, Max 5.0 bar MAXIMUM STATIC PRESSURE (BAR): 10 bar INLET WATER TEMPERATURE RANGE: Cold - Min 5°C, Max 25°C... -
Page 4: Pack Contents
P A C K C O N T E N T S TSBC04 TSBC05... -
Page 5: Installation
I N S TA L L AT I O N Screw the flexible tails and fixing kit rod into the tap body. DO NOT OVERTIGHTEN. Secure the plinth to the tap body using the hex key provided. Connect the hot and cold water supplies. - Page 6 I N S TA L L AT I O N Place the second rubber washer under the basin, and secure the waste body in place with the backnut. Fit the waste body to the basin/ bidet, ensuring the rubber washer is in place. Spare Parts Connect the waste pipework.
-
Page 7: Operation
CLOSE/ OPEN CLOSE/ OPEN TSBC04 TSBC05 C A R I N G F O R Y O U R P R O D U C T Heritage products are made from premium materials with hand polishing and electroplated finishes. Your product should be regularly cleaned with warm water, a mild pH-neutral liquid soap, and polished with a soft cloth. -
Page 8: Maintenance
M A I N T E N A N C E Cartridge Cleaning Isolate the water supply. Remove the handle using the hex key provided. Unscrew the shroud and remove the retaining nut using a suitable spanner. Remove the cartridge. Reverse the steps to Place cartridge in a suitable replace the cartridge. - Page 9 M A I N T E N A N C E Replace the Outlet TSBC04 Isolate the water supply. Prise the flow aerator from the tap body using a suitable tool. Using a WRAS approved glue, place the new aerator inside the gap ensuring no glue covers the outlet holes.
-
Page 10: Troubleshooting
T R O U B L E S H O O T I N G Symptom Cause Remedy Partially closed isolation valve. Open isolation valve. Instantaneous water heater cycles on and Increase water flow rate or pressure off as flow rate or pressure is too low. through system. -
Page 11: Notes
N O T E S... - Page 12 If you have any queries, our dedicated customer service teams and products experts are available to help. www.heritagebathrooms.com enquire@heritagebathrooms.com 0330 026 8503 Website Email us Call us Heritage Bathrooms Pooley Hall Drive, Birch Coppice Business Park, Dordon, Tamworth B78 1SG...
