Glastonbury Tap Range
Installation Instructions
and User Guide
Models covered:

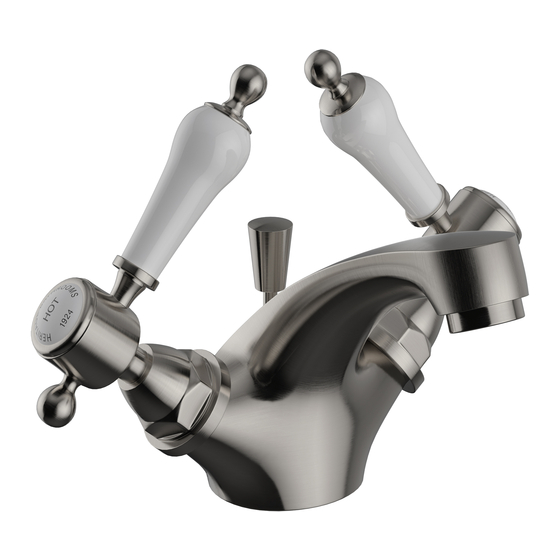

1 Hole Basin Mixer
TGRC04 / TGRG04/ TGRBL04 / TGRCN04
1 Hole Bidet Mixer
TGRC05 / TGRG05
3 Hole Basin Mixer
TGRC06 / TGRG06 / TGRBL06 / TGRCN06
3 Hole Basin Mixer (Swivel Spout)
TGRC09 / TGRG09 / TGRBL09 / TGRCN09
Please keep this booklet for future reference.
Installer: when you have read these
instructions please ensure you leave them
with the user.
Advertisement
Related Manuals for Heritage Bathrooms Glastonbury TGRC04
Summary of Contents for Heritage Bathrooms Glastonbury TGRC04
- Page 1 Glastonbury Tap Range Installation Instructions and User Guide Models covered: 1 Hole Basin Mixer TGRC04 / TGRG04/ TGRBL04 / TGRCN04 1 Hole Bidet Mixer TGRC05 / TGRG05 3 Hole Basin Mixer TGRC06 / TGRG06 / TGRBL06 / TGRCN06 3 Hole Basin Mixer (Swivel Spout) TGRC09 / TGRG09 / TGRBL09 / TGRCN09 Please keep this booklet for future reference.
-
Page 2: Table Of Contents
Contents When you buy a Heritage product, you can be confident that it not only features a beautiful, distinctive, classic design, but that it has also been made to the very highest quality standards. To ensure that it works to its full potential, it needs to be fitted correctly. These fitting instructions have been created to give you all of the information you need and, if you need any further help, please do not hesitate to give us a call on 0330 026 8503. -
Page 3: General Specifications
Safety Note All products manufactured and supplied by Heritage Bathrooms are safe to use provided that they are installed, operated and receive regular maintenance in accordance with these instructions. This product needs to be installed in accordance with, and meet the requirements of the Water Supply (Water Fittings) Regulations 1999 and current by-laws. - Page 4 Installation – 3 Hole Basin Mixer *TGRC09 / TGRG09 shown for illustration purposes only. The installation guide also applies to TGRC06 / TGRG06...
- Page 5 Installation – 3 Hole Basin Mixer Side Body Indices Pop Up Rod & Knob Spout Plinth & Washer* Screw & Washer Spout Backnut & Washer Handle Assembly Shroud ‘T’ Joint Assembly Anti Splash Assembly Valve Plinth and Foam Washer Connecting Pipes Pop Up Waste Assembly Backnut &...
- Page 6 Installation – 1 Hole Basin Mixer / Bidet Mixer *TGRC04 / TGRG04 shown for illustration purposes only. The installation guide also applies to TGRC05 / TGRG05...
- Page 7 Installation – 1 Hole Basin Mixer/Bidet Rubber ‘C’ Shaped plate Indices Metal ‘C’ Shaped Plate Screw & Washer Backnut Handle Assembly Threaded Rod Shroud Tap Body Seal Valve Connecting Pipes Tap Body Pop Up Waste Assembly Pop Up Rod & Knob Anti-Splash Assembly 1.
-
Page 8: General Cleaning
General Cleaning Heritage products are made from premium materials, with hand polishing, PVD, EPD and electroplated finishes. Your product should be regularly cleaned with warm water, a mild pH-neutral liquid soap, and polished with a soft cloth. Any residues from soap, toiletries etc. should be rinsed off straight after use. -
Page 9: Maintenance
Maintenance Replacing the Valves We advise that your fitting is regularly serviced in hard water areas to maintain optimum performance. If your fitting begins to leak the following should be carried out; Indice Isolate both hot and cold water supplies to the tap by either: Screw &... -
Page 10: Troubleshooting
Troubleshooting Symptom Cause Remedy No flow or poor flow rate. Partially closed isolation valve. Open isolation valve. Instantaneous water heater cycles on Increase water flow rate or pressure and off as flow rate or pressure is too through system. low. Head of water is below the Refer to specification for minimum minimum distance required. -
Page 11: Guarantee
Heritage Bathrooms Guarantee G UA R A N T E E The confidence we have in the quality of our products and services enables us to offer a free peace-of-mind product guarantee from 2 years up to a lifetime guarantee against any manufacturing faults, with proof of purchase. - Page 12 Email us 0330 026 8503 Call us www.heritagebathrooms.com Website UK: Heritage Bathrooms, Pooley Hall Drive, Birch Coppice Business Park, Dordon, Tamworth B78 1SG EU: Masco Europe S.à.r.l., 14 Rue Strachen, 6933 Mensdorf, Luxembourg.
