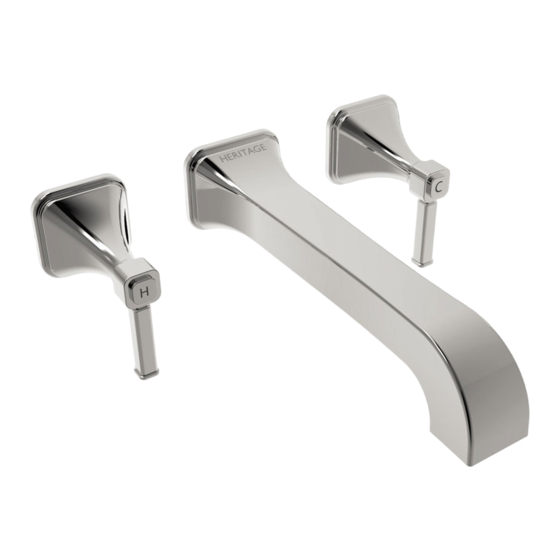

- Page 1 Somersby Tap Range Installation Instructions and User Guide Models covered: TSBC10 Wall Mounted Basin Mixer TSBC11 Wall Mounted Bath Filler TSBC12 Bath Spout Please keep this booklet for future reference. Installer: when you have read these instructions please ensure you leave them...
-
Page 2: Table Of Contents
Contents When you buy a Heritage product, you can be confident that it not only features a beautiful, distinctive, classic design, but that it has also been made to the very highest quality standards. To ensure that it works to its full potential, it needs to be fitted correctly. These fitting instructions have been created to give you all of the information you need and, if you need any further help, please do not hesitate to give us a call on 0844 701 8503. -
Page 3: Important Safety Information
Safety Note • Please read these instructions & retain for future use. All products manufactured & supplied by Heritage are safe, provided they are installed correctly, used correctly, and receive regular maintenance in accordance with these instructions. • If you are in any doubt about your ability to install this product safely you must employ the services of an experienced, qualified plumber. -
Page 4: Dimensions
Dimensions Wall Mounted Basin Mixer – TSBC10 G1/2... - Page 5 Dimensions Cont. Wall Mounted Bath Filler – TSBC11 G3/4...
- Page 6 Dimensions Cont. Bath Spout– TSBC12...
-
Page 7: Installation
Installation Wall Mounted Basin Mixer / Bath Filler 11 12 Valve Indice Mixer Body Handle Screw Spout Connection Lever Handle Locking Nut Spline Adapter Plinth Shroud Spout Grub Screw Anti-Splash Shroud Connection... - Page 8 Installation Cont. 1. Identify all components are present prior to starting installation. 2. Decide on the final position of the mixer body (9). And ensure that you adequate plumbing for the hot and cold supplies. NOTE:- This product is designed to suit a maximum cavity depth of 26mm. A baton may be required to ensure the correct depth is achieved.
- Page 9 Installation Cont. Bath Spout 1. Terminate sufficient pipework inside the wall cavity to a 1/2" BSP female fitting ensuring pipework is fixed in position and rigid so that it is unable to move. 2. Screw the spout connecting tube (1) into the female fitting (using a suitable thread sealant) ensuring the spout connecting tube is fully tightened.
-
Page 10: Maintenance
Maintenance General Cleaning Your fitting has a high quality finish and should be treated with care to preserve the visible surfaces. All finishes will wear if not cleaned correctly. The only safe way to clean your product is to wipe with a soft damp cloth. - Page 11 Maintenance cont. Cleaning the Valves Within The Side Bodies We advise that your fitting is regularly serviced in hard water areas to maintain optimum performance. If your fitting begins to leak the following should be carried out; Isolate both hot and cold water supplies to the tap by either: Indice •...
-
Page 12: Troubleshooting
Troubleshooting Symptom Cause Remedy No flow or poor flow rate. Partially closed stop or service valve in Open stop or service valve. water supply pipework to the tap. Head of water is below the minimum Refer to the Specification section for distance required. -
Page 13: Notes
Notes Please use this space to add any notes you or your installer may have regarding the plumbing system / installation of this product. -
Page 14: Guarantee
Heritage Bathrooms Guarantee When you buy a Heritage product, you can be confident that it not only features distinctive design, but that it has also been made to meet our rigorous quality standards. We offer robust guarantees and an attentive aftercare service to ensure that if you do experience any issues, we can deal with a problem quickly, and effectively. - Page 15 Heritage Bathrooms Guarantee Cont. The guarantee does not cover: Damage or defects caused by General wear and tear (including special non-chrome finishes; components such as filters, seals, ‐ ‘O’ rings and washers) Incorrect installation ‐ Repair using non-Heritage parts ‐...
- Page 16 Heritage Bathrooms Birch Coppice Business Park Dordon Tamworth B78 1SG Website: www.heritagebathrooms.com Telephone: 0844 701 8503 Email: technical@heritagebathrooms.com HFI (SOMERSBY – WALL MNT) REV. D1...
