Dawlish Tap Range
Installation Instructions
and User Guide
Models covered:
TDCC00 / TDCG00
TDCCS00 / TDCGS00
TDCC01 / TDCG01
TDCC072 / TDCG072 Bath Filler
TDCC02 / TDCG02
Please keep this booklet for future reference.
Installer: when you have read these
instructions please ensure you leave them
with the user.

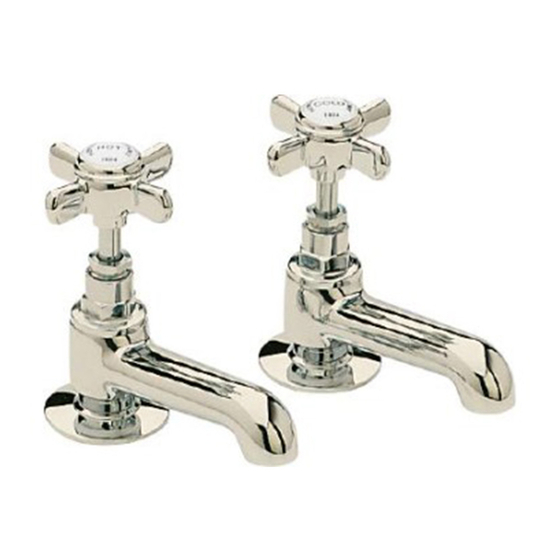

Basin Taps
Short Nose Basin Taps
Bath Taps
Bath Shower Mixer
Advertisement
Table of Contents
Related Manuals for Heritage Bathrooms TDCG00
Summary of Contents for Heritage Bathrooms TDCG00
- Page 1 Dawlish Tap Range Installation Instructions and User Guide Models covered: TDCC00 / TDCG00 Basin Taps TDCCS00 / TDCGS00 Short Nose Basin Taps TDCC01 / TDCG01 Bath Taps TDCC072 / TDCG072 Bath Filler TDCC02 / TDCG02 Bath Shower Mixer Please keep this booklet for future reference.
-
Page 2: Table Of Contents
Contents When you buy a Heritage product, you can be confident that it not only features a beautiful, distinctive, classic design, but that it has also been made to the very highest quality standards. To ensure that it works to its full potential, it needs to be fitted correctly. These fitting instructions have been created to give you all of the information you need and, if you need any further help, please do not hesitate to give us a call on 0844 701 8503. -
Page 3: Important Safety Information
Safety Note • Please read these instructions & retain for future use. All products manufactured & supplied by Heritage are safe, provided they are installed correctly, used correctly, and receive regular maintenance in accordance with these instructions. • If you are in any doubt about your ability to install this product safely you must employ the services of an experienced, qualified plumber. -
Page 4: Dimensions
Dimensions G1/2 G1/2 Basin Taps (TDCC00/TDCG00) Short Nose Basin Taps (TDCCS00/TDCGS00) G3/4 Bath Taps (TDCC01/TDCG01) - Page 5 Dimensions Cont. G3/4 Bath Filler (TDCC072/TDCG072) G3/4 G3/4 Bath Shower Mixer (TDCC02/TDCG02)
-
Page 6: Installation
Installation 1. Identify all components are present prior to starting installation. 2. Using the washer (10) and backnuts (11) secure the taps to the basin by tightening the backnuts onto the pre-fitted threaded tails (9). A suitable spanner may be required to fully tighten the backnuts (11). -
Page 7: Bath Filler / Bath Shower Mixer
Installation – Bath Filler / Bath Shower Mixer Handset Washer Hose Backnut Cradle Assembly Handset Holder Diverter Assembly Screw Elbow Assembly Shroud Pillar Assembly Rawl Plug... - Page 8 Installation – Bath Filler / Bath Shower Mixer Cont. * Bath shower mixer only 1. Identify all components are present prior to starting installation. 2. Using the washer (7) and backnuts (8) secure the pillars to the bath by tightening the backnuts onto the pre-fitted threaded tails.
-
Page 9: Maintenance
Maintenance General Cleaning Your fitting has a high quality finish and should be treated with care to preserve the visible surfaces. All finishes will wear if not cleaned correctly. The only safe way to clean your product is to wipe with a soft damp cloth. Stains can be removed using washing up liquid. All bathroom cleaning products (powders and liquids) will damage the surface of your fitting, even the non- scratch cleaners. - Page 10 Maintenance Cont. Cleaning the Valves Indice If your fitting begins to leak the following should be carried out; Screw & Washer Isolate both hot and cold water supplies to the tap by either: Handle • Turning the water supply off at the mains stopcock or Shroud •...
-
Page 11: Map Of Hard Water Regions
Map of Hard Water Regions Soft to Hard to very hard moderately soft Above 200mg/l as 0 - 100mg/l as calcium carbonate calcium carbonate equivalent equivalent Slightly hard to moderately hard 100 - 200mg/l as calcium carbonate equivalent... -
Page 12: Troubleshooting
Troubleshooting Symptom Cause Remedy No flow or poor flow Partially closed stop or service Open stop or service valve. rate. valve in water supply pipework to the tap. Head of water is below the Refer to the Specification section minimum distance required. for minimum pressures required. -
Page 13: Guarantee
Heritage Bathrooms Guarantee When you buy a Heritage product, you can be confident that it not only features distinctive design, but that it has also been made to meet our rigorous quality standards. We offer robust guarantees and an attentive aftercare service to ensure that if you do experience any issues, we can deal with a problem quickly, and effectively. - Page 14 Heritage Bathrooms Guarantee Cont. The guarantee does not cover: Damage or defects caused by General wear and tear (including special non-chrome finishes; components such as filters, seals, ‘O’ rings and washers) Incorrect installation Repair using non-Heritage parts Accidental or wilful misuse Corrosion and the use of inappropriate cleaning products.
-
Page 15: Notes
Notes Please use this space to add any notes which you or your installer may have regarding the plumbing, installation, and/or servicing of this product:... - Page 16 Heritage Bathrooms Birch Coppice Business Park Dordon Tamworth B78 1SG Website: www.heritagebathrooms.com Telephone: 0844 701 8503 Email: technical@heritagebathrooms.com HFI (DAWLISH-BAS/BATH) REV. D1...
