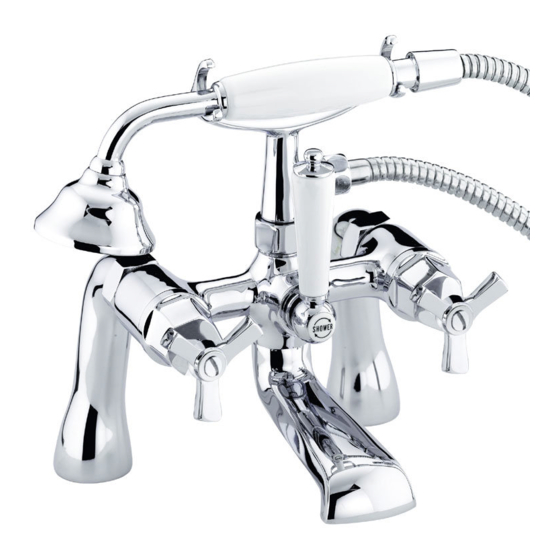

- Page 1 Gracechurch Tap Range Installation Instructions and User Guide Models covered: TGRDC00 Basin Taps TGRDC01 Bath Taps TGRDC02 Bath Shower Mixer Please keep this booklet for future reference. Installer: when you have read these instructions please ensure you leave them with the user.
-
Page 2: Table Of Contents
Contents When you buy a Heritage product, you can be confident that it not only features a beautiful, distinctive, classic design, but that it has also been made to the very highest quality standards. To ensure that it works to its full potential, it needs to be fitted correctly. These fitting instructions have been created to give you all of the information you need and, if you need any further help, please do not hesitate to give us a call on 0844 701 8503. -
Page 3: Important Safety Information
• This product must not be modified in any way as this will invalidate the guarantee. • These fittings need to be installed in accordance with and meet the requirements of the Water Supply (Water Fittings) Regulations 1999 and Scottish Byelaws 2004. General Specifications Operating pressure range (bar) TGRDC00 Basin Taps TGRDC01 Bath Taps TGRDC02 Bath Shower Mixer Maximum Static Pressure –... -
Page 4: Dimensions
Dimensions TGRDC00 Basin Taps G1/2 TGRDC01 Bath Taps G3/4... - Page 5 Dimensions Cont. 1.5m G3/4 TGRDC02 Bath Shower Mixer...
-
Page 6: Installation
Installation 1. Identify all components are present prior to starting installation. 2. Using the washer (10) and backnuts (11) secure the taps to the basin by tightening the backnuts onto the pre-fitted threaded tails (9). A suitable spanner may be required to fully tighten the backnuts (11). -
Page 7: Bath Filler / Bath Shower Mixer
Installation – Bath Shower Mixer Handset Washer Hose Backnut Cradle Assembly Handset Holder Diverter Assembly Screw Elbow Assembly Shroud Pillar Assembly Rawl Plug... - Page 8 Installation – Bath Filler / Bath Shower Mixer Cont. 1. Identify all components are present prior to starting installation. 2. Using the washer (7) and backnuts (8) secure the pillars to the bath by tightening the backnuts onto the pre-fitted threaded tails. A suitable spanner may be required to fully tighten the backnuts (8).
-
Page 9: Maintenance
Maintenance General Cleaning Your fitting has a high quality finish and should be treated with care to preserve the visible surfaces. All finishes will wear if not cleaned correctly. The only safe way to clean your product is to wipe with a soft damp cloth. Stains can be removed using washing up liquid. All bathroom cleaning products (powders and liquids) will damage the surface of your fitting, even the non- scratch cleaners. - Page 10 Maintenance Cont. Cleaning the Valves Indice If your fitting begins to leak the following should be carried out; Screw & Washer Isolate both hot and cold water supplies to the tap by either: Handle • Turning the water supply off at the mains stopcock or Shroud •...
-
Page 11: Map Of Hard Water Regions
Map of Hard Water Regions Soft to Hard to very hard moderately soft Above 200mg/l as 0 - 100mg/l as calcium carbonate calcium carbonate equivalent equivalent Slightly hard to moderately hard 100 - 200mg/l as calcium carbonate equivalent... -
Page 12: Troubleshooting
Troubleshooting Symptom Cause Remedy No flow or poor flow Partially closed stop or service Open stop or service valve. rate. valve in water supply pipework to the tap. Head of water is below the Refer to the Specification section minimum distance required. for minimum pressures required. -
Page 13: Guarantee
Heritage Bathrooms Guarantee When you buy a Heritage product, you can be confident that it not only features distinctive design, but that it has also been made to meet our rigorous quality standards. We offer robust guarantees and an attentive aftercare service to ensure that if you do experience any issues, we can deal with a problem quickly, and effectively. - Page 14 Heritage Bathrooms Guarantee Cont. The guarantee does not cover: Damage or defects caused by General wear and tear (including special non-chrome finishes; components such as filters, seals, ‘O’ rings and washers) Incorrect installation Repair using non-Heritage parts Accidental or wilful misuse Corrosion and the use of inappropriate cleaning products.
-
Page 15: Notes
Notes Please use this space to add any notes which you or your installer may have regarding the plumbing, installation, and/or servicing of this product:... - Page 16 Heritage Bathrooms Birch Coppice Business Park Dordon Tamworth B78 1SG Website: www.heritagebathrooms.com Telephone: 0844 701 8503 Email: technical@heritagebathrooms.com HFI (GRACECHURCH-BAS/BATH) REV. D1...
