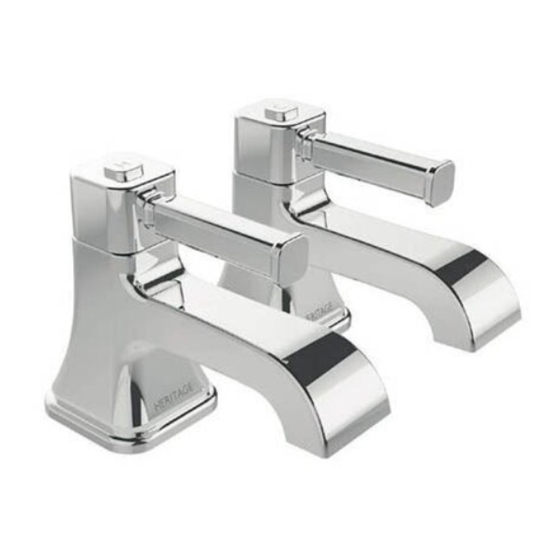

- Page 1 Somersby Tap Range Installation Instructions and User Guide Models covered: TSBC00 Basin Taps TSBC01 Bath Taps Please keep this booklet for future reference. Installer: when you have read these instructions please ensure you leave them with the user.
-
Page 2: Table Of Contents
Contents When you buy a Heritage product, you can be confident that it not only features a beautiful, distinctive, classic design, but that it has also been made to the very highest quality standards. To ensure that it works to its full potential, it needs to be fitted correctly. These fitting instructions have been created to give you all of the information you need and, if you need any further help, please do not hesitate to give us a call on 0844 701 8503. -
Page 3: Important Safety Information
Safety Note • Please read these instructions & retain for future use. All products manufactured & supplied by Heritage are safe, provided they are installed correctly, used correctly, and receive regular maintenance in accordance with these instructions. • If you are in any doubt about your ability to install this product safely you must employ the services of an experienced, qualified plumber. -
Page 4: Dimensions
Dimensions Basin Taps (TBC00) G1/2” Bath Taps (TBC01) G3/4”... -
Page 5: Installation
Installation Indice Handle Screw Lever Handle Spline Adapter Valve Tap Body Plinth Rubber ‘O’ Ring Rubber Washer Backnut Locking Pin Anti-Splash 1. Identify all components are present prior to starting installation. 2. Ensure that the rubber ‘O’ ring (8) is fitted to the underside of the plinth (7); slide onto the threaded tail and install the taps to the basin. -
Page 6: Maintenance
Maintenance General Cleaning Your fitting has a high quality finish and should be treated with care to preserve the visible surfaces. All finishes will wear if not cleaned correctly. The only safe way to clean your product is to wipe with a soft damp cloth. Stains can be removed using washing up liquid. All bathroom cleaning products (powders and liquids) will damage the surface of your fitting, even the non- scratch cleaners. - Page 7 Maintenance cont. Cleaning the Valves Within The Side Bodies We advise that your fitting is regularly serviced in hard water areas to maintain optimum performance; see map of Hard Water Regions on page 07. If your fitting begins to leak the following should be carried out;...
-
Page 8: Map Of Hard Water Regions
Map of Hard Water Regions Soft to Hard to very hard moderately soft Above 200mg/l as 0 - 100mg/l as calcium carbonate calcium carbonate equivalent equivalent Slightly hard to moderately hard 100 - 200mg/l as calcium carbonate equivalent... -
Page 9: Troubleshooting
Troubleshooting Symptom Cause Remedy No flow or poor flow rate. Partially closed stop or service valve in Open stop or service valve. water supply pipework to the tap. Head of water is below the minimum Refer to the Specification section for distance required. -
Page 10: Guarantee
Heritage Bathrooms Guarantee When you buy a Heritage product, you can be confident that it not only features distinctive design, but that it has also been made to meet our rigorous quality standards. We offer robust guarantees and an attentive aftercare service to ensure that if you do experience any issues, we can deal with a problem quickly, and effectively. - Page 11 Heritage Bathrooms Guarantee Cont. The guarantee does not cover: Damage or defects caused by General wear and tear (including special non-chrome finishes; components such as filters, seals, ‐ ‘O’ rings and washers) Incorrect installation ‐ Repair using non-Heritage parts ‐...
