Flight Display Systems FD70ARM-G Installation And Operation Manual

7 inch dual lcd system

Advertisement

Quick Links

All manuals and user guides at all-guides.com
Document Number:
Rev:
Revision Date:
04/11/2011
D
MAN – FD70ARM-G
Page 1 of 18
FD70ARM-G
Installation and Operation Manual
7 Inch Dual LCD System
TECHNICAL SUPPORT
678-867-6717, or
www.FlightDisplay.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FD70ARM-G and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Flight Display Systems FD70ARM-G

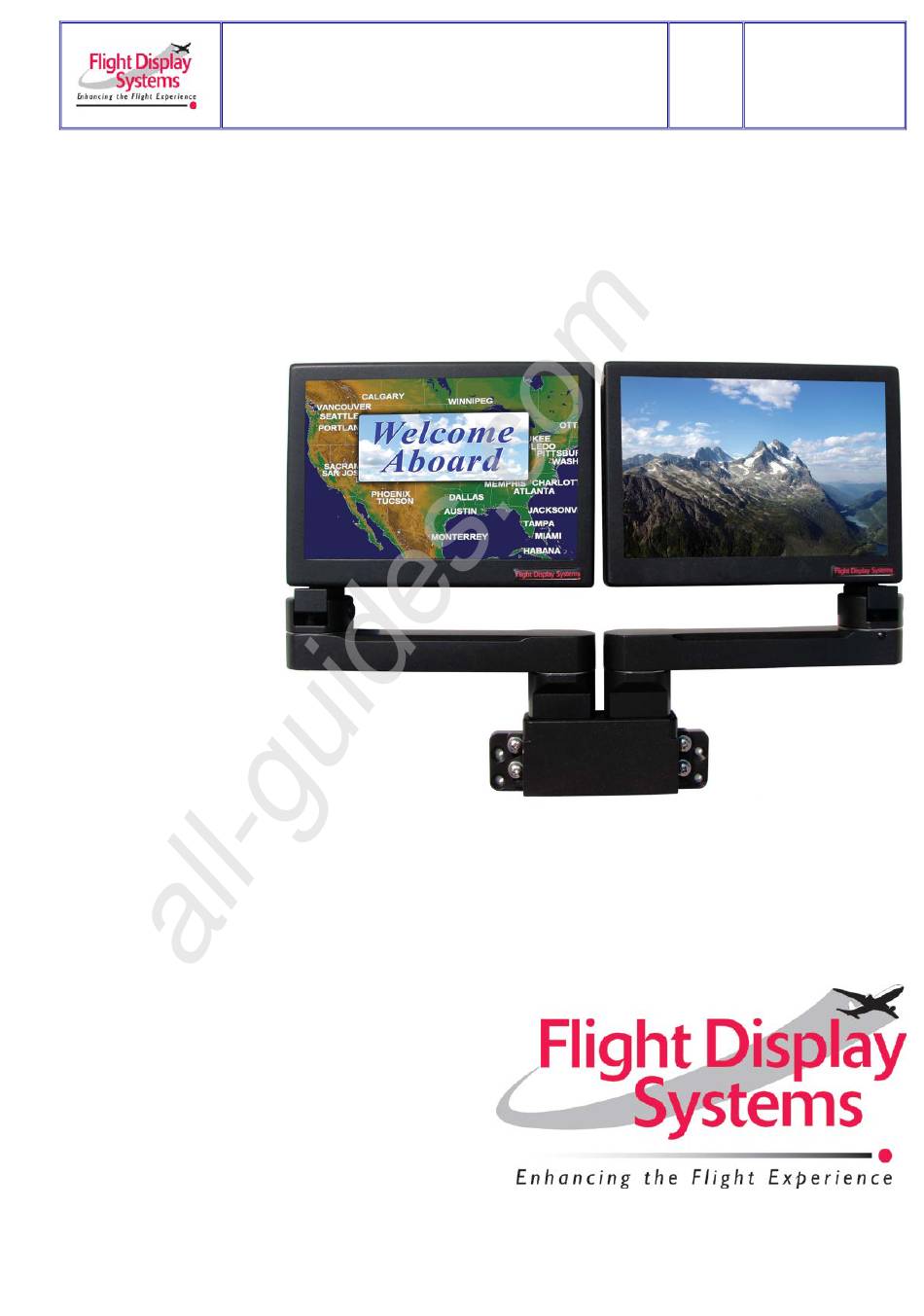

  • Page 1 All manuals and user guides at all-guides.com Document Number: Rev: Revision Date: 04/11/2011 MAN – FD70ARM-G Page 1 of 18 FD70ARM-G Installation and Operation Manual 7 Inch Dual LCD System TECHNICAL SUPPORT 678-867-6717, or www.FlightDisplay.com...
  • Page 2 Document Number: Rev: Revision Date: 04/11/2011 MAN – FD70ARM-G Page 2 of 18 FD70ARM-G 7" Dual LCD System © 2006 Flight Display Systems. All Rights Reserved. Flight Display Systems 1765 Grassland Parkway Alpharetta, GA 30004 678-867-6717 Phone 678-867-6742 Fax sales@flightdisplay.com www.flightdisplay.com For the most current copy of all product manuals, please visit our website at www.flightdisplay.com...
  • Page 3: Table Of Contents

    All manuals and user guides at all-guides.com Document Number: Rev: Revision Date: 04/11/2011 MAN – FD70ARM-G Page 3 of 18 Table of Contents General Information ........................4 1. Front View ..........................4 2. Additional Information ....................4 Specifications ..........................5 Installation Instructions ......................5 1. Power ..........................5 Wiring Instructions ........................7...
  • Page 4: General Information

    Page 4 of 18 General Information The FD70ARM-G is a 7" Dual LCD System, utilizing the latest version of our popular 7” Widescreen Display. Each arm unit is made of two separate parts, the metal enclosed LCD screen and the articulating arm.
  • Page 5: Specifications

    Section 21, Category B Installation Instructions All cabin entertainment equipment, such as the FD70ARM-G, should be installed on a non-essential bus and have a dedicated circuit breaker. It is a requirement that a switch be installed in the cockpit so that the pilot can de-energize the entertainment system should it become necessary.
  • Page 6 All manuals and user guides at all-guides.com Document Number: Rev: Revision Date: 04/11/2011 MAN – FD70ARM-G Page 6 of 18...
  • Page 7: Wiring Instructions

    All manuals and user guides at all-guides.com Document Number: Rev: Revision Date: 04/11/2011 MAN – FD70ARM-G Page 7 of 18 Video Wiring Suggestions All shields should be grounded to the connector at the source, and floating at the display. Avoid routing video wiring parallel to: •...
  • Page 8: Vga Wiring

    Document Number: Rev: Revision Date: 04/11/2011 MAN – FD70ARM-G Page 8 of 18 VGA Wiring Recommended cable for VGA purpose is ECS P/N 453005. This is a single shielded cable containing 5 separate coaxial cables, color-coded to match the functions of the wires.
  • Page 9: Power & Ground Wiring

    Document Number: Rev: Revision Date: 04/11/2011 MAN – FD70ARM-G Page 9 of 18 Power and Ground Wiring This is a 28VDC monitor that requires 1.5 amps of power to operate. To operate properly this monitor requires an input voltage of 18-29VDC.
  • Page 10: Power/Video

    All manuals and user guides at all-guides.com Document Number: Rev: Revision Date: 04/11/2011 MAN – FD70ARM-G Page 10 of 18 Pinout for High Density DB-15 Receptacle Connector P/N: M24308/2-286 or Equivalent Crimp Contacts P/N: M39029/57-354 or Equivalent Description Number 12-28VDC Power...
  • Page 11 All manuals and user guides at all-guides.com Document Number: Rev: Revision Date: 04/11/2011 MAN – FD70ARM-G Page 11 of 18 For Use with the Select CMS Supplied mounted in Arm Mount Connector P/N: M24308/2-286 or Equivalent Crimp Contacts P/N: M39029/57-354 or Equivalent...
  • Page 12 All manuals and user guides at all-guides.com Document Number: Rev: Revision Date: 04/11/2011 MAN – FD70ARM-G Page 12 of 18 Pin out for P1 (5W1 Combo-D Female Receptacle) Supplied, mounted in FDBASE Ver SDI Connector P/N: Conec – 3005W1SM99A10X Coax Contact P/N: Conec –...
  • Page 13: Operations Instructions

    Page 13 of 18 Operation Instructions The FD70ARM-G is continuously on but can be de-energized by removing power from the entertainment system. No pilot or aircrew action is necessary during flight or ground operation. Passengers can change the video output from the FD70ARM-G using the video source select switch on the LCD monitor, or remotely throughout the cabin with the included IR remotes.
  • Page 14: Technical Drawing

    All manuals and user guides at all-guides.com Document Number: Rev: Revision Date: 04/11/2011 MAN – FD70ARM-G Page 14 of 18 Technical Drawing...
  • Page 15: Troubleshooting

    All manuals and user guides at all-guides.com Document Number: Rev: Revision Date: 04/11/2011 MAN – FD70ARM-G Page 15 of 18 Troubleshooting Video Noise Check for an incorrect ground in the installation wiring. See specific examples of video noise below, or visit http://flightdisplay.com/Grounding.pdf...
  • Page 16: Technical Support

    04/11/2011 MAN – FD70ARM-G Page 16 of 18 Technical Support Should you have any questions concerning this product or other Flight Display Systems products, please contact our Product Support representatives at (678) 867-6717. Flight Display Systems 1765 Grassland Parkway Alpharetta, GA 30004...
  • Page 17: Instructions For Continued Airworthiness

    If the return of the unit to the factory is required, an RMA number will be issued at that time. Flight Display Systems will, upon receipt of the failed hardware, remanufacture or replace the unit at our discretion.
  • Page 18: Log Of Revisions

    MAN – FD70ARM-G Page 18 of 18 Log of Revisions Date Page Description 09/12/2007 02/26/2009 2,10 Updated specifications, warranty info 01/08/2010 1,2,5,6,7,11 Update picture, specs, pinout, monitor buttons, assembly drawing 04/11/2011 Added pinout for FD70ARM-G Ver SDI, updated VGA wiring...
