- Page 1 All manuals and user guides at all-guides.com Rev: Revision Date: 05/23/2014 MAN – FD201CV-LP VER HD Page 1 of 21 FD201CV-LP VER HD Installation and Operation Manual 20.1” High-Definition Low-Profile Widescreen LCD TECHNICAL SUPPORT 470-239-7421, or www.FlightDisplay.com...
- Page 2 05/23/2014 MAN – FD201CV-LP VER HD Page 2 of 21 FD201CV-LP VER HD 20.1" High-Definition Low-Profile Widescreen LCD © 2014 Flight Display Systems. All Rights Reserved. Flight Display Systems 6435 Shiloh Road, Suite D Alpharetta, GA 30005 678-867-6717 Phone 678-867-6742 Fax sales@FlightDisplay.com...
-
Page 3: Table Of Contents
All manuals and user guides at all-guides.com Rev: Revision Date: 05/23/2014 MAN – FD201CV-LP VER HD Page 3 of 21 Table of Contents General Information ........................4 1. Front View ........................4 2.Additional Information ....................4 Specifications ..........................5 Installation Instructions ......................5 1. Power ..........................5 Wiring Instructions ........................6... -
Page 4: General Information

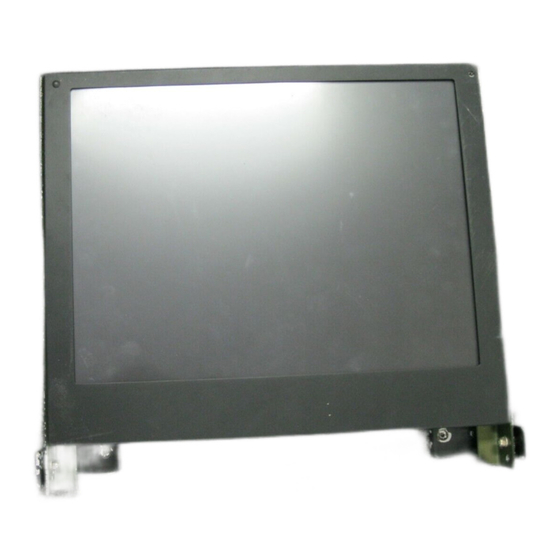

Front View Additional Information The FD201CV-LP VER HD utilizes a state of the art digital video decoding chipset for the analog video input. There are FIVE video source inputs available. They are in order of picture quality: (2)HDMI (Hi-Def video, such as Blu-Ray DVD or Playstation 3), (1)VGA (computer graphics like Moving Maps), (1) S-Video and (1) Composite Video (DVD, camera or VCR). -
Page 5: Specifications
255x255 Installation Instructions All cabin entertainment equipment, such as the FD201CV-LP VER HD, should be installed on a non-essential bus and have a dedicated circuit breaker. It is a requirement that a switch be installed in the cockpit so that the pilot can de-energize the entertainment system should it become necessary. -
Page 6: Wiring Instructions
All manuals and user guides at all-guides.com Rev: Revision Date: 05/23/2014 MAN – FD201CV-LP VER HD Page 6 of 21 Wiring Suggestions All shields should be grounded to the connector at the source, and floating at the display. Avoid routing video wiring parallel to: ... -
Page 7: Vga Wiring
All manuals and user guides at all-guides.com Rev: Revision Date: 05/23/2014 MAN – FD201CV-LP VER HD Page 7 of 21 VGA Wiring Recommended cable for VGA purpose is ECS P/N 453005. This is a single shielded cable containing 5 separate coaxial cables, color-coded to match the functions of the wires. -
Page 8: Rs485 Wiring
All manuals and user guides at all-guides.com Rev: Revision Date: 05/23/2014 MAN – FD201CV-LP VER HD Page 8 of 21 Coax cables should be terminated using solder sleeve coaxial cable terminators, Raychem P/N: CWT-4174-W122-5/9 RS-485 Wiring Shielded twisted-pair 22 AWG wire is recommended for RS-485 wiring. -
Page 9: Hdmi
All manuals and user guides at all-guides.com Rev: Revision Date: 05/23/2014 MAN – FD201CV-LP VER HD Page 9 of 21 HDMI HDMI (High-Definition Multimedia Interface) defines the protocol and electrical specifications for the signaling, pin-out, electrical, and mechanical requirements of cable and connectors used for transmitting High-Definition content. -
Page 10: Power/Video
All manuals and user guides at all-guides.com Rev: Revision Date: 05/23/2014 MAN – FD201CV-LP VER HD Page 10 of 21 Power/Video Pin out for P1 (High Density DB-15 Receptacle) Connector P/N: M24308/2-286 or Equivalent Crimp Contacts P/N: M39029/57-354 or Equivalent... -
Page 11: Rs485 Control
All manuals and user guides at all-guides.com Rev: Revision Date: 05/23/2014 MAN – FD201CV-LP VER HD Page 11 of 21 RS-485 Control RS485 is a two-wire communication interface that allows an external device such as a computer or switching unit to control the monitor’s functions remotely. Up to 99 monitors can be separately controlled by one unit. -
Page 12: Command Sets
All manuals and user guides at all-guides.com Rev: Revision Date: 05/23/2014 MAN – FD201CV-LP VER HD Page 12 of 21 Command sets for controlling the monitors with serial numbers starting w/ 12XXXXXXXX (10 digits) and above: Commands Length Index Set ID... -
Page 13: Rs485 Network
All manuals and user guides at all-guides.com Rev: Revision Date: 05/23/2014 MAN – FD201CV-LP VER HD Page 13 of 21 RS-485 Network: If there is more than one monitor connected to the aircraft’s RS-485 controller system, then it is strongly recommended to connect the system in series, or daisy-chain, and terminate the twisted pairs with a 120 OHM resistor. -
Page 14: Operations Instructions
No pilot or aircrew action is necessary during flight or ground operation. The passengers will be able to change the video output from the FD201CV-LP VER HD using the video source select button on the display, or remotely with the included IR remote. Point the IR remote at the top of the LCD to make changes. - Page 15 All manuals and user guides at all-guides.com Rev: Revision Date: 05/23/2014 MAN – FD201CV-LP VER HD Page 15 of 21 Remote Control Buttons Refer to Button Controls on previous page.
-
Page 16: Technical Drawing
All manuals and user guides at all-guides.com Rev: Revision Date: 05/23/2014 MAN – FD201CV-LP VER HD Page 16 of 21 Technical Drawing... - Page 17 All manuals and user guides at all-guides.com Rev: Revision Date: 05/23/2014 MAN – FD201CV-LP VER HD Page 17 of 21...
-
Page 18: Troubleshooting
All manuals and user guides at all-guides.com Rev: Revision Date: 05/23/2014 MAN – FD201CV-LP VER HD Page 18 of 21 Troubleshooting Video Noise Check for an incorrect ground in the installation wiring. See specific examples of video noise below, or visit http:/FlightDisplay.com/Grounding.pdf... -
Page 19: Technical Support
MAN – FD201CV-LP VER HD Page 19 of 21 Technical Support Should you have any questions concerning this product or other Flight Display Systems products, please contact our Product Support representatives at (470) 239-7421. Flight Display Systems 6435 Shiloh Road, Suite D... - Page 20 If the return of the unit to the factory is required, an RMA number will be issued at that time. Flight Display Systems will, upon receipt of the failed hardware, remanufacture or replace the unit at our discretion.
- Page 21 All manuals and user guides at all-guides.com Rev: Revision Date: 05/23/2014 MAN – FD201CV-LP VER HD Page 21 of 21 Log of Revisions Date Page Description 06/17/2008 07/14/2008 8-10 Added additional information about RS485 Serial Port 07/23/2008 12 Added remote control button image...
