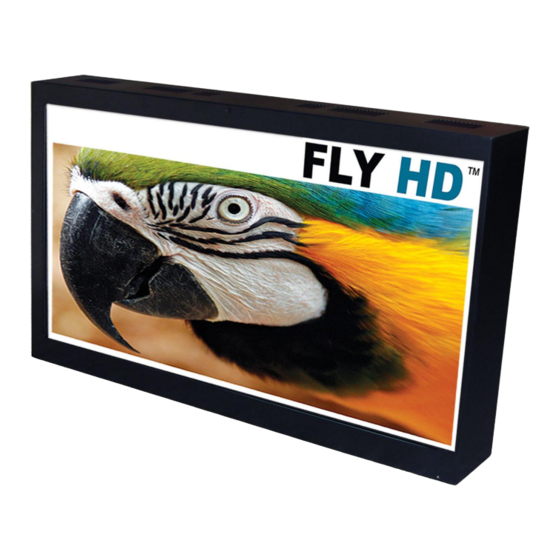

FD320CV Ver HD
Installation and Operation Manual
32" High-Definition Widescreen LCD
TECHNICAL SUPPORT
678-867-6717, or
www.FlightDisplay.com

Advertisement

Table of Contents
loading

Summary of Contents for Flight Display Systems FD320CV Ver HD

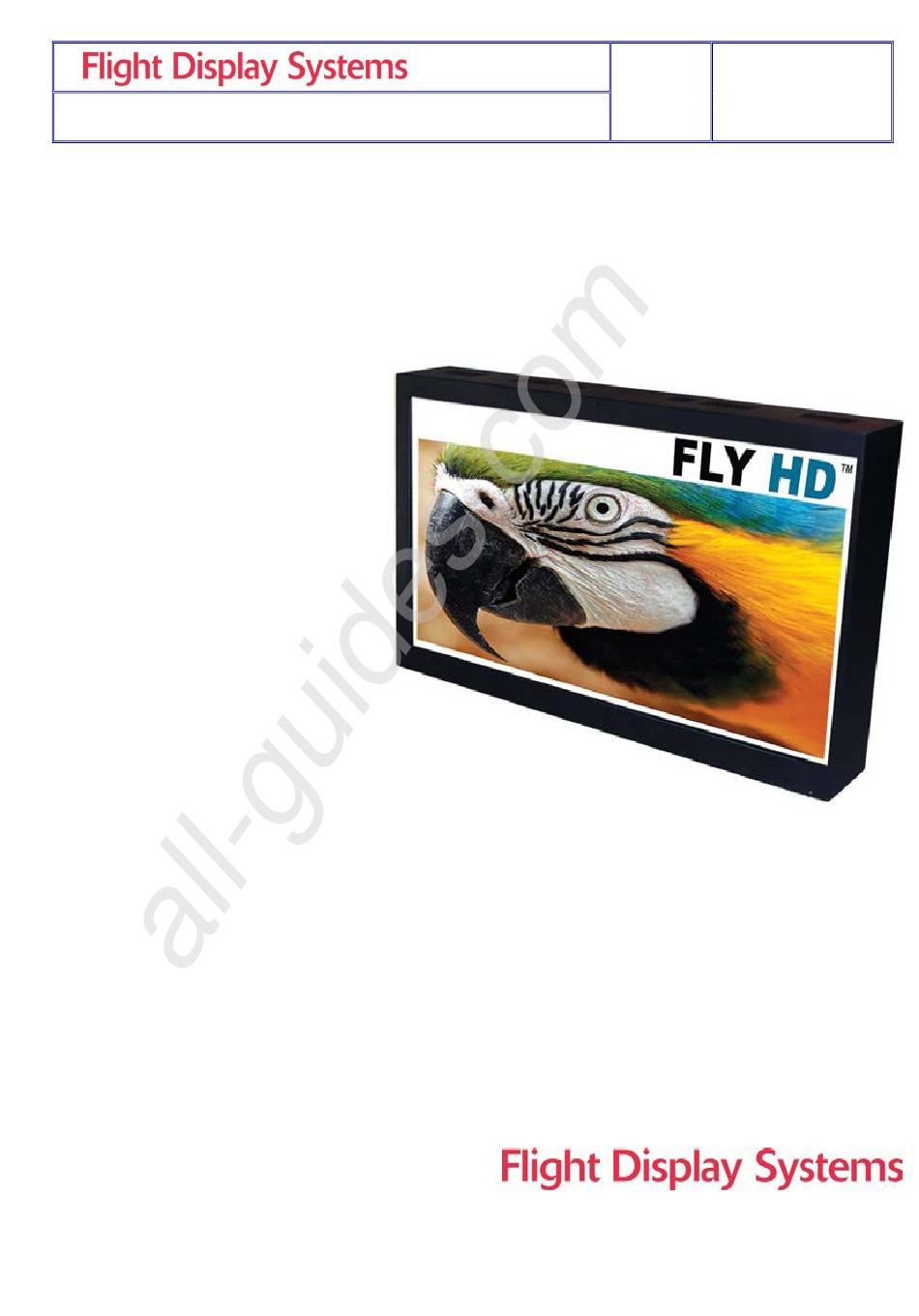

  • Page 1 All manuals and user guides at all-guides.com Rev: Revision Date: 11/05/2012 MAN – FD320CV Ver HD Page 1 of 22 FD320CV Ver HD Installation and Operation Manual 32” High-Definition Widescreen LCD TECHNICAL SUPPORT 678-867-6717, or www.FlightDisplay.com...
  • Page 2 Revision Date: 11/05/2012 MAN – FD320CV Ver HD Page 2 of 22 FD320CV Ver HD 32” High-Definition Widescreen LCD © 2008 Flight Display Systems. All Rights Reserved. Flight Display Systems 1765 Grassland Parkway Alpharetta, GA 30004 678-867-6717 Phone 678-867-6742 Fax sales@flightdisplay.com...
  • Page 3: Table Of Contents

    All manuals and user guides at all-guides.com Rev: Revision Date: 11/05/2012 MAN – FD320CV Ver HD Page 3 of 22 Table of Contents General Information ........................4 1. Front View ..........................4 2. Additional Information ....................4 Specifications ..........................5 Installation Instructions ......................5 1. Rear Connector Orientation ....................6 2.
  • Page 4: General Information

    Front View Additional Information The FD320CV Ver HD utilizes a state of the art digital video decoding chipset for the analog video input. There are FIVE video source inputs available. They are in order of picture quality: (2)HDMI (Hi-Def video, such as Blu-Ray DVD or Playstation 3), (1)VGA (computer graphics like Moving Maps), (1) S-Video and (1) Composite Video (DVD, camera or VCR).
  • Page 5: Specifications

    170.5 x 510.5 Installation Instructions All cabin entertainment equipment, such as the FD320CV Ver HD, should be installed on a non-essential bus and have a dedicated circuit breaker. It is a requirement that a switch be installed in the cockpit so that the pilot can de-energize the entertainment system should it become necessary.
  • Page 6: Rear Connector Orientation

    All manuals and user guides at all-guides.com Rev: Revision Date: 11/05/2012 MAN – FD320CV Ver HD Page 6 of 22 Rear Connector Orientation – The rear connector of this monitor can be mounted horizontally (connector perpendicular to rear of monitor) or vertically (connector perpendicular to bottom of monitor) in order to give you the most convenient mounting options.
  • Page 7: Wiring Instructions

    All manuals and user guides at all-guides.com Rev: Revision Date: 11/05/2012 MAN – FD320CV Ver HD Page 7 of 22 Wiring Suggestions All shields should be grounded to the connector at the source, and floating at the display. Avoid routing video wiring parallel to: ...
  • Page 8: Vga Wiring

    All manuals and user guides at all-guides.com Rev: Revision Date: 11/05/2012 MAN – FD320CV Ver HD Page 8 of 22 VGA Wiring Recommended cable for VGA purpose is ECS P/N 453005. This is a single shielded cable containing 5 separate coaxial cables, color-coded to match the functions of the wires.
  • Page 9: Hdmi

    All manuals and user guides at all-guides.com Rev: Revision Date: 11/05/2012 MAN – FD320CV Ver HD Page 9 of 22 RS-485 Wiring Shielded twisted-pair 22 AWG wire is recommended for RS-485 wiring. HDMI HDMI (High-Definition Multimedia Interface) defines the protocol and electrical specifications for the 9ignalling, pin-out, electrical, and mechanical requirements of cable and connectors used for transmitting High-Definition content.
  • Page 10: Power & Ground Wiring

    All manuals and user guides at all-guides.com Rev: Revision Date: 11/05/2012 MAN – FD320CV Ver HD Page 10 of 22 Power and Ground Wiring This is a 28VDC monitor that requires 6.6 Amps of power to operate. The rated current of the equipment and associated voltage drop should be taken into consideration when selecting wire gauge.
  • Page 11: Power/Video

    All manuals and user guides at all-guides.com Rev: Revision Date: 11/05/2012 MAN – FD320CV Ver HD Page 11 of 22 Power/Video Pin out for DB-25 Receptacle Connector P/N: M24308/2-283 or Equivalent Crimp Contacts P/N: M39029/63-368 or Equivalent Description Number 28VDC Power...
  • Page 12: Command Sets For Controlling The Monitor

    All manuals and user guides at all-guides.com Rev: Revision Date: 11/05/2012 MAN – FD320CV Ver HD Page 12 of 22 Command sets for controlling the monitors with serial numbers starting w/ 11XXXXXXXX(10 digits) and below: Below are the command sets to control the power, source selection, and backlight brightness. The 13 characters below are shown in hexadecimal.
  • Page 13: Command Sets For Controlling The Monitor

    All manuals and user guides at all-guides.com Rev: Revision Date: 11/05/2012 MAN – FD320CV Ver HD Page 13 of 22 Command sets for controlling the monitors with serial numbers starting w/ 12XXXXXXXX(10 digits) and above: Commands Length Index Set ID...
  • Page 14: Rs-485 Network

    All manuals and user guides at all-guides.com Rev: Revision Date: 11/05/2012 MAN – FD320CV Ver HD Page 14 of 22 RS-485 Network If there is more than one monitor connected to the aircraft’s RS-485 controller system, then it is strongly recommended to connect the system in series, or daisy-chain, and terminate the twisted pairs with a 120 OHM resistor.
  • Page 15: Operations Instructions

    No pilot or aircrew action is necessary during flight or ground operation. The passengers will be able to change the video output from the FD320CV Ver HD using the video source button on the display, or remotely with the included IR remote. Point the IR remote at the top of the LCD to make changes.
  • Page 16: Remote Control Buttons

    All manuals and user guides at all-guides.com Rev: Revision Date: 11/05/2012 MAN – FD320CV Ver HD Page 16 of 22 Remote Control Buttons BUTTON DESCRIPTION POWER Toggles the power ON or OFF. Also, wakes the display up from SLEEP mode.
  • Page 17: Troubleshooting

    All manuals and user guides at all-guides.com Rev: Revision Date: 11/05/2012 MAN – FD320CV Ver HD Page 17 of 22 Technical Drawing...
  • Page 18 All manuals and user guides at all-guides.com Rev: Revision Date: 11/05/2012 MAN – FD320CV Ver HD Page 18 of 22...
  • Page 19: Troubleshooting

    All manuals and user guides at all-guides.com Rev: Revision Date: 11/05/2012 MAN – FD320CV Ver HD Page 19 of 22 Troubleshooting Video Noise Check for an incorrect ground in the installation wiring. See specific examples of video noise below, or visit http://flightdisplay.com/Grounding.pdf...
  • Page 20: Technical Support

    MAN – FD320CV Ver HD Page 20 of 22 Technical Support Should you have any questions concerning this product or other Flight Display Systems products, please contact our Product Support representatives at (678) 867-6717. Flight Display Systems 1765 Grassland Parkway...
  • Page 21: Warranty

    If the return of the unit to the factory is required, an RMA number will be issued at that time. Flight Display Systems will, upon receipt of the failed hardware, remanufacture or replace the unit at our discretion.
  • Page 22: Log Of Revisions

    All manuals and user guides at all-guides.com Rev: Revision Date: 11/05/2012 MAN – FD320CV Ver HD Page 22 of 22 Log of Revisions Date Page Description 07/28/2008 Initial Release 08/11/2008 3,11 Updated weight, Changed remote control image & added chart...
