Summary of Contents for Sole Diesel MINI-62

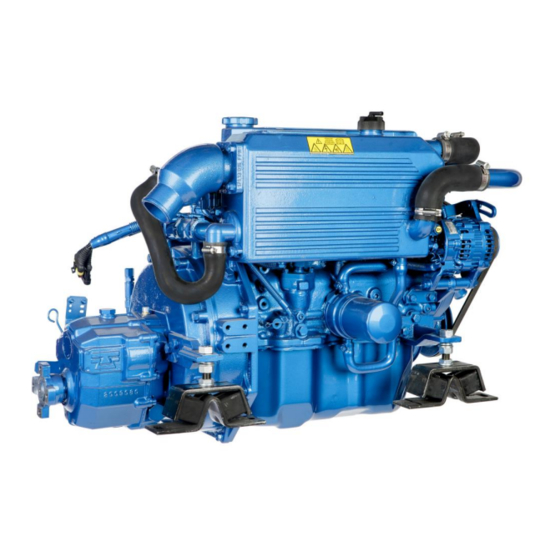

- Page 1 Solé Diesel, S.A. C-24 Manual Marine diesel engines Operator’s manual MINI-62 MINI-103 U_CTMT62103_EN Revision 1...
-
Page 3: Introduction
Introduction Introduction Presentation Dear Customer, First of all, we would like to thank you for choosing a Solé Diesel product. We recommend that you read this manual carefully before carrying out any of the operations and keep it close at hand, near the engine, as it can be of great use in the future. -
Page 4: Table Of Contents
Table of contents Table of contents Introduction 3 Table of contents ..........................4 Safety precautions and instructions ..................... 6 Solé Diesel warranty ..........................9 Section 1 – Engine information ......................12 1.1. Engine Identification ....................... 12 1.2. Engine parts identification...................... 13 Section 2 –... - Page 5 Table of contents 5.6. Cooling system ........................29 Coolant specifications ................................29 Maintenance task. Coolant check ............................29 Maintenance task. Coolant fill/change ..........................30 Maintenance task. Seawater filter inspection ........................30 Maintenance task. Seawater pump impeller inspection ...................... 30 Maintenance task. Zinc anode inspection ..........................31 5.7.
-
Page 6: Safety Precautions And Instructions
Safety precautions and instructions Safety precautions and instructions Solé Diesel is concerned for your safety and your machine’s condition. Safety Precautions and Instructions are one of the primary ways to call your attention to the potential hazards associated with our engine operation. Follow the precautions listed throughout the manual before and during operation and maintenance procedures for your safety, the safety of others and the performance of your engine. - Page 7 Safety precautions and instructions Engine exhaust gases contains carbon monoxide gas. Carbon monoxide is an odourless, colourless, tasteless, no irritating gas that can cause death if inhaled for even a short time. Get fresh air and do not sit, lie down or fall asleep if anyone shows signs of carbon monoxide poisoning: Light-headedness, dizziness Physical fatigue, weakness in joints and muscles.
- Page 8 Safety precautions and instructions Engine labels If the engine does not start after several attempts to crank may cause water entering the engine. In this situation it is recommended: 1) Close the seacock. 2) Drain the water from the exhaust system in the water trap.
-
Page 9: Solé Diesel Warranty
Solé Diesel Warranty Solé Diesel warranty Read the manual and documents delivered with each engine before carrying out any of the operations or presenting any queries. The engine is supplied without any liquids. Ensure that the liquids used match the specifications contained in Solé Diesel manuals. The application of the conditions described in this document shall only be effective for engines or generator sets that have been invoiced after November 4, 2011. - Page 10 Solé Diesel Warranty Restrictions Coverage: a) To validate the warranty is necessary fill and send the inspection prior to the delivery of propulsion engines or genset to Solé Diesel through an official installer. See SECTION 12. b) The warranty covers any failure of the product under normal opera- ting conditions caused by a defect in manufacturing.
- Page 11 Solé Diesel Warranty Responsibilities Responsibilities of the manufacturer: The obligations of Solé Diesel are restricted to repairing the defective parts or, IF DEEMED APPROPRIATE BY SOLÉ DIESEL, returning the amount of the purchase or replacing the parts to prevent poor operation resulting from defective materials or faults in the manufacture covered by the warranty. Solé...
-
Page 12: Section 1 - Engine Information
Engine information Section 1 – Engine information 1.1. Engine Identification Identification label: The nameplate is located above the rocker cover. Engine serial number: In addition, all engines are marked with the serial number on the block. Solé, S.A. C-243 b, km 2 · 08760 Martorell (Barcelona) ·Tel. +34 93 775 14 00 · www.solediesel.com · info@solediesel.com Marine diesel engines. -
Page 13: Engine Parts Identification
Engine information 1.2. Engine parts identification PIECE ELEMENT PIECE ELEMENT Oil filter Oil filler cap Oil dipstick Alternator Oil drainage tube Cooling system Injection pump Cooling filler cap Seawater pump Cooling drain plug Elbow, wet exhaust Fuel filter Silent block Starter Turbocharger Air filter... -
Page 14: Section 2 - Transport, Handling And Storage
Transport, handling and storage Section 2 – Transport, handling and storage 2.1. Reception When the engine is delivered make sure that the packing has not been damaged during transport and that it has not been tampered with or that components inside the packing have been removed (see information marked on covers, bases and cartons). -
Page 15: Transporting And Handling The Unpacked Engine
Transport, handling and storage 2.3. Transporting and handling the unpacked Engine When the engine is unpacked and ready for transport, use EXCLUSIVELY the appropriate lifting eyebolts. 2.4. Storage of packed and unpacked engine If the engine is left idle for prolonged periods, the client must check the possible conditions of conservation in relation to the place of storage. -
Page 16: Section 3 - Installation
Section 3 - Installation 3.1. Angle of installation Make sure the engine is installed on a level surface. Otherwise, the following angular operation maximum is permitted: Continuously Temporaly MINI-62 15º 20º (Max. 30 min.) SM-103 15º 30º (Max. 30 min.) If the engine operates in these conditions, check Section 5.4 Lubrication System. -
Page 17: Section 4 - Operation
Operation Section 4 - Operation 4.1. Prestart checklist Follow these checks and inspections to ensure the correct engine operation. In addition, some checks require verification after unit starts. AIR CLEANER: Check for a clean and installed air cleaner element to prevent unfiltered air from entering the engine. -
Page 18: Stopping Engine
Operation 4.3. Stopping engine 1. REMOVE ENGINE LOAD. Before turning off the engine, it must be freed of all charges (disengaged gearbox to neutral) 2. TURN THE KEY TO STOP POSITION. The key automatically returns to the OFF position. All instruments are off. 3. -
Page 19: Winterization And Preservation
Operation 4.5. Winterization and preservation If the boat is not going to be used for a long period of time or during the winter, certain tasks must be carried out to keep it in perfect operating condition. Follow the steps indicated below carefully: 1. -
Page 20: Section 5 - Systems And Scheduled Maintenance
Systems and scheduled maintenance Section 5 – Systems and scheduled maintenance 5.1. Safety and prevention Information of special tools required and basic safety precautions. Disassembly: ✓ Use the correct tools and instruments. Serious injury or damage to the engine can result from using the wrong tools and instruments. - Page 21 Systems and scheduled maintenance Intervals Every Every Every Every 2 Winter storage and Inspection Item Daily 1st 20h-50h Every year 200h 400h 800h years Preservation Screw tightening, fastening. Engine block. General Valve clearance. Exhaust gas, noise and vibrations. Compression pressure. Lubrication Genset oil.
-
Page 22: General
Injection sequence Crank angle MINI-62 1 – 3 - 4 - 2 180º SM-103 1 – 5 – 3 – 6 – 2 - 4 120º... -
Page 23: Maintenance Task. Compression Pressure Inspection
4. If the compression pressure is lower than repair limit, check the engine parts affected. Engine speed Compression pressure Repair limit MINI-62 150 - 200 rpm 2,94 MPa (30 kgf/cm 2.55 MPa (26 kgf/cm SM-103 300 rpm 2,9MPa (30 kgf/cm 2.6 MPa (27 kgf/cm... -
Page 24: Lubrication System
Piston Fuel injection pump Oil circuit capacity (l)* *Including filter change (0,5l) MINI-62 SM-103 Oil specifications Use oil with 15W40 viscosity (this is an all-season oil for temperatures ranging between -15ºC and +40ºC) or select the most suitable oil viscosity for the atmospheric temperatures on which the engine is going to be operated. -
Page 25: Maintenance Task. Oil Filter Change
H: maximum level that marks the rod L: minimum level that marks the rod E: Adjustment of the maximum level according to the inclination of the motor. It can be a positive or negative measure MINI-62 SM-103 4º 8º 16,7 12º... -
Page 26: Maintenance Task. Oil Fill/Change
Systems and scheduled maintenance Maintenance task. Oil fill/Change Oil must be changed with hot engine so as to be sure the oil is fully drained. The procedure is the following: 1. Drain the oil (follow steps below) a. Stop the engine. b. -
Page 27: Maintenance Task. Fuel Level Inspection
Systems and scheduled maintenance Maintenance task. Fuel level inspection Periodically, it is necessary to check the fuel level to assure the operation of the engine. On top of that, if fuel pump sucks air when the fuel level is lower than pump suction, it could break. Whenever possible, keep the fuel tank full. -
Page 28: Maintenance Task. Injector Inspection
Take the gauge reading right then as the injection pressure. Model Injection pressure MINI-62 14,22 a 15 MPa (145 a 153kgf/cm SM-103 18,4 a 19,12 MPa (185 a 195 kgf/cm 5. To adjust the injection pressure, increase or decrease the amount of shims fitted to the nozzle holder. -
Page 29: Cooling System
Heat exchanger Sea water filter Thermostat Sea water pump Heat exchanger Wet exhaust elbow Coolant circuit capacity (l) MINI-62 SM-103 Thermostatic valve Initial opening 76,5ºC Final opening 90ºC Coolant specifications It is recommended use SOLÉ DIESEL 50% coolant or another coolant with similar specifications. -
Page 30: Maintenance Task. Coolant Fill/Change
Systems and scheduled maintenance Maintenance task. Coolant fill/change 1. Drain off all the coolant by opening the two drain plugs, one in the heat exchanger and the other in the cylinder block. 2. Close the drain plugs. 3. Refill to the hole in the tank cap with coolant. Maintenance task. -
Page 31: Maintenance Task. Zinc Anode Inspection
Systems and scheduled maintenance Maintenance task. Zinc anode inspection In order to avoid the corrosion produced by galvanic currents, the engine is fitted with a zinc anode located on the front lid of the coolant- seawater heat exchanger. Anticorrosion zinc anode inspection and replacement: 1. -
Page 32: Maintenance Task. Air Filter Inspection
Maintenance task. Air filter inspection Engine is provided with an intake air filter. Examine the element and housing for damage (only MINI-62). Replace the complete air filter if necessary. It is important to ensure that the combustion air is freely supplied and freely expelled from the area. -
Page 33: Electrical System
Troubleshooting 5.8. Electrical system Control Panel You can find the all information related to the control panel in Control Panel Operator’s Manual of your engine. Function table Sensors and switches Temperature Resistance Tolerance (ºC) (ohm) (ohm) Coolant temperature sensor: 287.4 ±32.8 ±13.5 Operating voltage: 6-24V... -
Page 34: Battery
Systems and scheduled maintenance TEMPERATURE SWITCH: Operating voltage: 12-24V Operating power: 5W Operating temperature: ≤100°C ±4°C (OPEN CIRCUIT), ≥100°C±2°C (CLOSE CIRCUIT) OIL PRESSURE SWITCH: Operating voltage: 12V Operating power: 5W Operating pressure: 0.98bar (CLOSE CIRCUIT) TEMPERATURE SWITCH (TWO POLE) Operating voltage: 6-24V Operating power: Max 100W Operating temperature: 96°C ±3°C (CLOSE CIRCUIT) OIL PRESSURE SWITCH (TWO POLE):... -
Page 35: Relays
Troubleshooting Relays The relays of the electrical installation are located inside the electrical protective box where it is shown in the image. The earth isolated motors have bipolar relays, in the images can see the position. Maintenance task. Incandescent glow plug inspection 1. -
Page 36: Maintenance Task. Battery Level
Systems and scheduled maintenance incorrect, loosen the adjusting bracket bolt and mounting bolt, and move the alternator in or out. Element Assembly Standard V-belt deflection 10-12 mm An excessive tension may cause a quick wear of the belt and alternator bearings. Otherwise, if the belt is excessively loose or has oil and insufficient load, it can cause the belt to skid. -
Page 37: Section 6 - Troubleshooting
Troubleshooting Section 6 - Troubleshooting If a fault occurs in the engine, proceed as follows: ❖ Within the period of warranty • Contact to Solé Diesel Official Service. See SOLÉ DIESEL WARRANTY ❖ Outside the period of warranty • Contact to Solé Diesel Official Service. See SOLÉ DIESEL WARRANTY. •... - Page 38 Troubleshooting ENGINE FAILURE SYSTEM PROBABLE CAUSES RECOMMENDED ACTIONS Replace the fuse in the installation. If fuse blows again, check Power cable fuse (red). electrical system for overloads or short circuits. Discharged or empty battery. Charge the battery or replace it with a new one. ELECTRICAL SYSTEM Loose or corroded battery connections.
- Page 39 Troubleshooting ENGINE FAILURE SYSTEM PROBABLE CAUSES RECOMMENDED ACTIONS GENERAL The fuel regulator is not operational. Contact an Official Solé Diesel Service. Faulty or clogged fuel pump Check fuel pump inlet. Clogged fuel filter Replace fuel filter. FUEL SYSTEM Air in fuel system Bleed fuel system.
- Page 40 Troubleshooting ENGINE FAILURE SYSTEM PROBABLE CAUSES RECOMMENDED ACTIONS OIL PRESSURE TOO Strangled oil pressure-relief valve Clean the valve and check its operation. Faulty oil pressure valve Contact an Official Solé Diesel Service. LUBRICATION SYSTEM Oil level too high. Reset oil level. Obstruction of oil lines.
- Page 41 Troubleshooting ENGINE FAILURE SYSTEM PROBABLE CAUSES RECOMMENDED ACTIONS Faulty coolant water pump. Check coolant pump (impeller, pump sealing). Clean the tap, check if the salt water pump impeller is Plugged or restricted-pitch salt water tap. damaged. Faulty salt water pump. Check sea water pump (impeller, pump sealing).
-
Page 42: Section 7 - Technical Specifications
Technical specifications Section 7 - Technical specifications Solé, S.A. C-243 b, km 2 · 08760 Martorell (Barcelona) ·Tel. +34 93 775 14 00 · www.solediesel.com · info@solediesel.com Marine diesel engines. Operator’s manual... - Page 43 MINI-62 Specifications No. Of Strokes: Number of cylinders: Layout of cylinders: In line Cylinder diameter (mm): Stroke (mm): Total displacement (cc): 2311 Compression ratio: 22:1 Continuous power (kW): 39,1 Intermittent Power (kW): 43,4 Max RPM: 3000 Rotation (viewed from flywheel side):...
- Page 44 SM-103 Specifications No. Of Strokes: Number of cylinders: Layout of cylinders: In line Cylinder diameter (mm): Stroke (mm): Total displacement (cc): 4996 Compression ratio: 22:1 Continuous power (kW): 68,2 Intermittent Power (kW): 75,8 Max RPM: 2500 Rotation (viewed from flywheel side): Counterclockwise Idle RPM: 800 (±50)
-
Page 45: Section 8 - Tightening Torques
Tightening torques Section 8 – Tightening torques Important nuts and screws: Dia. x pit c h of MINI-6 2 t he t hr ead TIGHTENING VAL UES N·m kgf·m (M t hr ead) Cylinder head M12 x 1.75 118 ± 5 12.0 ±... - Page 46 Tightening torques Dia. x pit c h of S M-1 0 3 TIGHTENING VAL UES t he t hr ead (M t hr ead) N·m kgf·m Cylinder head M12 x 1.75 113 a 123 11.5 a 12.5 Rocker cover M8 x 1.25 10.0 a 13.0 1.0 a 1.3 Rocker arm shaft brackets...
-
Page 47: Section 9 - Wiring Diagrams
Wiring diagrams Section 9 – Wiring diagrams Solé, S.A. C-243 b, km 2 · 08760 Martorell (Barcelona) ·Tel. +34 93 775 14 00 · www.solediesel.com · info@solediesel.com Marine diesel engines. Operator’s manual... - Page 48 TRANSMISOR DE TEMPERATURA / TEMPERATURE SENSOR N.S. TRANSMISOR DE PRESIÓN / PRESSURE SENSOR N.S. MODELO MOTOR / ENGINE MODEL: MINI-62 / SM-82 / SM-94 LEYENDA / LEGEND: VOLTAGE MOTOR / ENGINE VOLTAGE: 12V / 24V - N.S.: NO SUMINISTRADO / NOT SUPPLIED VERIFICADO FECHA CREACIÓN...
- Page 49 TRANSMISOR DE PRESIÓN / PRESSURE SENSOR N.S. N.S. MODELO MOTOR / ENGINE MODEL: MINI-62 / SM-82 / SM-94 LIBRE MASA / ISOLATED LEYENDA / LEGEND: VOLTAGE MOTOR / ENGINE VOLTAGE: 12V / 24V - N.S.: NO SUMINISTRADO / NOT SUPPLIED VERIFICADO FECHA CREACIÓN...
- Page 50 ARRANQUE / CRANKING ALTERNADOR / ALTERNATOR CONECTOR 1: C1 / CONECTOR 2: C2 / DETALLE RELES DE ARRANQUE / CONNECTOR 1: C1 CONNECTOR 2: C2 STARTER RELAY MOTOR DE ARRANQUE / STARTER 15 A 6 5 4 3 2 1 1 2 3 4 5 6 Violeta / Purple C1.2...
- Page 51 RELÉ DESCONEXIÓN DE TIERRA / ARRANQUE / EARTH DISCONNECTING RELAY CRANKING DETALLE RELÉ AISLAMIENTO / ISOLATING RELAY Diodos 2,5 A 86(+) MOTOR DE ARRANQUE / STARTER 85(-) 15 A CONECTOR 1: C1 / CONECTOR 2: C2 / DETALLE RELÉS DE ARRANQUE / CONNECTOR 1: C1 CONNECTOR 2: C2 STARTER RELAY...
-
Page 52: Section 10 - Overall Dimensions
Overall dimensions Section 10 – Overall dimensions Solé, S.A. C-243 b, km 2 · 08760 Martorell (Barcelona) ·Tel. +34 93 775 14 00 · www.solediesel.com · info@solediesel.com Marine diesel engines. Operator’s manual... -
Page 55: Section 11 - Instructions To Replace And Remove
Instructions to Replace and Remove Section 11 – Instructions to Replace and Remove When you decide to replace the engine, please contact SOLÉ S.A.; will provide relevant instructions regarding the laws in force at the time. When disposing of the whole or parts of this engine, meets LAWS IN FORCE IN THE COUNTRY OF INSTALLATION. -
Page 57: Section 12 - Inspection Prior To The Delivery Of Propulsion Engines
Inspection prior to the delivery of propulsion engines Section 12 - Inspection prior to the delivery of propulsion engines Solé, S.A. C-243 b, km 2 · 08760 Martorell (Barcelona) ·Tel. +34 93 775 14 00 · www.solediesel.com · info@solediesel.com Marine diesel engines. Operator’s manual... - Page 58 Inspection prior to the delivery of propulsion engines Solé, S.A. C-243 b, km 2 · 08760 Martorell (Barcelona) ·Tel. +34 93 775 14 00 · www.solediesel.com · info@solediesel.com Marine diesel engines. Operator’s manual...
-
Page 59: Section 13 - Maintenance Log
Maintenance log Section 13 - Maintenance log DATE HOURS DESCRIPTION SERVICE NAME Solé, S.A. C-243 b, km 2 · 08760 Martorell (Barcelona) ·Tel. +34 93 775 14 00 · www.solediesel.com · info@solediesel.com Marine diesel engines. Operator’s manual... - Page 60 Maintenance log DATE HOURS DESCRIPTION SERVICE NAME Solé, S.A. C-243 b, km 2 · 08760 Martorell (Barcelona) ·Tel. +34 93 775 14 00 · www.solediesel.com · info@solediesel.com Marine diesel engines. Operator’s manual...
- Page 62 Maintenance log U_CTMT62103_EN Revision 1 07/2022 Solé, S.A. C-243 b, km 2 · 08760 Martorell (Barcelona) ·Tel. +34 93 775 14 00 · www.solediesel.com · info@solediesel.com Marine diesel engines. Operator’s manual...
