Elko RFWB-20/G Manual
Wireless switch socket
Hide thumbs
Also See for RFWB-20/G:
- Instructions manual (9 pages) ,
- Manual (8 pages) ,
- Quick start manual (2 pages)
Related Manuals for Elko RFWB-20/G
Summary of Contents for Elko RFWB-20/G

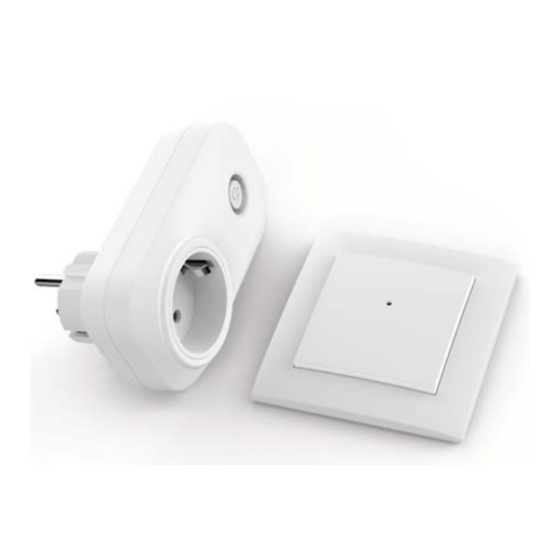

- Page 1 WIRELESS SWITCH SOCKET (CLASSIC VERSION) Combination of iNELS wall-mounted wireless controller and switch socket.

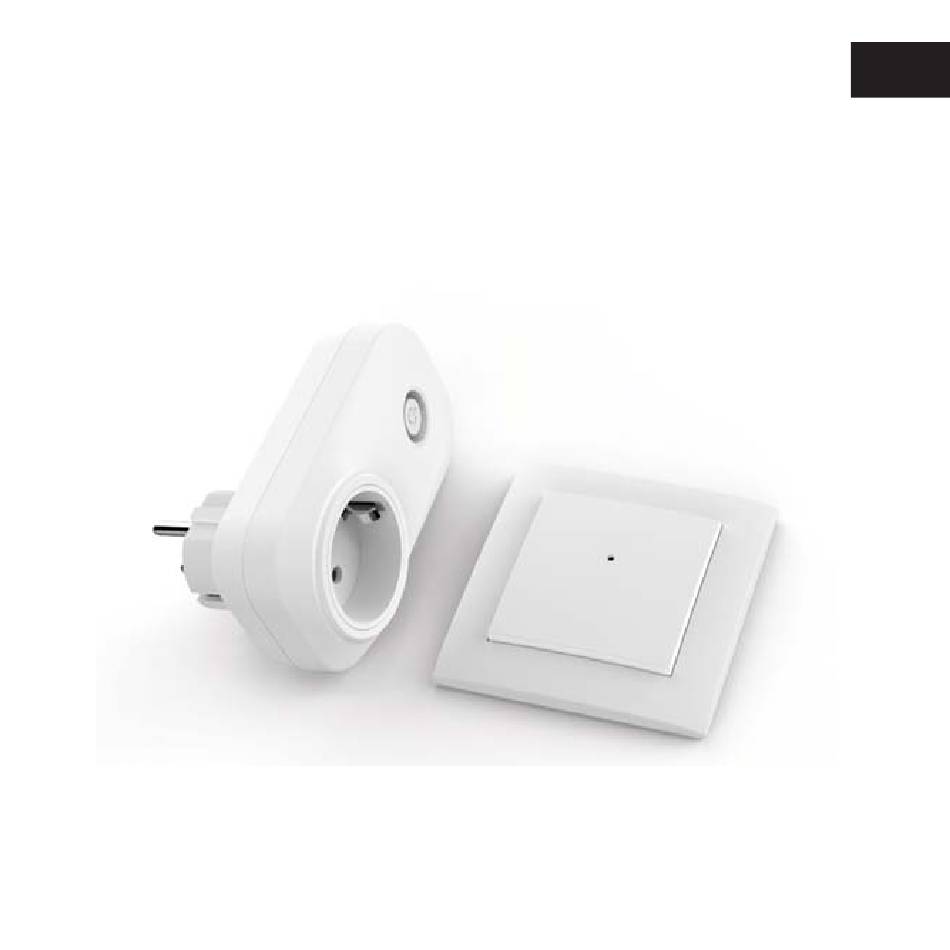

- Page 2 Content On-wall button controller PLASTIC - 2 buttons RFWB-20/G Switching socket-plug RFSC-61N Schuko British French EAN 8595788183215 (On-wall button controller PLASTIC - 2 buttons + Switching socket-plug “French“) EAN 8595788183314 (On-wall button controller PLASTIC - 2 buttons + Switching socket-plug “British“) EAN 8595788183413 (On-wall button controller PLASTIC - 2 buttons + Switching socket-plug “Schuko“)
- Page 3 • The wireless controller is used to control switches and dimmers (lights, gate, garage door, blinds, etc.). • RFWB-20/G: two buttons enable control one or two units independently (depending on the type of switching element). • The fl at design with level base makes it ideal for fast installation on any surface (fi xation with adhesive or screws in the installation box).
- Page 4 Technical parametres RFWB-20/G Supply voltage: 3 V battery CR 2032 Transmission indication: red LED Number of buttons: Transmitter frequency: 868.5 MHz Signal transmission method: unidirectionally addressed message Range in free space: up to 200 m Other data Operating temperature: -10 ... +50 °C (14 ... 122 °F)
- Page 5 Detailed manual Switching socket-plug RFSC-61N (Schuko, French, British) Characteristics RFSC-61N • The switched socket with 1 output channel is used to control fans, lamps, heaters and appliances, which are connected by a power cord. • They can be combined with detectors, controllers, iNELS RF Control system components. •...
- Page 6 Technical parameters RFSC-61 N/230V Supply voltage: 230 V / 50-60Hz Apparent power: 7 VA Dissipated power: 0.7 W Supply voltage tolerance: +10 %; -15 % Output: Number of contacts: 1x switching (AgSnO2) Rated current: 16 A / AC1 Switching power: 4000 VA / AC1, 384 W / DC Peak current: 30 A / <...
- Page 7 Compatibility The device can be combined with all system components, controls and devices of iNELS RF Control and iNELS RF Control The detector can be assigned an iNELS RF Control (RFIO ) communication protocol. Radiofrequency signal penetration through various construction materials Range up to 200 m (2 inch) in open space, 60 - 90 % 80 - 95 %...
- Page 8 fl at etc. and thus disable remote control. Designed & Manufactured by: ELKO EP, s.r.o. Palackého 493, 769 01 Holešov, Všetuly, Czech republic, www.elkoep.com, Hotline: +420 800 100 671...
