Download
Share
Print this page
Elko iNELS RFWB-20/G Manual
  1. Manuals
  2. Brands
  3. Elko Manuals
  4. Home Automation
  5. RFWB-20/G
  6. Manual

Elko iNELS RFWB-20/G Manual

Wireless shutter control
Hide thumbs Also See for iNELS RFWB-20/G:
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual
WIRELESS
EN
SHUTTER CONTROL
(CLASSIC VERSION)
Combination of iNELS wall-mounted wireless controller and shutter switching device.

Advertisement

loading
Need help?

Need help?

Do you have a question about the iNELS RFWB-20/G and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Elko iNELS RFWB-20/G

Summary of Contents for Elko iNELS RFWB-20/G

  • Page 1 WIRELESS SHUTTER CONTROL (CLASSIC VERSION) Combination of iNELS wall-mounted wireless controller and shutter switching device.

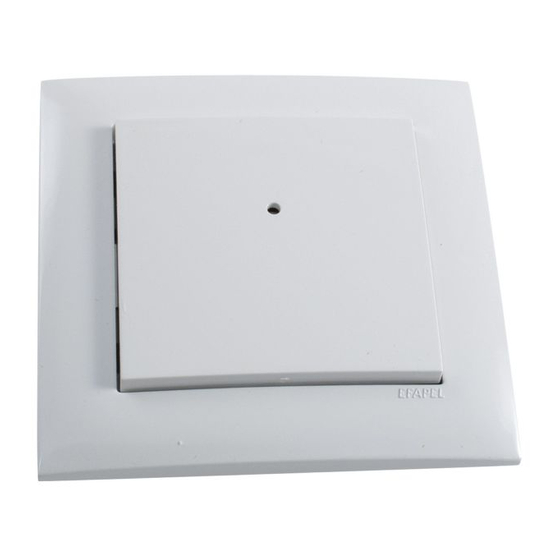

  • Page 2 Package On-wall button controller PLASTIC - 2 buttons RFWB-20/G Switch unit for shutters RFJA-32B-SL EAN 8595788183147 (On-wall button controller PLASTIC - 2 buttons + Switch unit for shutters) Range up 200 m The individual elements in the iNELS set are paired and their functions are preset. iNELS Wireless shutters control enables it´s remote control.
  • Page 3 Detailed manual On-wall button controller 2 buttons RFWB-20/G Characteristics RFWB-20/G • The wireless controller is used to control switches and dimmers (lights, gate, garage door, blinds, etc.). • RFWB-20/G: two buttons enable control one or two units independently (depending on the type of switching element).
  • Page 4 Technical parametres RFWB-20/G Supply voltage: 3 V battery CR 2032 Transmission indication: red LED Number of buttons: Transmitter frequency: 868.5 MHz Signal transmission method: unidirectionally addressed message Range in free space: up to 200 m Other data Operating temperature: -10 ... +50 °C (14 ... 122 °F) Operating position: Mounting: glue, screws...
  • Page 5 Detailed manual Switch unit for shutters RFJA-32B-SL RFJA-32B-SL Characteristics • The switching unit for blinds has 2 output channels used to control garage doors, gates, blinds, awnings, etc… • It can be combined with system components iNELS RF Control with RFIO protocol.
  • Page 6 Technical parameters RFJA-32B-SL Supply voltage: 230 V AC / 50 - 60 Hz φ Apparent input: 7 VA / cos = 0.1 Dissipated power: 0.7 W Supply voltage tolerance: +10 -15 % Output: Number of contacts: 2x switching (AgSnO Rated current: 8 A / AC1 Switching power: 2000 VA / AC1...
  • Page 7 Connection Indication, manual control •LED STATUS - indication of the device status. • Manual control is performed by pressing the PROG button. • Programming is performed by pressing the PROG button for more than 1s. • Terminal block for connection of buttons. IN1 - direction button up IN2- button down. In the programming and operating mode, the LED on the component lights up at the same time each time the button is pressed - this indicates the incoming command 1.
  • Page 8 fl at etc. and thus disable remote control. Designed & Manufactured by: ELKO EP, s.r.o. Palackého 493, 769 01 Holešov, Všetuly, Czech republic, www.elkoep.com, Hotline: +420 800 100 671...
