Elko iNels RFWB-20/G Instructions Manual
Wireless switch (classic version)
Hide thumbs
Also See for iNels RFWB-20/G:
- Manual (8 pages) ,
- Quick start manual (2 pages) ,
- Manual (12 pages)
Related Manuals for Elko iNels RFWB-20/G
Summary of Contents for Elko iNels RFWB-20/G

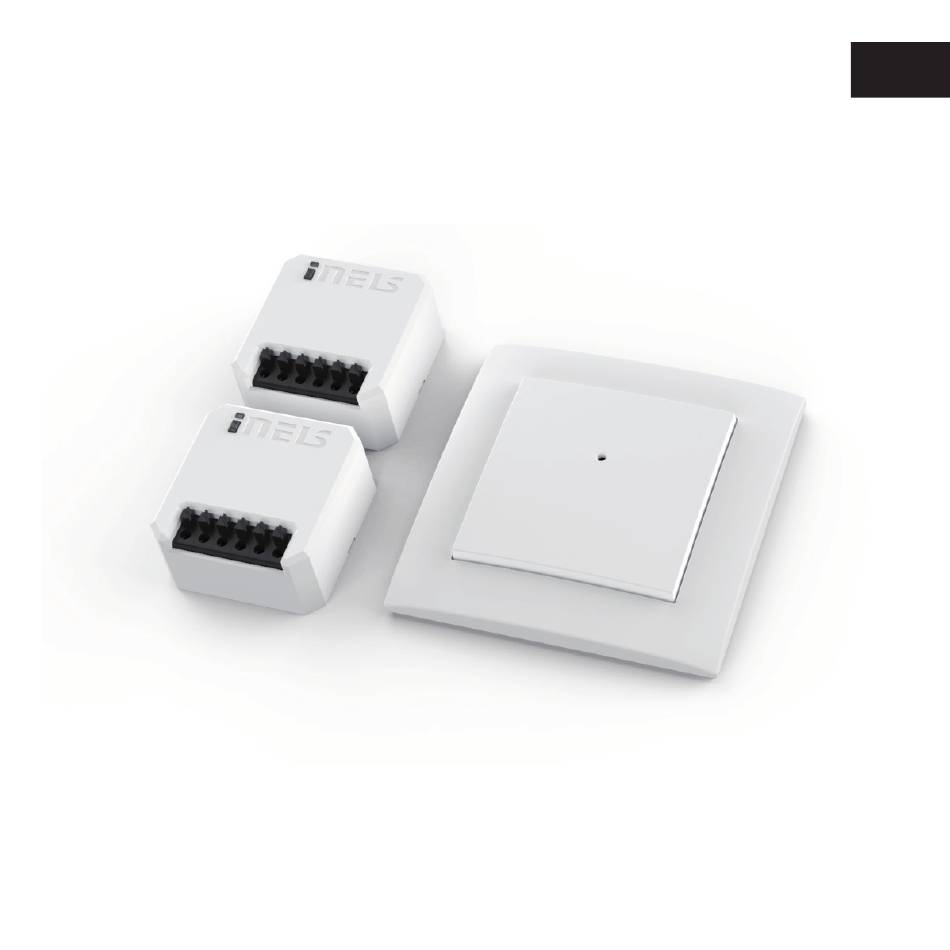

- Page 1 WIRELESS SWITCH (CLASSIC VERSION) Combination of iNELS wall-mounted wireless controller and switching unit for various uses. It can be used to remote control electrical appliances, lights, sockets, garage doors, etc.
- Page 2 Package On-wall button controller PLASTIC - 2 buttons RFWB-20/G On-wall button controller PLASTIC - 4 buttons RFWB-40/G Switch unit, 1-channel RFSAI-11B-SL EAN 8595788182878 (On-wall button controller PLASTIC - 2 buttons + 1 switch unit, 1-channel) EAN 8595188182881 (On-wall button controller PLASTIC - 4 buttons + 2 switch units, 1-channel) Range up to 200 m The individual elements in the iNELS kit are paired and their functions are preset.
- Page 3 On-wall button controller Detailed manual RFWB-20/G, RFWB-40/G RFWB-20/G – On-wall button controller PLASTIC - 2 buttons RFWB-40/G – On-wall button controller PLASTIC - 4 buttons RFWB-20/G RFWB-40/G Characteristics • The wireless controller is used to control switches and dimmers (lights, gate, garage door, blinds, etc.). •...
- Page 4 Technical parametres RFWB-20/G RFWB-40/G Supply voltage: 3 V battery CR 2032 Transmission indication: red LED Number of buttons: Transmitter frequency: 868.5 MHz Signal transmission method: unidirectionally addressed message Range in free space: up to 200 m Other data Operating temperature: -10 ...
- Page 5 Switch unit, 1-channel Detailed manual RFSAI-11B-SL Characteristics RFSAI-11B-SL • The switching unit with 1 output channel is used to control appliances, lights, etc. • The BOX design lets you mount it right in an installation box, a ceiling or a controlled appliance cover. •...
- Page 6 Technical parameters RFSAI-11B-SL Supply voltage: 230 V AC Supply voltage frequency: 50-60 Hz 7 VA / cos φ = 0.1 / 0.7 W Power apparent / dissipated: Output: Number of contacts: 1x switching contacts (AgSnO Rated current: / switching power 8 A / AC1 / 2000 VA Peak current: 10 A / <3 s...
- Page 7 Compatibility The device can be combined with devices of iNELS RF Control with RFIO protocol. Connection RFSAI-11B-SL S - external input N - neutral wire L - phase wire V - output Screwless terminals i - programing button - manual controll Solid conductor - output status indication 20~16 AWG...
