Operating the
You can use the remote control as a remote mouse.

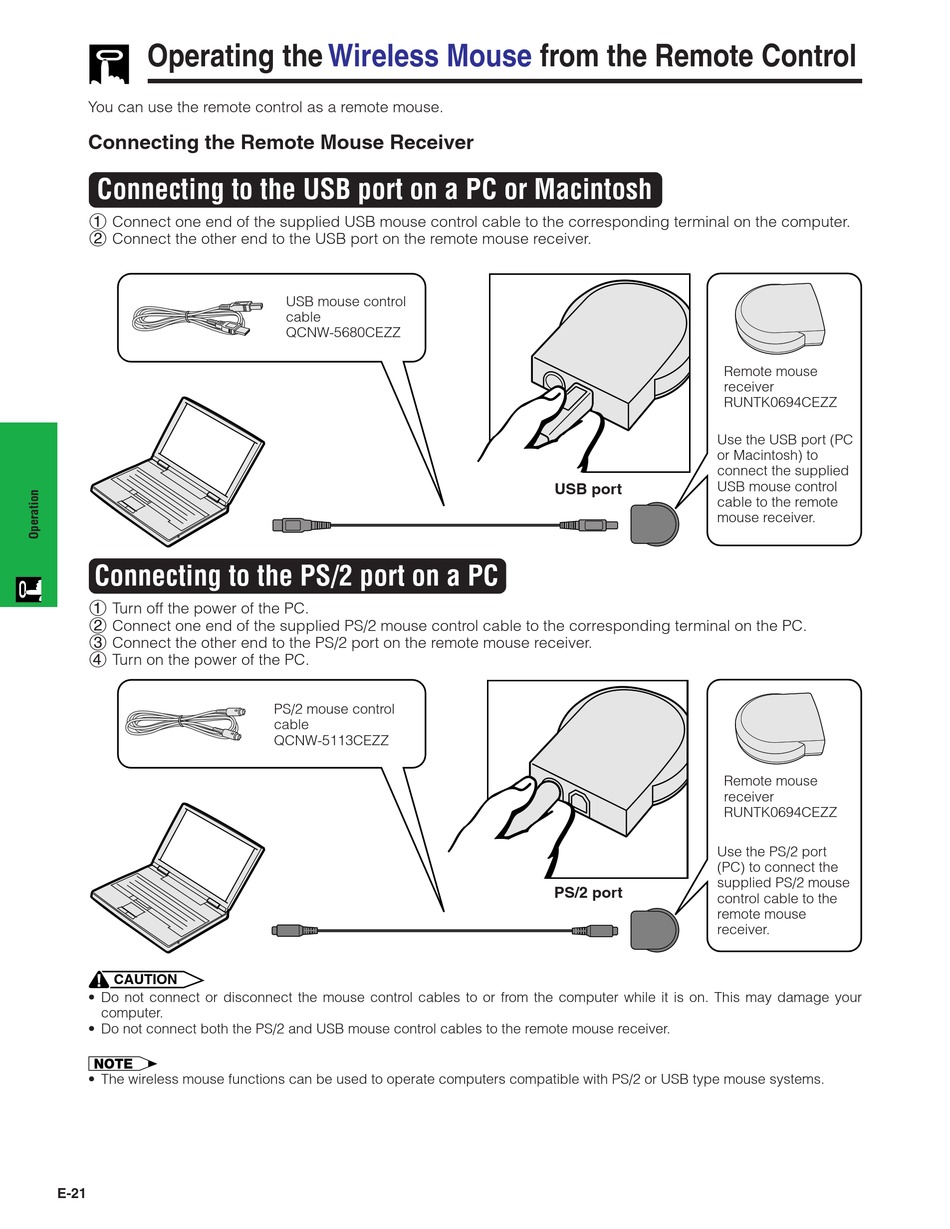

Connecting the Remote Mouse Receiver
Connecting to the USB port on a PC or Macintosh
1 Connect one end of the supplied USB mouse control cable to the corresponding terminal on the computer.
2 Connect the other end to the USB port on the remote mouse receiver.
Connecting to the PS/2 port on a PC
1 Turn off the power of the PC.
2 Connect one end of the supplied PS/2 mouse control cable to the corresponding terminal on the PC.
3 Connect the other end to the PS/2 port on the remote mouse receiver.
4 Turn on the power of the PC.
CAUTION
• Do not connect or disconnect the mouse control cables to or from the computer while it is on. This may damage your
computer.
• Do not connect both the PS/2 and USB mouse control cables to the remote mouse receiver.
• The wireless mouse functions can be used to operate computers compatible with PS/2 or USB type mouse systems.
E-21
Wireless Mouse
USB mouse control
cable
QCNW-5680CEZZ
PS/2 mouse control
cable
QCNW-5113CEZZ
from the Remote Control
Use the USB port (PC
or Macintosh) to
connect the supplied
USB mouse control
USB port
cable to the remote
mouse receiver.
Use the PS/2 port
(PC) to connect the
supplied PS/2 mouse
PS/2 port
control cable to the
remote mouse
receiver.
Remote mouse
receiver
RUNTK0694CEZZ
Remote mouse
receiver
RUNTK0694CEZZ
