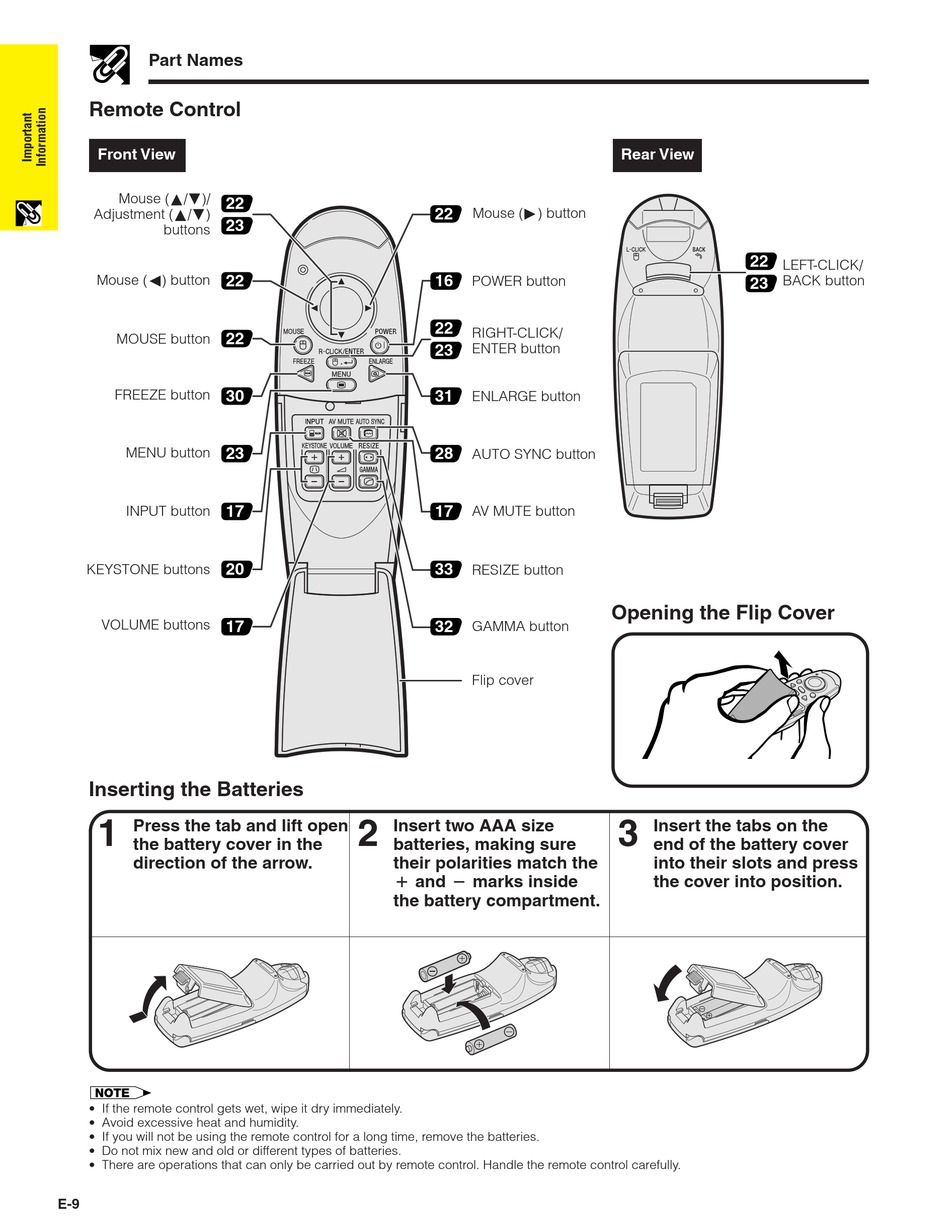

Part Names
Remote Control
Front View
Mouse (∂/ƒ)/
22
Adjustment (∂/ƒ)
23
buttons
Mouse (ß) button 22
22
MOUSE button
FREEZE button 30
MENU button 23
17
INPUT button
20
KEYSTONE buttons
VOLUME buttons
17
Inserting the Batteries
1 Press the tab and lift open
the battery cover in the
direction of the arrow.
• If the remote control gets wet, wipe it dry immediately.
• Avoid excessive heat and humidity.
• If you will not be using the remote control for a long time, remove the batteries.
• Do not mix new and old or different types of batteries.
• There are operations that can only be carried out by remote control. Handle the remote control carefully.
E-9
22
Mouse (©) button
16
POWER button
22
RIGHT-CLICK/
ENTER button
23
31
ENLARGE button
28
AUTO SYNC button
17
AV MUTE button
33
RESIZE button
32
GAMMA button
Flip cover
2 Insert two AAA size
batteries, making sure
their polarities match the
and marks inside
the battery compartment.
Rear View
22
LEFT-CLICK/
BACK button
23
Opening the Flip Cover
3 Insert the tabs on the
end of the battery cover
into their slots and press
the cover into position.
