RT540E OPERATOR MANUAL
1. Use the screen buttons or jog dial with the Outrigger
Function Enable Switch to select the left or right rear
outrigger on the CCS screen. Retract until the rear jacks
have retracted several inches.
2. Use the screen buttons or jog dial with the Outrigger
Function Enable Switch to select the left or right front
outrigger on the CCS screen. Retract until the front jacks
have retracted several inches.
Item
1 Outrigger Float Assembly
2 Quick Pin With Lanyard
3 Rubber Bumper
4 Cotter Pin
5. Continue to retract the jacks until they are fully retracted.
GROVE
4
3
1
Description
Published 04-20-2015, Control # 501-02
OPERATING CONTROLS AND PROCEDURES
Keep feet and hands clear of floats when unlocking the
floats from the jacks.
3. Repeat steps 1 and 2 until the crane is resting on all
wheels and the jack floats are several inches off the
ground.
4. Release the locking levers and allow the floats to drop to
the ground.
2
4
3
6. Use the screen buttons or jog dial with the Outrigger
Function Enable Switch to select and retract each
outrigger beam. Refer to Stowing the Mid-Extend Lock
Pin if the crane was operated at the mid-extend position.
NOTE: More than one outrigger beam may be retracted at
one time.
7. After all outriggers have been fully retracted, stow the
outrigger floats (Figure 3-10).
DANGER
2

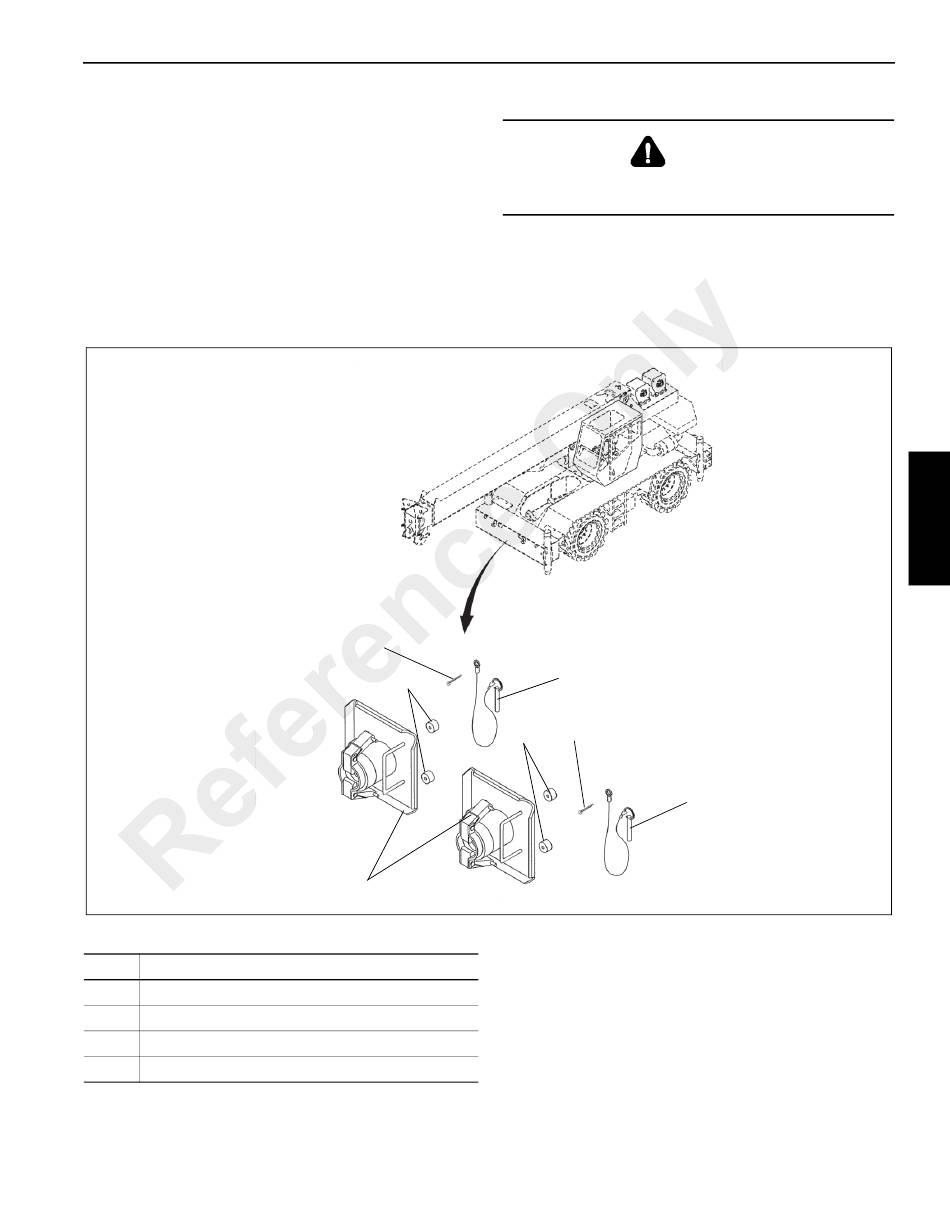

FIGURE 3-10
3
3-21
