Allied Systems W8L Operating Manual page 32

Winch On
Winch Off
Winch Off and Error
Detected
Oil Filter Bypassing
Line‐In Coil Fault
Line‐Out Coil Fault
Brake Release Coil Fault
Accumulator Coil Fault
Cooling Oil Coil Fault
Brake Dump Coil Fault
Freespool Coil Fault
Joystick Fault
Low Batt. Volt. Fault
ECM High Temp. Fault
20
LED Off
LED On
+ Error Code Below, Repeating

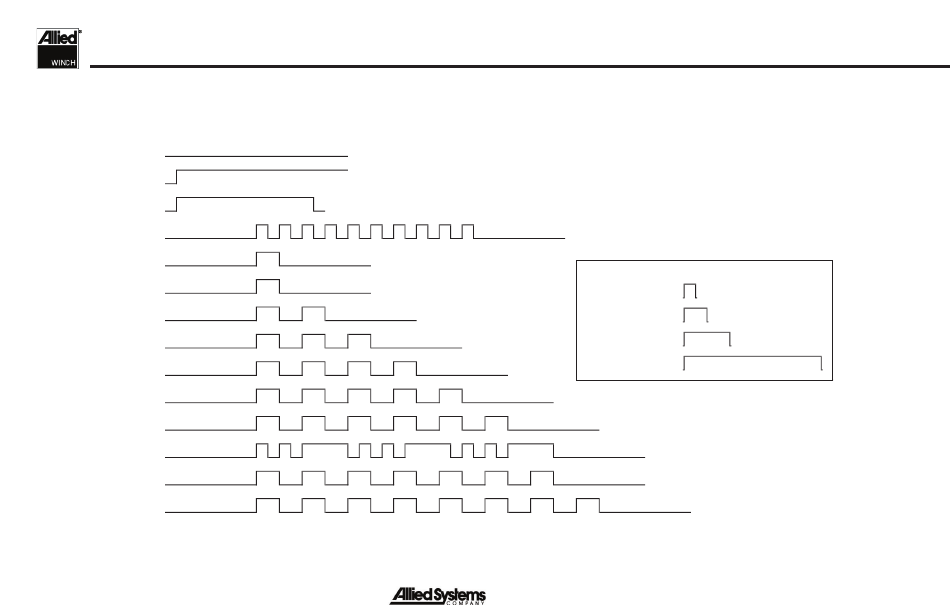

Figure 10-2 - Error Codes
Timing
1/4 Second Pulse
1/2 Second Pulse
1 Second Pulse
3 Second Pulse
