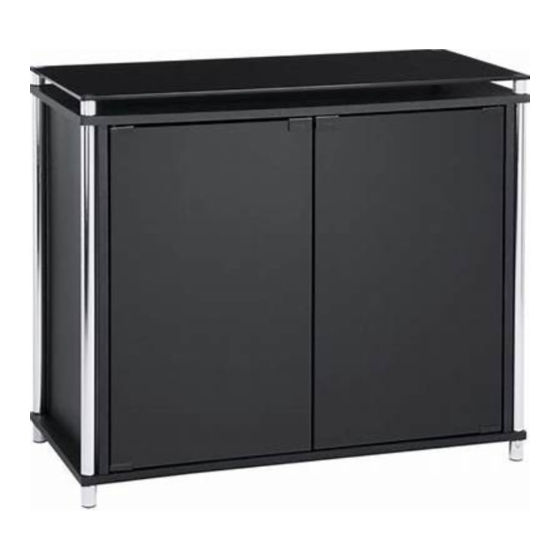

Matrix Sideboard
Assembly Instructions -
Dimensions
Width - 80cm
Depth - 40cm
Height - 70cm
Important -
Please read these instruction fully before starting assembly
If you need help or haved amaged or missing parts,call the
Please keep for future reference
:
Customer Helpline
614/0744
03456 400800
Issue 1 08/06/16
Advertisement
Related Manuals for hygena Matrix 614/0744
Summary of Contents for hygena Matrix 614/0744
- Page 1 Matrix Sideboard Assembly Instructions - Please keep for future reference 614/0744 Dimensions Width - 80cm Depth - 40cm Height - 70cm Important - Please read these instruction fully before starting assembly If you need help or haved amaged or missing parts,call the Customer Helpline 03456 400800 Issue 1 08/06/16...
- Page 2 Safety and Care Advice Important - Please read these instructions fully before starting assembly Do not stand on the product, components and tools listed on this could cause damage. recommend the pages 2 and 3. use of power drill/drivers for inserting screws, plastic bags and separate them as this could damage the unit.
- Page 3 Components - Panels Please check you have all the panels listed below Top panel x 1 Metal tube x 4 Glass Top x 1 (80 x 40cm) (60 x 2.5cm) (80 x 40cm) Unfinished edge Unfinished edge Left side panel x 1 Right side panel x 1 (39.9 x 60cm) (39.9 x 60cm)
- Page 4 Components - Fittings If you haved amaged or missing components, call the C ustomer Helpline:03456400800 Please check you have all the fittings listed below Note:The quantities beloware the correct amount to complete the assembly.In some cases more fittings may be supplied than are required. 60mm Screw x 8 35mm Cam pillar x 4 30mm Plastic dowel x 8...
- Page 5 Assembly Instructions Step1 Attaching screws Assemble 4 pcs of screws onto top glass Step2 Attaching panel Assemble top panel onto top glass Step3 Attaching metal tube Assemble 4 pcs of metal tube onto the screw...
- Page 6 AssemblyInstructions Assembly Instructions Step4 Attaching cam pillar Assemble 4pcs of cam pillars onto top panel Step5 Attaching door catch set Assemble door catch onto top panel Step6 Fitting dowels Insert 8 pcs of plastic dowels into panel...
- Page 7 Assembly Instructions Step7 Attaching cams Attach side panel onto top panel with cam to tighten. Unfinished edge Step8 Attaching screws Assemble 4 pcs of screws onto metal tube...
- Page 8 Assembly Instructions Step9 Attaching panel Two people are required here. Assemble bottom panel onto panels & Assemble 4 pcs of screws onto bottom panel Unfinished edge Step10 Attaching foot Assemble 4 pcs of foot onto screws...
- Page 9 Assembly Instructions Step11 Insert door assembly spring Insert 2 pcs of door assembly spring the top Insert 2 pcs of door assembly spring the bottom Step12 Attaching back panel Use screws to fix back panel otno the unit. Unfinished edge...
- Page 10 Assembly Instructions Step13 Inserting shelf support Insert 4 pcs of shelf support in the proper position of panel Inserting shelf Insert the shelf onto unit. Step14 Attaching hinge set Attach part onto bottom board...
- Page 11 Assembly Instructions Step15 Attaching door Please make sure the part as shown is the correct one for assembly at this stage. CAUTION: Before tighten the glass ,please with part ensure the part align to the edge of glass door Frosted side Step16 Attaching door Frosted side...
- Page 12 Assembly Instructions Step17 Frostedside Attaching door Insert part into top panel Slide glass door into part onto bottom panel Before tighten the glass ,please with part ensure the part align to the glass door Step18 Attaching plate Attach plate to the glass door at the position as shown.
- Page 13 Assembly Instructions Step19 Fixing to wall Note: It would be useful to ask someone to help you at this stage. It is strongly recommended that the unit is attached to the wall using Wall strap Important: When drilling into walls always check that there are no hidden wires or pipes etc.
- Page 14 Assembly Instructions Step20 Assembly is complete. MAX:20 kgs If you need help or haved amaged or missing parts,call the CustomerHelpline: 03456 400800...
