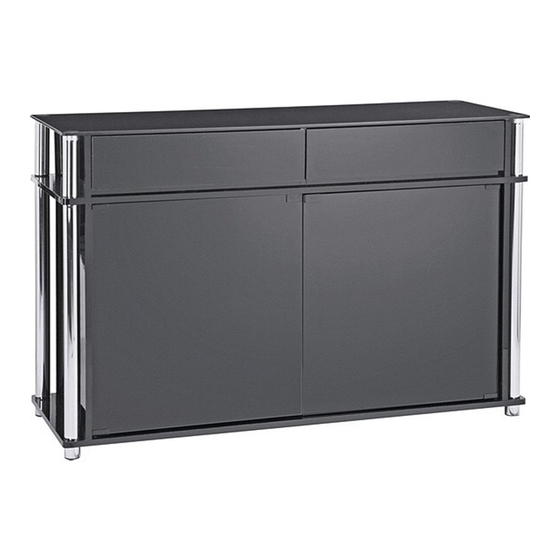

Matrix Large Sideboard

Assembly Instructions -

hygena

Dimensions

Width - 120cm

Depth - 40cm

Height - 80cm

Important

- Please read these instructions fully before starting assembly

If you need help or have damaged or missing parts, call the Customer Helpline : 03456 400800

Please keep for future reference

614/2151

issue 1 08/06/16

Need help?

Do you have a question about the Matrix Large Sideboard and is the answer not in the manual?

Questions and answers

Summary of Contents for hygena Matrix Large Sideboard

Page 1 Matrix Large Sideboard Assembly Instructions - 614/2151 Please keep for future reference hygena Dimensions Width - 120cm Depth - 40cm Height - 80cm Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline : 03456 400800...
Page 2 Safety and Care Advice Important - Please read these instructions fully before starting assembly Check you have all the Do not stand on the panels, this We do not components and tools listed on could cause damage. recommend the use pages 2 and 3.
Page 3 Components - Panels If you have damaged or missing components, call the Customer Helpline : 03456 400800 Please check you have all the panels listed below 3 Top middle panel 2 Top left side panel Top right side panel (39.9 x 15.1cm) (36.7 x 15.1cm) (39.9 x 15.1 cm) 4 Glass Top (120 x 40cm)
Page 4 Components - Panels If you have damaged or missing components, call the Customer Helpline : 03456 400800 Please check you have all the panels listed below 18 Right drawer front panel 17 Left drawer front panel (52.8 x 13cm) (52.8 x 13cm) 20 Right drawer side panel x 2 19 Left drawer side panel x 2 (34 x 8cm)
Page 5 Components - Fittings Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required. Locking Pin x 18 15mm Locking nut x 10 12mm Locking nut x 8 12mm Screw x 20 Dowel 30mm x 24...
Page 6 Assembly Instructions Step 1 Attaching runner Fix runner onto Top left side panel by using 3 pcs of Screw Step 2 Attaching Locking pin Fix 2 pcs of Locking pin and Dowel into Top left side panel Step 3 Step 3 Attaching runner Fix runner onto...
Page 7 Assembly Instructions Assembly Instructions Step 5 Attaching runner Fix runner onto Top middle panel b y using 3 pcs of Screw Step 5 Step 6 Attaching runner Fix runner onto Top middle panel by using 3 pcs of Screw . Insert Dowel into Top middle panel Step 5...
Page 8 Assembly Instructions Assembly Instructions Step 3 Step 9 Attaching panel Fitting sides & middle Fix Top middle panel onto the unit by using 2 pcs of Screw Step 3 Step 10 Attaching panel Insert 2 pcs of dowel onto the Supporting panel Fix Supporting panel onto the unit with Screw Step 3...
Page 9 Assembly Instructions Assembly Instructions Step 4 Step 12 Attaching Screws Fitting top & back Fix 4 pcs of Screw onto glass top c into Top Step 4 Step 13 4 15 Attaching Metal tube Fix 4 pcs of metal tube onto the Screw Step 4 Step 14...
Page 10 Assembly Instructions Assembly Instructions Step 15 Attaching panel Fix the top panel o nto the 4 pcs of metal tube Step 16 Attaching locking pin Insert Locking pin into panel Step 17 Attaching door catch Fix door catch set onto the Top panel with Screw as shown.
Page 11 Assembly Instructions Assembly Instructions Step 18 Attaching Metal tube Fix attach 4 pcs of metal tube onto 4 pcs of Screw 4 14 4 14 4 14 4 14 Step 19 Attaching Dowel Insert Dowel into panel 4 10 4 10 Step 20 Attaching side panel Attaching side panel...
Page 12 Assembly Instructions Assembly Instructions Step 21 Attaching Screws Fix 4 pcs of screw o nto metal tubes 4 14 4 10 Step 22 Attaching Panel Fix Insert Door assembly s pring onto Bottom panel Attaching Foot onto 4 24 Bottom panel with Screw 4 24 Step 23...
Page 13 Assembly Instructions Assembly Instructions Step 24 4 16 Attaching Metal tube Screwing metal tube onto panel 4 16 4 16 4 6 . 4 6 . Step 25 Attaching back panel onto Fix back panel this unit by using 20 pcs Screw 4 11...
Page 14 Assembly Instructions Assembly Instructions Step 26 Attaching wall Attaching mounting strap Fix Wall strap onto Top back panel using the Screw Step 27 Attaching shelf Insert 8 pcs of shelf support at the proper position of panel 9 10 Place the shelf onto the unit.
Page 15 Assembly Instructions Assembly Instructions Step 28 Attaching door hinge Make sure the p arts as shown is the correct one for assembly at this stage. CAUTION: Before tighten the glass with the parts Please ensure the parts, align to the edge of the glass door Step 29 Attaching door...
Page 16 Assembly Instructions Assembly Instructions Step 30 Attaching door Two people are required h ere. Before tighten the glass with parts align to the glass door Step 31 Attach parts shown Attach parts as shown.
Page 17 Assembly Instructions Step 32 Fitting drawers Use Screws to fix Left drawer runner onto the Drawer left Use Screws to fix Right drawer runner onto the Drawer right Use Screws to fix Drawer left Drawer right onto Drawer back Screwing Locking pins c into Drawer front Drawer bottom should ,drawer front is...
Page 18 Assembly Instructions Step 33 Fitting drawers Sliding 2 drawers 17 18 into the unit as shown.
Page 19 Assembly Instructions Assembly Instructions Step 34 Fixing to wall Note: It would be useful to ask someone to help you at this stage. It is strongly recommended that the unit is attached to the wall using Wall strap Important: When drilling into walls always check that there are no hidden wires or pipes etc.
