Standard Pump 8870 Manual

Standard Pump Operating Instructions and Parts Manual (
Standard Pump
Flow Meter System
Models: 8870, 8871, 8873, 8874, 8872 & 8875

Description

Standard's Drum Pumps are designed to
transfer a variety of materials from 55 gallon
drums and tanks. Standard Pump offers
several different pumps, each designed
for specific applications. Before operating,
please confirm that the pump's materials of
construction are suitable for the application.

Unpacking

Cartons should be handled with care to avoid
damage from dropping, etc. After unpacking,
inspect carefully for any damage that may
have occurred during transit. Check for loose,
damaged or missing parts.

General Safety Information

The responsibility for safe assembly,
installation, and operation ultimately rests
with the operator. Read and understand ALL
safety precautions and operating instructions
before operation. Careless pump operation
can result in serious injury.
1. Before operating the pump, read and
understand these operating instructions.
2. The operator should wear suitable
protective clothing including the following:
face mask, safety shield or goggles,
gloves, apron, and safety shoes.
3. Before operating, verify the materials
being pumped are compatible with the
pump's "wetted components."
Flow Meter System Specifications
Immersion
Model Design
Length
Centrifugal
39"
8870
/ Turbine
(1000 mm)
Meter
Centrifugal
39"
8871 / Turbine
(1000 mm)
Meter
Centrifugal
47"
8873
/ Turbine
(1200 mm)
Meter
Centrifugal
47"
8874
/ Turbine
(1200 mm)
Meter
Centrifugal
39"
8872 / Turbine
(1000 mm)
Meter
Centrifugal
39"
8875 / Turbine
(1000 mm)
Meter
Notes
1. Performance will vary depending on whether the product being pumped is Newtonian (viscosity remains constant regardless of shear) or non-Newtonian (viscosity does not remain constant with shearing).
2. Flow rates based on water. As viscosity increases, the flow rate will decrease.
OIPM-SAN-FLOWMETER-0713
4. All Federal, State, and local safety codes
should be followed.
5. Verify that the motor voltage
corresponds to proper electrical supply.
Before plugging motor into power
supply, make sure the motor switch is in
the OFF position. For Air Motors ensure
inlet valve is closed before attaching air
line.
6. Before operation, confirm all pump
connections are properly tightened.
7. First pump clean water in order to
familiarize yourself with the pump's
operation, flow rate, discharge pressure
and motor speed.
8. Before starting the pump, confirm the
discharge hose is securely fastened to
the receiving vessel in order to prevent
splashing.
9. Never leave pump unattended during
operation.
10. Do not submerge the motor in any liquid.
11. When finished using the pump, flush
the pump by pumping water or an
appropriate cleaning solution. Do not
use flammable or combustible cleaning
solutions.
12. Never carry the motor by the power
cord.
13. Never store pump in container. Always
rinse pump thoroughly and hang on wall
Wetted Motors
Voltage
Components Drives
TEFC (IP54),
SS316L, PTFE
110-120V Variable
& Buna
Speed
TEFC (IP54),
SS316L, PTFE
220-240V Variable
& Buna
Speed
TEFC (IP54),
SS316L, PTFE
110-120V Variable
& Buna
Speed
TEFC (IP54),
SS316L, PTFE
220-240V Variable
& Buna
Speed
SS316L, PTFE 1/2 HP (370
–
& Buna W) Air
SS316L, PTFE 1/2 HP (370
–
& Buna W) Air
Max Max
Discharge
Viscosity Flow
Size
Rate
cps (mPAS)*
32 GPM
100
(121 LPM)
32 GPM
100
(121 LPM)
32 GPM
100
1" (25 mm)
(121 LPM)
Hose Barb,
1.5" (38)
32 GPM
Tri-clamp 100
®
(121 LPM)
22 GPM
100
(83 LPM)
22 GPM
100
(83 LPM)
1
)
bracket or ensure pump tube is stored in
an upright and vertical position.

Assembly

1. Remove the pump, motor and from
packaging.
2. Inspect all contents for damage.
3. Couple the motor to the pump tube by
using the hex nut (see Figure 1).
4. Attach the meter to the pump discharge
using the supplied Tri-clamp
Figure 1).
Electric

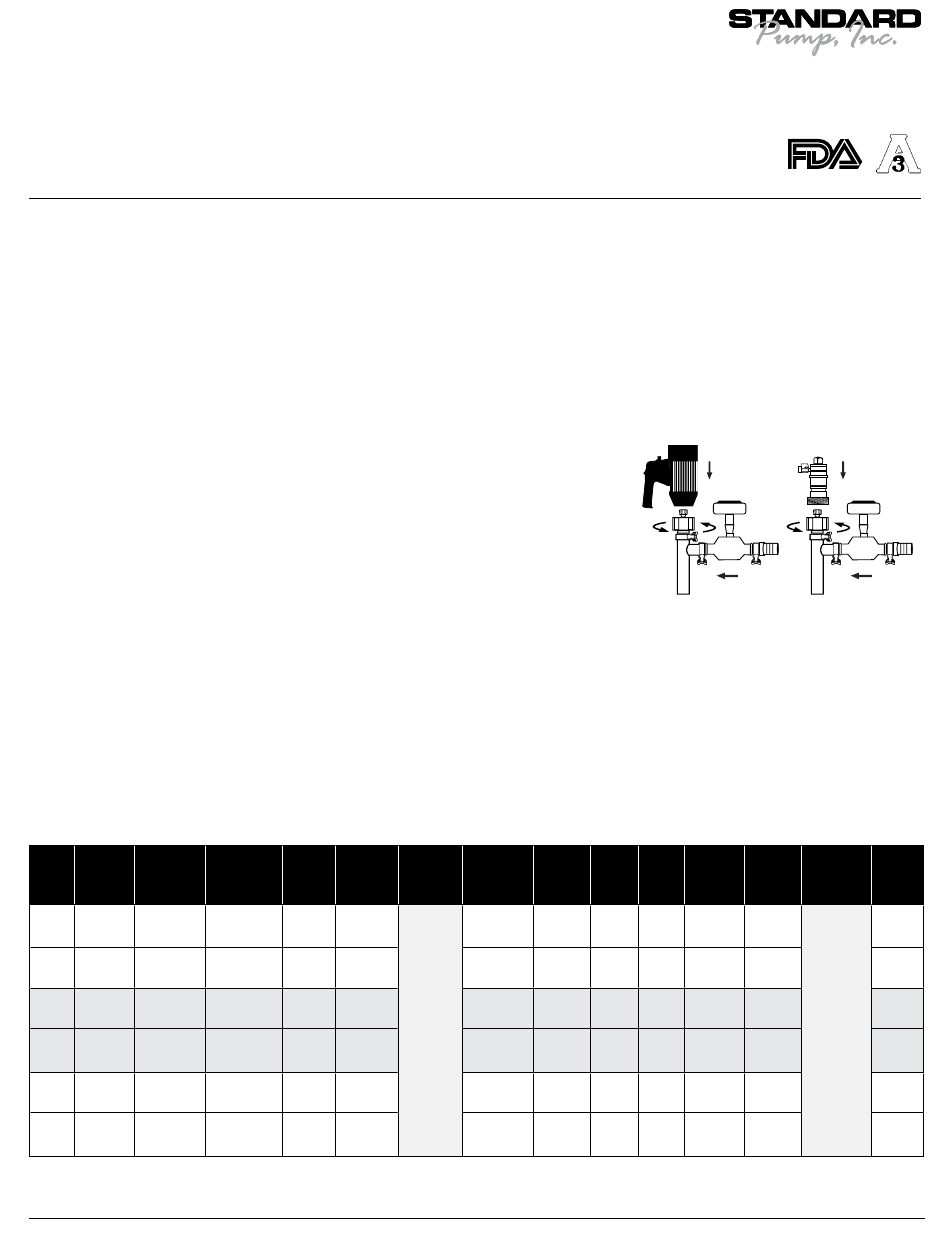

Figure 1
5. It is recommended to thoroughly clean
and sanitize the Flow Meter System
before operation.
6. First pump clean water in order to
familiarize yourself with the pump's
operation, flow rate, discharge pressure
and motor speed.
Meter
Max Duty
Finish Power
Temp Cycle
Supply:
250° F
32 Ra Intermittent 12 V / DC
(121° C)
250° F
32 Ra Intermittent 12 V / DC
(121° C)
250° F
32 Ra Intermittent 12 V / DC
(121° C)
250° F
32 Ra Intermittent 12 V / DC
(121° C)
250° F
32 Ra Continuous 12 V / DC
(121° C)
250° F
32 Ra Continuous 12 V / DC
(121° C)
fitting (see
®
Air
System System
Accuracy Weight
25 lbs
(11 Kg)
25 lbs
(11 Kg)
25 lbs
(11 Kg)
+/– 0.5%
(+/– .10%
Repeatability) 25 lbs
(11 Kg)
16 lbs
(7 Kg)
16 lbs
(7 Kg)
