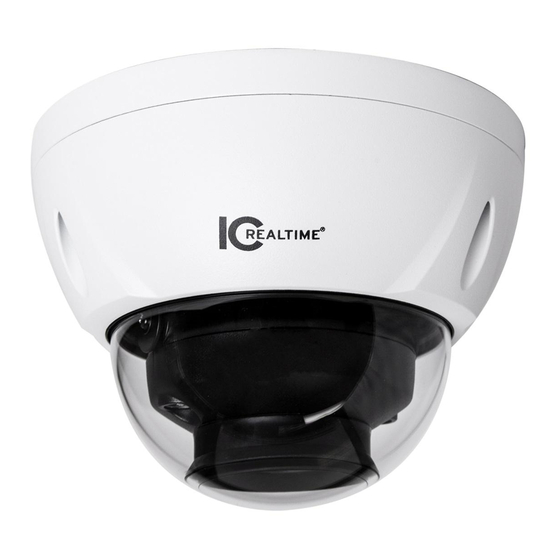

IC Realtime AVS-D8712SL-DP User Manual

IC Realtime AVS-D8712SL-DP User Manual

Hdavs dome camera

Advertisement

Quick Links

HDAVS Dome Camera
User's Manual
V1.0.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AVS-D8712SL-DP and is the answer not in the manual?

Questions and answers

Summary of Contents for IC Realtime AVS-D8712SL-DP

  • Page 1 HDAVS Dome Camera User’s Manual V1.0.1...
  • Page 2: Foreword

    Foreword General This user’s manual (hereinafter referred to be "the Manual") introduces the functions, installation and operations of the camera. Safety Instructions The following categorized signal words with defined meaning might appear in the Manual. Signal Words Meaning Indicates a medium or low potential hazard which, if not avoided, could result in slight or moderate injury.
  • Page 3 official website. If there is inconsistency between paper User's Manual and the electronic version, the electronic version shall prevail.  All the designs and software are subject to change without prior written notice. The product updates might cause some differences between the actual product and the Manual. Please contact the customer service for the latest program and supplementary documentation.
  • Page 4 Important Safeguards and Warnings Electrical Safety  All installation and operation should conform to your local electrical safety codes.  The power source shall conform to the requirement of the Safety Extra Low Voltage (SELV) standard, and supply power with rated voltage which conforms to Limited power Source requirement according to IEC60950-1.
  • Page 5 device is installed and maintained by professional engineers.  The surface of the image sensor should not be exposed to laser beam radiation in an environment where a laser beam device is used.  Do not provide two or more power supply sources for the device; otherwise it might damage the device.
  • Page 6: Table Of Contents

    Table of Contents Foreword ..............................I 1 Introduction ............................1 1.1 General............................1 1.2 Features ............................1 2 Design ..............................2 2.1 Dimension ............................. 2 2.2 Cable ............................. 3 3 Installation .............................. 6 4 Configuration ............................9 4.1 Opening Main Menu ........................9 4.2 Setting Audio Input ........................
  • Page 7: Introduction

    Introduction General This series of products comply with the HDAVS standard and support the transmission of video and control signal over coaxial cable. They produce video signal with megapixel resolution and require HDAVR device that comply with the HDAVS standard to achieve high speed, long distance and zero lag transmission of the signal.
  • Page 8: Design

    Design Dimension Figure 2-1 Model A (mm) Figure 2-2 Model B (mm) Figure 2-3 Model C (mm) Design 2...
  • Page 9: Cable

    Cable Figure 2-4 Figure 2-5 Figure 2-6 Figure 2-7 Figure 2-8 Figure 2-9 For more information about cable ports, see Table 2-1; for the operation method of ⑥(DIP switch), see Table 2-2. Port Name Function ① DC 12V Inputs DC 12V power. Please be sure to supply power as instructed in the Power Input Manual.
  • Page 10 ③ Video Output Connects to HDAVR to output video signal. ④ Audio Input Connects to sound-pick-up devices to receive audio signal. ⑤ Power Output Supplies DC12V 2W power. ⑥ DIP Switch Dial switches to change output mode. Switch up indicates "ON", switch down indicates "OFF."...
  • Page 11 Switch1 Switch2 Output Mode CVBS Table 2-2 Cable type might vary with different cameras, and the actual product shall prevail. Design 5...
  • Page 12: Installation

    Installation Make sure the mounting surface is strong enough to hold at least three times of the  camera weight.  Keep the protection film on the dome before installation and adjustment finished to avoid possible scratch.  Properly handle the device after unpacking. Do not expose the device in humid environment.
  • Page 13 Figure 3-2 Item Item Item Item ① ② ③ ④ Mounting surface Expansion bolt Pedestal Self-tapping screw ⑤ ⑥ ⑦ ⑧ Locking screw Dome Wrench Screw Cover Table 3-2 Step 1 Find the mounting template sticker from the accessory pack and stick it to the mounting surface①.
  • Page 14 Figure 3-3 Figure 3-4 Step 7 Put the Dome⑥ back on and fasten the locking screws⑤. For the models with vari-focal lens, you can adjust the zoom and focus through HDAVR device. Installation 8...
  • Page 15: Configuration

    Configuration Power up the camera and connect it to HDAVR device with coaxial cable, then the live view screen is displayed. The following instructions will guide you to configure your camera. The number of the coaxial port on HDAVR will display at the lower left corner of the live view window to indicate the corresponding camera.
  • Page 16: Setting Audio Input

    Figure 4-2 Right-click anywhere on the screen to return to the previous menu until you goes back to the live view screen interface. Setting Audio Input Audio signal acquisition is available on select models. Step 1 In the Main Menu interface (Figure 4-2), select CAMERA > ENCODE > Encode. The Encode setting interface is displayed.
  • Page 17 Figure 4-3 Step 2 In the Channel list, select the camera that you want to configure according to the coaxial port number. Step 3 In the Main Stream column, click More Setting. The More Setting interface is displayed. See Figure 4-4. Figure 4-4 Step 4 In the More Setting interface, you can configure the audio settings.
  • Page 18: Operating Osd Menu

    Operating OSD Menu Step 1 In the live view screen interface, right-click within the live view window of the camera that you want to configure. The shortcut menu (Figure 4-1) is displayed. Step 2 Click PTZ. The PTZ setting interface is displayed. See Figure 4-5. Figure 4-5 Step 3 Click...
  • Page 19 Table 4-1 If there is " " as the value of an OSD item, click Enter to go to the next level of this item. Click Return to go back to the previous level. Clicking Cancel is to exit OSD menu without saving the modifications.
  • Page 20: Maintenance

    Maintenance In order to maintain the image quality and proper functioning of the device, please read the following maintenance instructions carefully and hold rigid adherence. Disassembly and Desiccant Replacement Carefully follow the instructions in the manual when performing any disassembly operation ...
