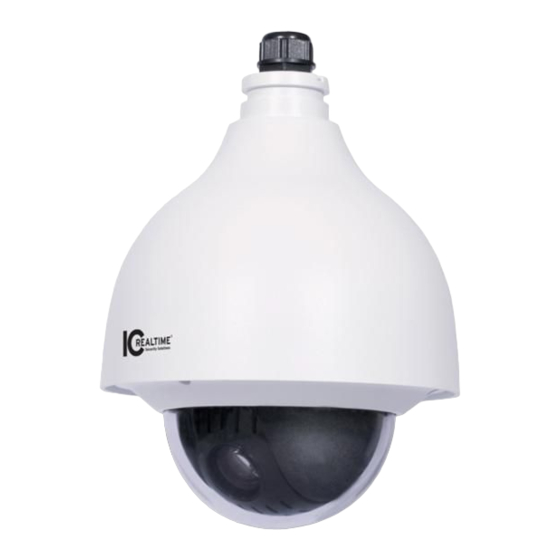

IC Realtime AVS-Z4212T User Manual

Hd avs intelligent speed dome
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
HD AVS Intelligent Speed Dome
User's Manual
Version 1.0.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AVS-Z4212T and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for IC Realtime AVS-Z4212T

Summary of Contents for IC Realtime AVS-Z4212T

  • Page 1 HD AVS Intelligent Speed Dome User’s Manual Version 1.0.0...
  • Page 2 Table of Contents FEATURES AND FUNCTIONS................... 1 General Introduction ..............................1 Features ..................................1 1.2.1 HD Video ................................. 1 1.2.2 Long-Distance Transmission without Any Loss ....................1 1.2.3 Coaxial Control ............................... 1 1.2.4 On-Screen Menu ..............................1 1.2.5 Proportional Pan and Tilt ............................1 1.2.6 On-screen Tips ...............................

  • Page 3: Table Of Contents

    MENU ..........................6 Screen Menu Index ..............................6 Self-diagnosis System Information .......................... 7 Main Menu ................................... 7 Menu Operation ................................ 8 3.4.1 System Setting ............................... 8 3.4.2 Display Setting ............................... 9 3.4.3 Camera Setting ..............................9 3.4.4 Function Setting ..............................14 3.4.5 Alarm Setting ................................
  • Page 4 APPENDIX 3 WIRE GAUGE REFERENCE SHEET ............28 APPENDIX 4 TOXIC OR HAZARDOUS MATERIALS OR ELEMENTS ......29...
  • Page 5 Welcome Thank you for purchasing our product! This user’s manual is designed to be a reference tool for the operation of your system. Here you can find information about this speed dome features and functions, as well as a detailed menu tree. Please keep it well for future reference! Before installation and operation, please read the following safeguards and warnings carefully!
  • Page 6 Important Safeguards and Warnings 1．Electrical safety  All installation and operation here should conform to your local electrical safety codes.  The power shall conform to the requirement in the SELV (Safety Extra Low Voltage) and the Limited power source is rated 24V AC in the IEC60950-1. ...
  • Page 7  If there is too much dust, please use the water to dilute the mild detergent first and then use it to clean the device. Finally use the dry cloth to clean the device.  6. About Accessories Always use all the accessories recommended by manufacturer. Before installation, please open the package and check that all the components are included in the package: Contact you local retailer ASAP if something is missing in your package.
  • Page 8 1 Features and Functions 1.1 General Introduction HD AVS (High Definition Composite Video Interface）is the HD video transmission specifications via the coaxial cable. It adopts analog modulation technology to transmit progressive HD video. This product integrates block camera and PTZ together. It is easy to install and use. It enjoys high resolution, which meets the customers' needs for surveillance at HD level.
  • Page 9 Camera scans back and forth regularly in a horizontal field. Here you need to set left and right limit and scan speed. 1.2.9 Auto Tour Add presets into a routine in a desired order and then set time and stop duration for each address. The dome will begin an auto touring between these presets.
  • Page 10 2 Preparation Works These series products support two control modes: Serial/HD AVS  For HD AVS series product, please select control mode as HD AVS. The control signal is sent to the PTZ via the coaxial cable.  For the serial mode, the control signal is sent to the PTZ via the RS485 port. 2.1 HD AVS Important If you want to control the speed dome via the coaxial cable, you need to use the corresponding...
  • Page 11 Open the transparent enclosure, there are two dial switch buttons on the PCB of one side of the speed dome (There are labels.). You can use them to set speed dome protocol, baud rate, address and etc. See Figure 2-2 . After setup, you need to click on-off button or go to the OSD menu to select restart option to reboot the device to activate new setup.
  • Page 12 Please refer to the parity sheet for detailed information. Parity NONE EVEN NONE 2.2.3 Set address dial switch The encode mode adopts binary system. 1 to 8 is the valid bit. The highest address bit is 255. See Figure 2-4. Figure 2-4 You can refer to the following sheet for more information.

  • Page 13: Menu

    3 Menu 3.1 Screen Menu Index Note: ERR means current setup is invalid. … means there is submenu. SYSTEM INFORMATION SYSTEM ADDR INFORMATION SETTING SET NORTH LANGUAGE : ENGLISH FACTORY DEFAULT RESTART BACK EXIT DISPLAY SETTING PRESET : ON AZIMUTH DISP : ON POSITION : OFF...

  • Page 14: Self-Diagnosis System Information

    The above diagram illustrates the overall structure of the speed dome setup menu. Note:  ERR means current setup is invalid. Please restore factory default setup.  Please make sure all the cable connections are right. 3.2 Self-diagnosis System Information ：001-H ADDR ：9600...

  • Page 15: Menu Operation

    bright, IR light compensation and etc.  EXIT: Log out the system menu. 3.4 Menu Operation In the speed dome main menu, you can use the left/right button on the keyboard or in the speed dome terminal menu to configure the system menu. Before setup, please move the cursor to the current item you want to configure.

  • Page 16: Display Setting

    Move the cursor to SYSTEM INFORMATION and then click confirm button, you can see the above interface. Here you can view dome basic information. 3.4.1.2 Address Information ：HARD ADDR TYPE ：1 ADDR-HARD ：0 ADDR-SOFT BACK EXIT Figure 3-5 Address information Move the cursor to SITE INFORMATION and then click confirm button.
  • Page 17 ：9 WB SETTING APERTURE ：10 EXPOSURE SETTING APERTURE RESTRAIN ：OFF DAY/NIGHT SETTING DIGITAL ZOOM ：OFF FOCUS SETTING PICTUER FLIP IMAGE ADJUST LENS INITIALIZATION ：8 ：720P/25 ZOOM SPEED PICTURE MODE NEXT PAGE NEXT PAGE BACK EXIT BACK EXIT Figure 3-7 Camera setting Figure 3-8 Next page CAMERA FACTORY DEFAULT CAMERA RESTART...
  • Page 18  CAMERE RESTART: Move the cursor to current item and then click confirm button to reboot the camera.  BACK: Go back to previous menu.  EXIT: Log out system menu. 3.4.3.1 White Balance Setup ： AUTO WB MODE ： 210 R GAIN ：...
  • Page 19  EXPOSURE COMP: It is to set camera exposure compensation. Please use the left/right button on the keyboard or in the speed dome terminal menu to set.  SLOW SHUTTER: In lower illumination environment, you can lower the cameras auto exposure time to capture the image and enhance the definition.
  • Page 20 ：AUTO DAY/NIGHT ： 4 THRESHOLD ：ELECTRONIC DAY/NIGHT TYPE SAVE BACK EXIT Figure 3-15 Day/night setting  DAY/NIGHT: It is to set camera day/night switch mode. Please use the left/right button on the keyboard or in the speed dome terminal menu to set. ...

  • Page 21: Function Setting

     : It is to set picture hue. Please use the left/right button on the keyboard or in the speed dome terminal menu to set.  BRIGHTNESS: It is to set picture brightness. Please use the left/right button on the keyboard or in the speed dome terminal menu to set.
  • Page 22  PRIVACY MASK: Here you can set the privacy mask number and etc. It includes the third menu. Please move the cursor to the current item and then click the confirm button to go to the next interface.  PTZ SPEED: It is to set PTZ speed. Please use the left/right button to set. ...
  • Page 23  Set preset: Set preset 26 or 92 to set scan left limit. Set preset 27 or 93 to set scan right limit. Set preset 22 or 79 to begin record. Set preset 23 or 80 to stop record. 3.4.4.2 Pan ：5 PAN SPEED CALL...
  • Page 24  TOUR SETTING: Move the cursor to TOUR setting item and then click confirm button. You can see the following interface. Here you can add or remove the preset, and set the corresponding dwell time and call speed. PRESET DWELL SPEED …...
  • Page 25  CALL：Here is to activate pattern. Input pattern number, move the cursor to CALL and click confirm button, system begins running pattern.  STOP: Here is to stop current pattern. Input pattern number, move the cursor to STOP and click confirm button.
  • Page 26 Please enter privacy mask menu. Move the cursor to PRIVACY NO, please use left/right key to set different privacy zones. For example, shift to 001 section and then move the cursor to PRIVACY MASKING. Secondly, click OK button to go to the setup interface. Now there is a privacy zone in the screen centre. Operate PTZ to move the camera screen so that the centre of the object you want to shield is overlaying with the centre of the screen.

  • Page 27: Alarm Setting

     PASSWORD: Enable this function here so that you set password is valid. This function is on by default after you set password.  SETTING: Click the confirm button to go to the password setup interface. Please use the left/right button to set the value and then click the confirm button to confirm current option.

  • Page 28: Can Not Use Coaxial Cable To Control The Speed Dome

    From menu to SYSTEM INFORMATION, move cursor to RESTART and click confirm button. This reboot will not modify all activated setup (such as preset, tour and pattern) 3.5.3 Can not use coaxial cable to control the speed dome From DVR main menu->setting->PTZ, check the control mode (HD AVS) and the protocol (DH-SD1). Click Save button to exit.

  • Page 29: Cable Connection

    4 Cable Connection 4.1 Cable Connection The speed dome combination cable includes video cable connection port, RS485 connection port, alarm input and output port, and power cable connection port. Please refer to the label for detailed information.  Slight difference may be found in the port amount since some functions are optional. Name Function 485-A.

  • Page 30: System Layout

    Sheet 4-2 4.2 System Layout 4.2.1 System Connection 4.2.1.1 BUS connection Please refer to Figure 4-1 for system connection information. Figure 4-1 Note: Please use shielded twisted pair. The shielded layer shall connect to GND firmly; otherwise it may affect communication or video work.

  • Page 31: Keyboard Connection

    Figure 4-3 4.2.3 Keyboard Connection This series HD AVS speed dome supports keyboard operation. You can use keyboard to control the dome and PTZ. The display and control can work simultaneously. One keyboard can control maximum 255 speed domes. Please refer to Figure 4-4. Figure 4-4 Speed dome protocol is open and supports multiple popular system platforms in today’s market.

  • Page 32: Faq

    5 FAQ 5.1 Daily Maintenance Please clean dome cover regularly to get vivid image. Handle the cover with care. Use water to wash. Don’t use cloth to clean. Use mild detergent to clean if there is too much dust. Note: The sweat from your hand may erode plating surface, your nail may scrape dome cover result in blur image.

  • Page 33: Appendix Ⅰ Lightening Protection And Surge Protection

    6 Appendix Ⅰ Lightening Protection and Surge Protection This series speed dome adopts TVS lighting protection technology. It can effectively prevent damages from various pulse signals below 4000V, such as sudden lighting and surge. While maintaining your local electrical safety code, you still need to take necessary precaution measures when installing the speed dome in the outdoor environment.

  • Page 34: The Transmission Distance

    7 Appendix 2 The Relationship between the 24V AC Cable Diameter and the Transmission Distance It is the recommended transmission distance when the cable diameter is fixed and the 24V AC power consumption is below 10%. For the AC device, the max permission voltage power consumption is 10%. For example, when a device of rated power 80VA installed from the transformer 35 inches (10m), then the min cable diameter is 0.8000mm.
  • Page 35 8 Appendix 3 Wire Gauge Reference Sheet Metric bare wire Bare wire cross diameter section （mm） （mm ） 0.050 0.00196 0.060 0.00283 0.070 0.00385 0.080 0.00503 0.090 0.00636 0.100 0.00785 0.110 0.00950 0.130 0.01327 0.140 0.01539 0.160 0.02011 0.180 0.02545 0.200 0.03142 0.230...
  • Page 36 9 Appendix 4 Toxic or Hazardous Materials or Elements Toxic or Hazardous Materials or Elements Component Name Cr VI PBDE ○ ○ ○ ○ ○ ○ Sheet Metal ○ ○ ○ ○ ○ ○ Plastic Parts ○ ○ ○ ○ ○...
  • Page 37 Note  This manual is for reference only. Slight difference may be found in the user interface.  All the designs and software here are subject to change without prior written notice.  All trademarks and registered trademarks mentioned are the properties of their respective owners.
