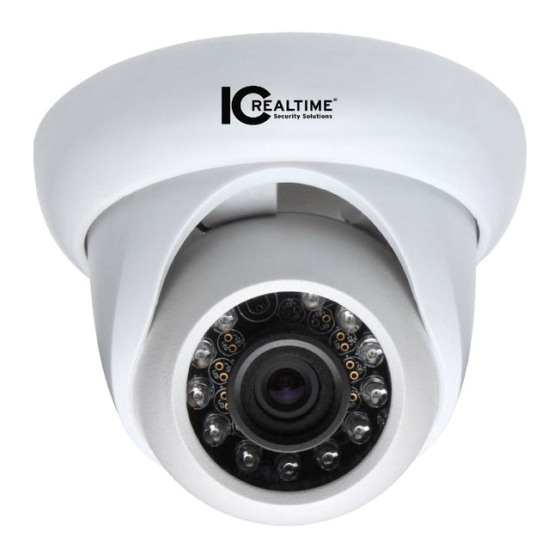

- Page 1 1 Megapixel HD AVS Camera User’s Manual Version 1.1.0...
-
Page 2: Table Of Contents
Table of Contents General Introduction ......................1 Overview ........................1 Features ........................1 Functions ........................1 Specifications ......................1 Framework ..........................3 Installation ..........................4 Menu ............................6 Menu List ........................6 Note ........................... 7 Appendix Toxic or Hazardous Materials or Elements ............... 8... - Page 3 Welcome Thank you for purchasing our HD AVS camera! This user’s manual is designed to be a reference tool for your system. Please read the following safeguard and warnings carefully before you use this series product! Please keep this user’s manual well for future reference!
-
Page 4: Important Safeguards And Warnings
Important Safeguards and Warnings 1．Electrical safety All installation and operation here should conform to your local electrical safety codes. The power shall conform to the requirement in the SELV (Safety Extra Low Voltage) and the Limited power source is rated 12V DC in the IEC60950-1. We assume no liability or responsibility for all the fires or electrical shock caused by improper handling or installation. - Page 5 Please shut down the device and then unplug the power cable before you begin daily maintenance work. Use the dry soft cloth to clean the device. If there is too much dust, please use the water to dilute the mild detergent first and then use it to clean the device. Finally use the dry cloth to clean the device. Please put the dustproof cap to protect the CMOS component when you do not use the camera.
-
Page 6: General Introduction
1 General Introduction 1.1 Overview This series megapixel HD camera conforms to the HD AVS standard. It supports video signal high-speed long distance transmission without any delay. It can be controlled by the DVR conforming to the HD AVS. 1.2 Features High-performance CMOS image sensor, megapixel definition. - Page 7 Model 1 Megapixel HD AVS Camera Parameter AVS-D2110 1/3" 1.3 Megapixel CMOS Video Processor PAL/NTSC Video Format 1280(H)×960(V) Effective Pixel Min Illumination 0.01Lux@（F1.2，AGC ON），0 Lux with IR 4/30~1/54,000s Electronic Shutter Video Standard HD AVS/CVBS compliance 1280×720@25 fps；1280×720@30 fps； Video Frame Rate 1280×720@50 fps；1280×720@60 fps...
-
Page 8: Framework
2 Framework Please refer to the following figures for the dimension information. The unit is mm. See Figure 2-1. Figure 2-1 When the standard definition/high definition switch control cable is short circuit, system outputs standard definition video. Otherwise, when the circuit is open, system outputs the high definition video. -
Page 9: Installation
3 Installation Important Before the installation, please make sure the installation surface can sustain at least 3X weight of the bracket and the camera. Step1 Please take the installation position map in the accessories bag, and then paste it on the ceiling or the wall according to your monitor area requirements. - Page 10 Do not remove the screw. Loosen a little bit will be OK. Please secure after you completed the setup. Figure 3-2 Step 4 Line up the bulge of the decoration ring to the nick of the camera body and install along the tilt installation.
-
Page 11: Menu
4 Menu 4.1 Menu List The 1 Menu The 2 Menu The 3 Menu EXPOSU GLOBAL MODE CENTRE CENTRE WEIGHT FRONT LIGHT DISTINGUI RETURN AWB-GW MODE AWB-CCT AWB-PRO AWB- TEMPORAL AWB-AI AWB-SZ AUTO &NIGHT B&W COLOR FUNCTI 3D-NR ON/OFF RETURN ADVANC MIRROR OFF/HORIZ... -
Page 12: Note
The 1 Menu The 2 Menu The 3 Menu EDGE AUTO/MANUAL VALUE 0-15（For manual mode only） RETURN CONTRA 0-255 SATURA 0-15 TION BRIGHT 70-250， NESS RETURN EXIT SAVE CANCEL RESET 4.2 Note Parameter Function 3D NR It is to reduce video noise. The larger the number is, the lower the noise is. -
Page 13: Appendix Toxic Or Hazardous Materials Or Elements
Appendix Toxic or Hazardous Materials or Elements Toxic or Hazardous Materials or Elements Component Name Cr VI PBDE Circuit Board ○ ○ ○ ○ ○ ○ Component Device Construction ○ ○ ○ ○ ○ ○ Material Wire and Cable ○ ○...
