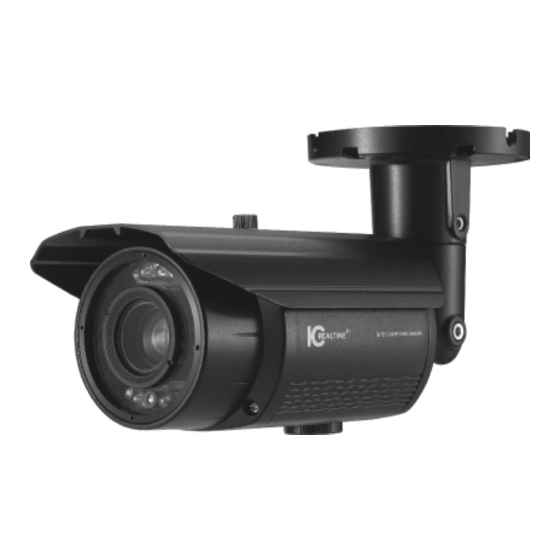

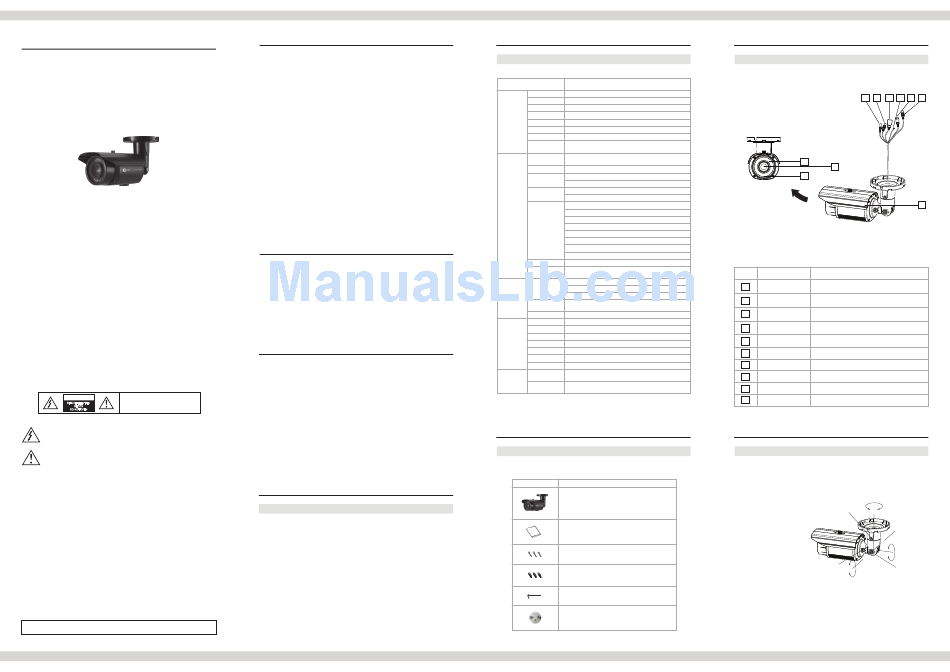

IC Realtime ELIP-3000N Quick Installation Manual

2MP 12X SMART ZOOM SUPER NIGHT VISION OUTDOOR CAMERA
QUICK INSTALLATION GUIDE
ELIP-3000N
NIGHT VISION OUTDOOR
Please read this manual carefully before installation and operation of the product.
Dear Customers!
By selecting this product, you have decided to use a professional device that
guarantees highest quality and reliability. We would like to thank you very much
for your confidence and kindly ask you to read the following instructions carefully
before installation and operation in order to take full advantage of all quality
features regarding this product.
CAUTION
CAUTION
TO REDUCE THE RISK OF ELECTRIC SHOCK,
RISK OF ELECTRIC DO NOT REMOVE THE COVER (OR BACK).
SHOCK NO USER SERVICEABLE PARTS INSIDE.
DO NOT OPEN REFER SERVICING TO QUALIFIED PERSONNEL.
The lighting flash with an arrowhead symbol, within an equilateral triangle
is intended to alert the user to the presence of non-insulated dangerous
voltage within the product's enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the
user to the presence of important operating and maintenance (servicing)
instructions in the literature accompanying the appliance.
INFORMATION
This equipment has been tested and found to comply with limits for a Class A
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at
its own expense.
WARNING
Changes or modifications not expressly approved by the manufacturer could void
the user's authority to operate the equipment.
CAUTION – To prevent electric shock and risk of the fire hazards
- Do NOT use power source other than that specified.
- Do NOT expose this appliance to rain or moisture.
Trademarks
All names used in this manual for hardware and software are probably registered
trademarks of respective companies.
This installation should be made by a qualified service person and should
conform to all local codes.
Precautions
• Please read the manual carefully before the installation in order to set up the
camera correctly and to obtain the best picture quality.
• Please keep the manual in good condition for your future reference and service
application.
• Installation and services should be only carried out by an authorized personnel
according to local safety regulations.
• If any liquid or solid matter gets into the housing, immediately disconnect the
camera from power supply and have it checked by your authorized dealer before
reusing.
• Avoid installing the camera at extremely hot or cold places.
• If you are not a certified person, never try to dismantle the camera.
To avoid electric shock, never remove the screws or covers.
There are no parts inside that need maintenance by the user.
All maintenance should be carried out by qualified personnel.
• Avoid installing the camera at a place of high humidity.
• Avoid installing the camera at the place exposed to gas or oil.
• Keep the top glass of the lens always clean in order to obtain the best picture
quality all the time. Be careful not to be stained by fingerprint.
• Don't face the camera directly toward sunlight or sunlight reflecting area.
IMAGE SENSOR may go defective at this condition.
• Please give a special attention to keep the unit from dangerous drop or external
shock during the process of transportation or handling.
• Never try to touch the camera in wet hand. It may cause an electric shock.
• Do not expose the camera to radioactivity. It causes a serious damage on the
IMAGE SENSOR.
Limitation of liability
This publication is provided "AS IS" without warranty of any kind, either express or
implied, including but not limited to, the implied warranties of merchantability,
fitness for any particular purpose, or non-infringement of the third party's right.
This publication could include technical inaccuracies or typographical errors.
Changes are added to the information herein, at any time, for the improvements
of this publication and/or the corresponding product(s).
Disclaimer of warranty
In no event shall seller be liable to any party or any person, except for
replacement or reasonable maintenance of the product, for the cases, including
but not limited to below:
(1) Any damage and loss, including without limitation, direct or indirect, special,
consequential or exemplary, arising out of or relating to the product;
(2) Personal injury or any damage caused by inappropriate use or negligent
operation of the user
(3) Unauthorized disassemble, repair or modification of the product by the user;
(4) Inconvenience or any loss arising when images are not displayed, due to any
reason or cause including any failure or problem of the product;
(5) Any problem, consequential inconvenience, or loss or damage, arising out of
the system combined by the devices of third party.
(6) Any claim or action for damages, brought by any person or organization
being photogenic subject, due to violation of privacy with the result of that
surveillance-camera's picture, including saved data, for some reason,
becomes public or is used for the purpose other than surveillance.
1. PRODUCT OVERVIEW
KEY FEATURES
• 2 Mega pixel 1/2.8" SONY progressive scan CMOS image sensor for excellent
image quality (Exmor)
• 5~60mm Motorized Megapixel Lens
• 50M IR Beam Distance
• Smart Focus Function
• Multi Streaming of H.264 and MJPEG
• Supports image resolution up to 30fps @ 1920x1080 (FHD)
• Supports CBR and CVBR modes
• Controllable frame rate
• Privacy Masking up to 8 area
• WDR using frames of Long and Short exposure
• Supports Defog, 2D+3DNR, Sense-Up
• Digital PTZ
• 12VDC / IEEE802.3af POE
• Conformant with ONVIF
• Includes Windows based IP Installer and license-free 16 channel NVR
(Network Video Recorder) software
1. PRODUCT OVERVIEW
SPECIFICATION
Classification ELIP-3000N
Image Sensor 2.0 Megapixel 1/2.8" Sony progressive scan CMOS image sensor
Total Pixels 1952(H) x 1116(V) 2.18 Megapixel
Effective Pixels 1944(H) x 1104(V) 2.14 Megapixel
S/N Ratio 50dB
Pickup Min. Illumination 0Lux (IR On)
IR Distance 50M
Day & Night ICR Filter Changer
5~60mm Motorized
Lens
Megapixel Lens
Video
H.264 High profile @ Level 4.0, Motion JPEG
compression
Resolution Max 1920 x 1080
H.264 : 30fps @ 1920 x 1080P
Frame rate
MJPEG : 30fps @ VGA
Dual Stream : H.264, MJPEG
Bit rate Control
H.264: CBR / CVBR
Day & Night
Auto White Balance
Video
Auto Exposure
Privacy Mask
Image setting
WDR (Off / Low / Middle / High)
Defog (On / Off)
Smart IR (Off / 0~16)
3DNR (On / Off)
Output (Optional) BNC x1, 1.0Vp-p, 75 ohm Composite Video, NTSC / PAL
Alarm In / Out
In : 1, Out : 1
(Optional)
Password protection
Security User access log
HTTPS encryption
Network
HTTP, HTTPS, FTP, SMTP, UPnP, DNS, DDNS, NTP, RTSP, RTP,
Protocol
TCP, UDP, ICMP
Intelligent video Motion detection with 4 x 3 blocks
Power source DC 12V / 1.5A, PoE (Power over Ethernet): 802.3af
Storage (Optional) Micro SD Slot
Power Consumption Max 11W (IR On)
Physical Net Weight 2600g
Status LED N/A
Reset Button Factory Reset
Dimension (mm) 104.3(Ø) x 137.3(H) x 333.3(D)
Operating
-10°C ~ 50°C
Temperature
Environment
Storage
-20°C ~ 60°C
Temperature
※ Specifications are subject to change without prior notice for improvement.
2. NAME AND FUNCTION OF EACH PART
2.1 PACKAGE CONTENTS
2.1.1 ELIP-3000N
APPEARANCE DESCRIPTION
IP Camera x 1
Installation Guide x 1
Tapping screws x 3
Plastic anchor x 3
L-Wrench x 1
CD x 1
2. NAME AND FUNCTION OF EACH PART
2.2 NAME AND FUNCTION
2.2.1 ELIP-3000N
1 1 2 2 3 3 4 4 5 5
7
9
10
NO. ITEM DESCRIPTION
1 Audio-In Audio in (RED)
2 Audio-Out Audio out (WHITE)
Network and POE
3 PoE (Power over Ethernet) and Lan cable
Connector
4 Sensor In / Alarm Out Sensor In / Alarm out
5 BNC Analog Video Out (YELLOW)
6 Power Connector DC12V
7 IR LED Infrared LED
8 Sunshield
9 Lens Motorized Megapixel Lens
10 Illuminance sensor Control IR LED by sensing light
3. INSTALLATION & CONNECTION
3.1 AXIS ADJUSTMENT
3-Axis mounting mechanism
◆
▪ Rotating axis up to 360 degree
▪ Panning axis up to 360 degree
PAN 360°
▪ Tilting axis up to 180 degree
Pan bolt
① Pan 360˚
Slightly loosen Pan bolt then
ROTATION 360°
adjust pan of the camera using
a serration on the bracket and
Rotation bolt
tighten the bolt firmly.
Tilt bolt
TILT 180°
② Tilt 180˚ ③ Rotation 360˚
Slightly loosen Tilt bolt then Slightly loosen Tilt bolt then
adjust tilt of the camera using
adjust rotation of the camera
a serration on the bracket and using a serration on the bracket
tighten the bolt firmly. and tighten the bolt firmly.
6 6
8
