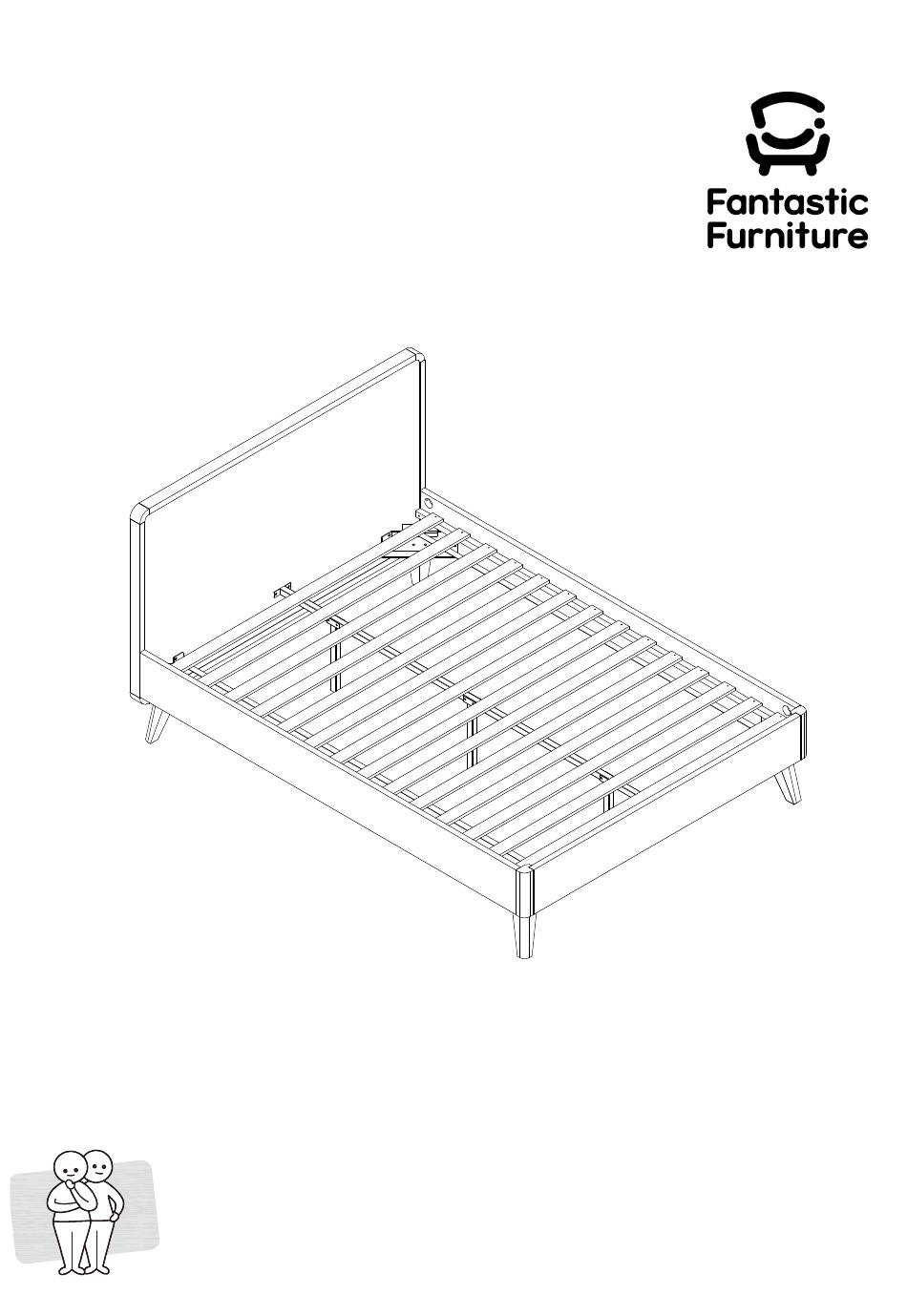

- Page 1 Version 1.0 Retro Two People Bed Double fantasticfurniture.com.au Required...
- Page 2 We’re thrilled you’ve chosen Fantastic Furniture to help create a home you’ll love! Love it? Share it! Fantastic buy! Share how it looks at home on Instagram for you chance to win a $250 Fantastic Furniture Gift Card! @fantasticfurniture fantasticfurniture.com.au Page 2...
-
Page 3: Assembly Checklist
Assembly Checklist Read through the instructions carefully Make sure you have all the required tools. before you begin. Never use power tools unless instructed. Unless instructed, do not fully tighten Identify and lay out all of the screws until the item is fully assembled. components before you begin assembly. - Page 4 What you need to assemble the product Othe tools you need Phillips head screwdriver; Mallet (P7) Headboard (P1) Slats (P9) Bracket (P8) Side Rail (P8) (P4) Centre Rail Support Leg (P8) (P5) (P6) Leg (P7) (P6) Leg (P7) Side Rail (P6) (P3) (P8)
- Page 5 Hardware Pack 6 x Bolts 52 x Small Bolts 8 x Dowels 4 x Felt Feet 8 x Big Bolt (H1) (H2) (H3) (H4) (H5) M6x40 mm M6x16 mm Ø8x80 mm 1 x Wrench 8 x Half Moon 8 x Spring 8 x Nuts 1 x Allen Key (H6)
- Page 6 Step 1 You will need M6x40 mm 1 x Allen key 6 x Bolts (H10) (H1) 1 x Small 6 x Flat wrench (H13) washers (H12) (P6) (P5) 6 x Small spring 6 x Small nuts washers (H14) (H15) (P5) (P6) (P6) (P6)
- Page 7 Step 2 You will need 8 x Dowels Mallet (H3) (P4) (P3) Insert 4 x dowels (H3) into side rails (P3) & (P4). Use a mallet to gently tap the dowels into place if needed. fantasticfurniture.com.au Page 7...
- Page 8 Step 3 You will need Ø8x80 mm 8 x Big bolts (H5) (P1) (P2) Screw 4 x big bolts (H5) into headboard (P1) as shown. Screw 4 x big bolts (H5) into footboard (P2) as shown. fantasticfurniture.com.au Page 8...
- Page 9 Step 4 Two People You will need Ensure arrow points towards Headboard (P1) 4 x Spring 4 x Half moon washers (H8) washers (H7) Required 1 x Wrench 4 x Nuts (H6) (H9) (P4) (P1) (P1) (P4) (P3) Attach side rails (P3) & (P4) onto headboard (P1) using 2 x half moon washers (H7), 2 x spring washers (H8) and 2 x nuts (H9), using wrench (H6) tighten nuts (H9) as shown.
- Page 10 Step 5 Two People You will need 4 x Spring 4 x Half moon washers (H8) washers (H7) Required 4 x Nuts 1 x wrench (P2) (H6) (H9) (P3) these holes at the bottom these holes at the bottom (P3) (P2) (P4) Attach side rails (P3) &...
- Page 11 Step 6 You will need M6x16 mm 1 x Allen key 24 x Small (H10) bolts (H2) 4 x felt feet (H4) (P8) (P8) (P7) (P7) (P7) (P8) Attach bracket (P8) onto each leg (P7) with 6 x small bolts (H2) as shown, then tighten with allen key (H10).
- Page 12 Step 7 Two People You will need M6x16 mm 1 x Allen key 4 x Small bolts (H10) (H2) Required (P1) (P5) (P2) (P1) (P5) Carefully turn over the bed frame onto its side. Attach centre rail (P5) onto headboard (P1) and footboard (P2) with 4 x small bolts (H2), using allen key (H10) as shown.
- Page 13 Step 8 Two People You will need M6x16 mm 1 x Allen key 24 x Small Required (H10) bolts (H2) (P8) (P1) (P8) (P4) (P7) Attach each bracket (P8) onto bed frame with 6 x small bolts (H2) as shown, then tighten with allen key (H10).
- Page 14 Step 9 Two People You will need #8x25 mm Required 28 x Screws (H11) (P1) (P9) (P4) (P9) (P9) Carefully turn the bed back onto it’s feet. Attach slats (P9) onto bed frame with 28 x screws (H11) using a phillips head screwdriver as shown.
-
Page 15: Job Complete
Step 10 Job complete! In the interest of our environment please dispose of all packaging thoughtfully. fantasticfurniture.com.au Page 15...
