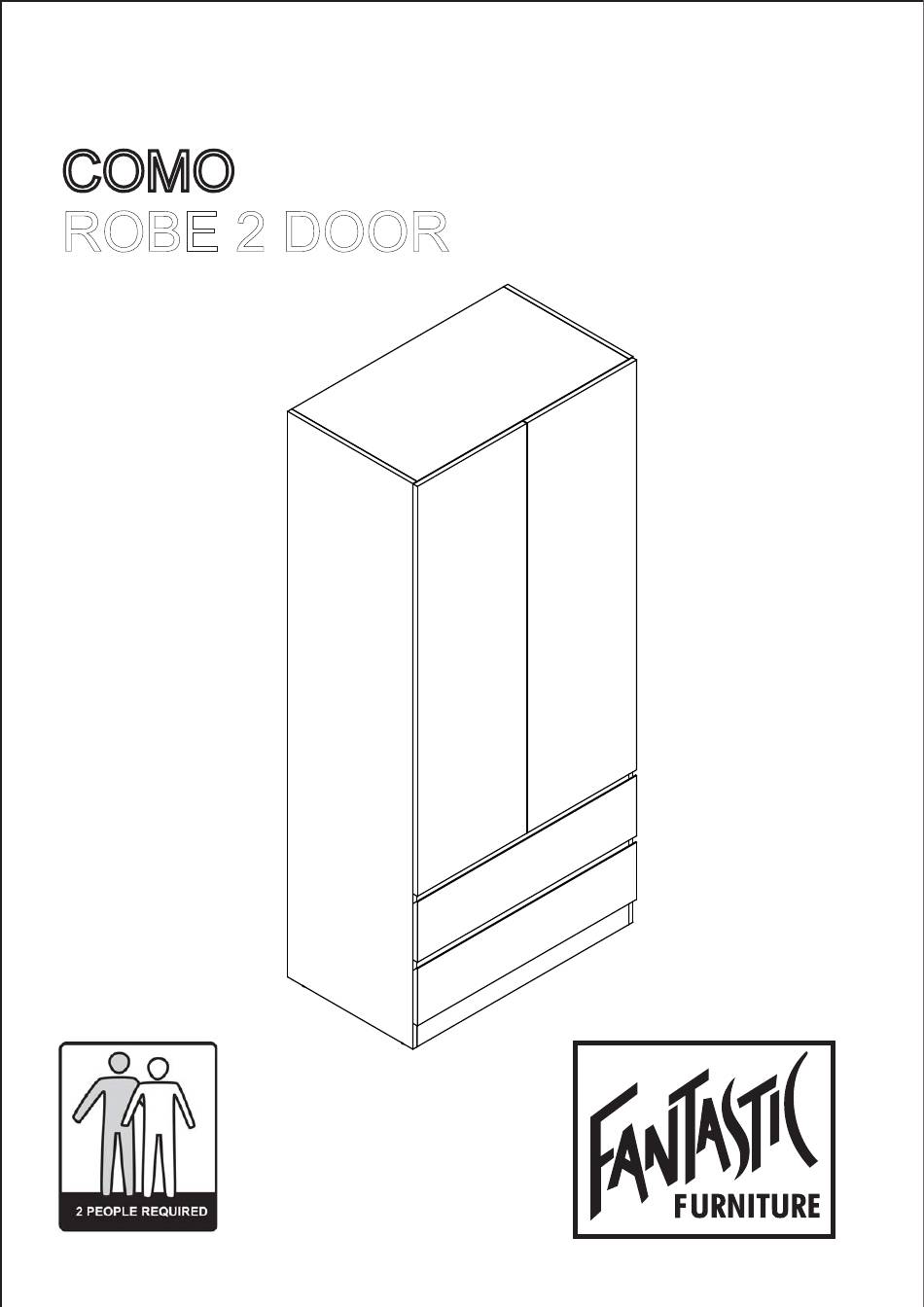

- Page 1 Assembly Instructions COMO ROBE 2 DOOR...
- Page 2 WARNING WARN NG FAILURE TO FOLLOW THESE BASIC STEPS CAN LEAD TO DAMAGE THAT IS NOT COVERED BY YOUR WARRANTY Lay out all of the components on a soft surface Read Instructions carefully. as if you were preparing to do a jigsaw puzzle. Check no parts are missing.
- Page 3 What You Need To Assemble The Body Top Panel (P1) (Tools not provided) Flat BladeScrewdriver Back Phillips Head Screwdriver Panel Mallet Right Side (P20) Back Panel Panel (P3) (P9) Long Connect Right Stick (P10) Door Left (P13) Door Right Drawer (P12) Rail Side (P16)
- Page 4 Step 1 You will need: 2 x CL Runner Tracks (H6) 2 x CR Runner Tracks (P3) (H7) 12 x Small Screws (H5) (P2) Attach 2 x CL Runner Tracks (H6) to Left Side Panel (P2) and 2 x CR Runner Tracks (H7) to Right Side Panel (P3) with 12 x Small Screws (H5).
- Page 5 Step 3 You will need: 7 x Cam Bolts (H3) (P3) Attach 7 x Cam Bolts (H3) to Right Side Panel (P3) as shown. Step 4 You will need: This is how a cam nut works ..1 x Cam Bolt The head of the cam (P4) (H3)
- Page 6 Step 6 You will need: 2 x Cam Nuts (H4) (P6) (P6) (P2) Insert 2 x Cam Nuts (H4) into the holes of 2 x Rails (P6). Rotate the cam nuts so the arrows point towards the incoming cam bolts. Attach 2 x Rails (P6) to Left Side Panel (P2), then tighten the cam nuts.
- Page 7 Step 8 You will need: (P1) 4 x Cam Nuts (H4) (P4) (P8) (P2) Insert 4 x Cam Nuts (H4) into the holes of Panels (P1,P4,P8). Rotate the cam nuts so the arrows point towards the incoming cam bolts. Attach Panels (P1,P4,P8) to Left Side Panel (P2), then tighten the cam nuts. Step 9 You will need: (P3)
- Page 8 Step 10 20mm You will need: 28 x Small Screws (H5) (P10) (P2) (P9) 6 x Plastic Glides (H21) (P20) (P11) (P3) CAREFULLY ROLL ONTO FRONT Join Back Panels (P9,P20) with Long Connect Stick (P10) and Short Connect Stick (P11), then put into the groove on the back of the carcase, colour faces inside, attach it with 28 x Small Screws (H5).
- Page 9 Step 12 You will need: 2 x Clothes Hanger Support (H14) 1 x Clothes Hanger (H15) (P3) 4 x Timber Screws (H17) (P2) CAREFULLY LIFT ONTO FEET Attach 2 x Clothes Hanger Support (H14) to Side Panels (P2) and (P3) with 4 x Timber Screws (H17), then put 1 x Clothes Hanger (H15) into the clothes hanger support.
- Page 10 Step 14 You will need: 5 x Small Cam Bolts (H10) Dowel (H1) (P14) Insert 1 x Dowel (H1) into Drawer Front (P14). Attach 5 x Small Cam Bolts (H10) as shown. Step 15 You will need: (P15) (P19) 5 x Small Cam Nuts (H11) (P16)
- Page 11 Step 17 You will need: 6 x Long Screws (P15) (P18) (H2) (P17) (P16) (P14) Attach Drawer Back (P18) to Drawer Sides (P15,P16) with 4 x Long Screws (H2), then attach Drawer Back (P18) to Support Rail (P19) with 2 x Long Screws (H2). Make sure that the groove lines up the whole way around the drawer.
- Page 12 Step 20 Put the drawers into the chest. Please make sure your chest is sitting squarely on the floor,then tighten all the screws and bolts – being careful not to over tighten Page 12...
- Page 13 Step 21 We strongly advise that you use the wall safety strap provided to prevent the unit toppling You will need: 1 x Safety Strap (H18) 1 x Screw (H19) 20mm 1 x Washer (H20) Use Screw (H19) and Washer (H20) to connect Safety Strap (H18) on Top Panel (P1).
- Page 14 Step 23 You will need: OPTIONAL STEP TO LEVEL WARDROBE ON UNEVEN FLOOR 1 x Wedge (H22) SNAP Insert the wedge (H22) under the wardrobe at the point where the floor is lowest. Push in until wardrobe is level, then snap off the excess wedge sections. Page 14...
- Page 15 Page 15...
