Summary of Contents for fantastic furniture STAR WARS CUPBOARD RD D2

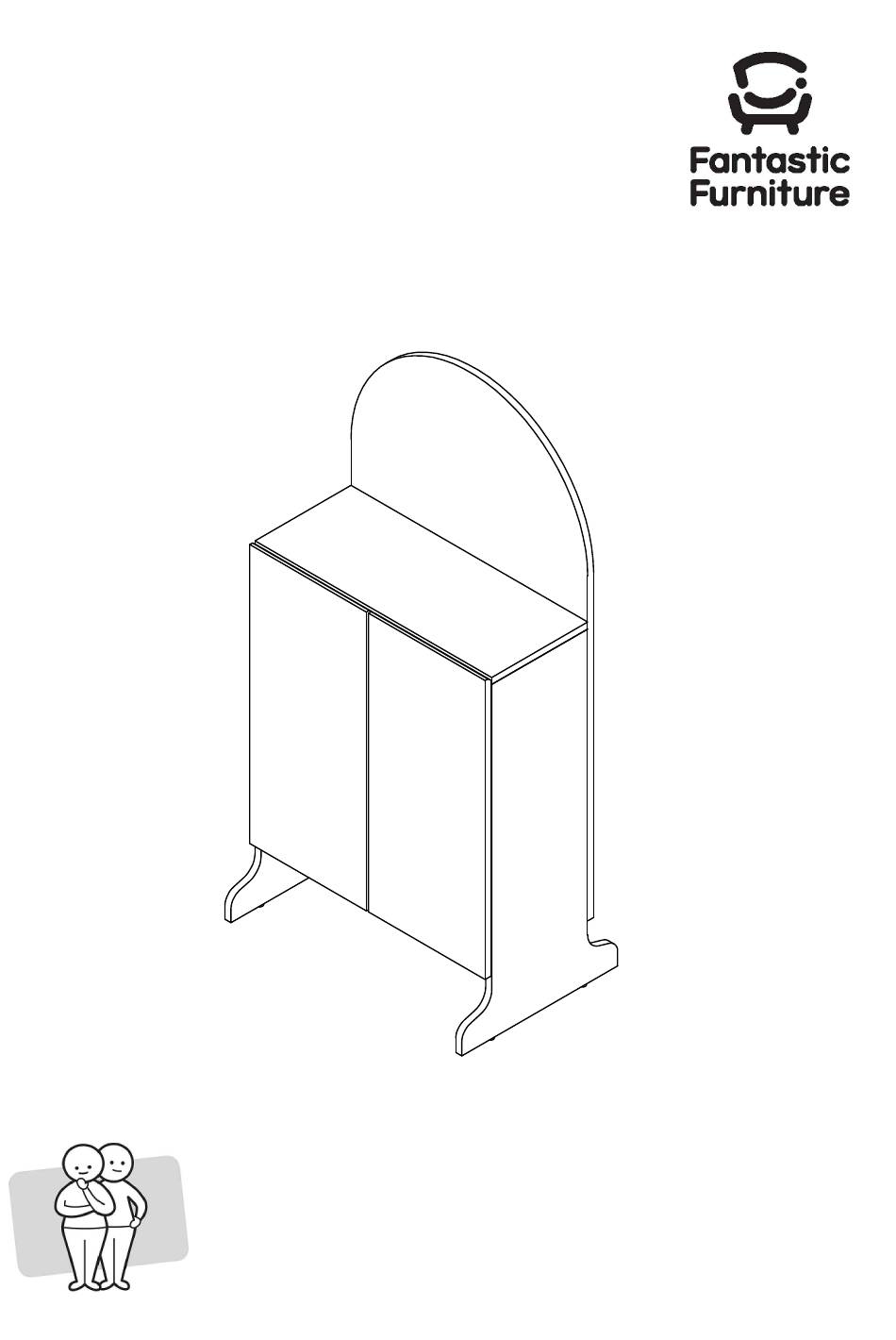

- Page 1 Version 1.0 TWO PEOPLE STAR WARS CUPBOARD RD D2 REQUIRED www.fantasticfurniture.com.au...
- Page 2 WARNING: ENSURE THE WALL STRAP IS ATTACHED TO AVOID SERIOUS INJURY. To avoid any serious or fatal injury, this product has been provided with a wall strap to prevent toppling. We strongly recommend that this product is permanently fixed to the wall or other suitable surface. Fixing devices are not included since different surface materials require different attachments.
-
Page 3: Assembly Checklist
Assembly checklist Make sure you have all the required tools. Read through the instructions carefully Never use power tools unless instructed. before you begin. Unless instructed, do not fully tighten screws Identify and lay out all of the components until the item is fully assembled. before you begin assembly. -
Page 4: What You Need
What you need to assemble the product Back Panel (P7) Side Panel L (P1) Shelf Panel (P4) Top Panel (P6) Other tools you need Phillips head screwdriver, soft head mallet. Parts list Door Panel L Box 1:Side Panel L (P1); Side Panel R (P2); Base (P8) Panel (P3);... - Page 5 Step 1 You will need 4 x Cam Nut 4 x Cam Bolt 15mm(H1) (H2) Philips Head Screwdriver - Insert 4 x cam nuts (H1) into panels (P1) & (P2) x 2. - Rotate the cam nuts, so the arrow points towards the incoming cam bolt (H2). - Screw 4 x cam bolts (H2) into panels (P1) &...
- Page 6 Step 3 You will need 4 x Cam Nut 4 x Cam Bolt 15mm(H1) (H2) Philips Head Screwdriver - Insert 4 x cam nuts (H1) into panel (P3). - Rotate the cam nuts, so the arrow points towards the incoming cam bolt (H2). - Screw 4 x cam bolts (H2) into panel (P6) using a philips head screwdriver.
- Page 7 TWO PEOPLE Step 5 You will need REQUIRED Philips Head Screwdriver - Attach panels (P3) & (P5) to panels (P1) & (P2), aligning the cam bolts and dowels with their corresponding holes. The raw edge of panel (P5) should face panel (P3). - Turn the cam nuts on panel (P3) clockwise with a philips head screwdriver to lock in position.
- Page 8 TWO PEOPLE Step 7 You will need REQUIRED 6 x Long Screw Philips Head M4x45mm (H4) Screwdriver - Align the holes on the printed side of panel (P7) with the dowels on panels (P1), (P2), (P3) and (P6). Push the back panel (P7) and the frame together. - Further attach panel (P7) to panels (P1), (P2), (P3) and (P6) with 6 x long screws (H4) with a philips head screwdriver.
- Page 9 Step 9 You will need 8 x Short Screw 4 x Hinges 95A M3.5x16mm (H5) (H6) Philips Head Screwdriver - Insert hinges (H6) into panels (P8) & (P9) and attach hinges (H6) with 8 x short screws (H5) using the predrilled holes and a philips head screwdriver.
- Page 10 Step 11 TO ADJUST YOUR DOORS TO MAKE THE GAPS MORE EVEN (OPTIONAL). Step 11a Step 11b Step 11c Adjust the door move in or MOVE DOOR IN MOVE DOOR OUT out a little. Top panel Top panel Top panel Door Door : The door should Door : The door should...
- Page 11 We strongly advise that you use the wall safety Step 12 strap provided to prevent the unit toppling over. You will need 2 x Wall Fixing Strap 2 x Long Screw 200mm (H9) M4x45mm (H4) Philips Head Screwdriver - Attach wall fixing strap (H9) to panels (P7) with 2 x long screws (H4). The side of the strap with the large washer should be facing out.
