RadarEye
®
Sets with 7" and 12" Monitor
System manual
No. SM0974110 A 05
08/2013
English
system

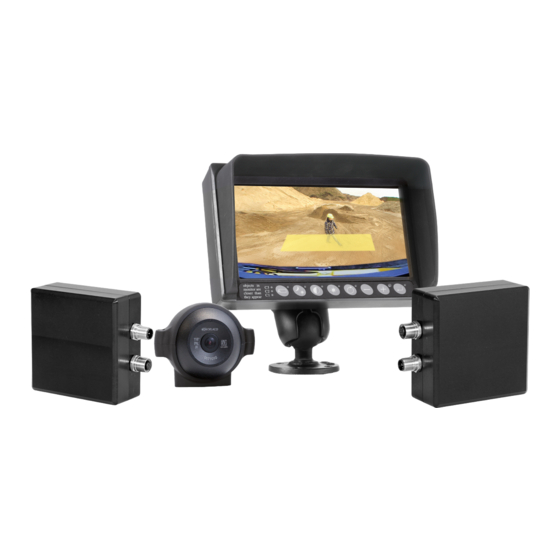

Set with 7" Monitor
Set with 12" Monitor

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RadarEye and is the answer not in the manual?

Questions and answers

Related Manuals for Orlaco RadarEye

Summary of Contents for Orlaco RadarEye

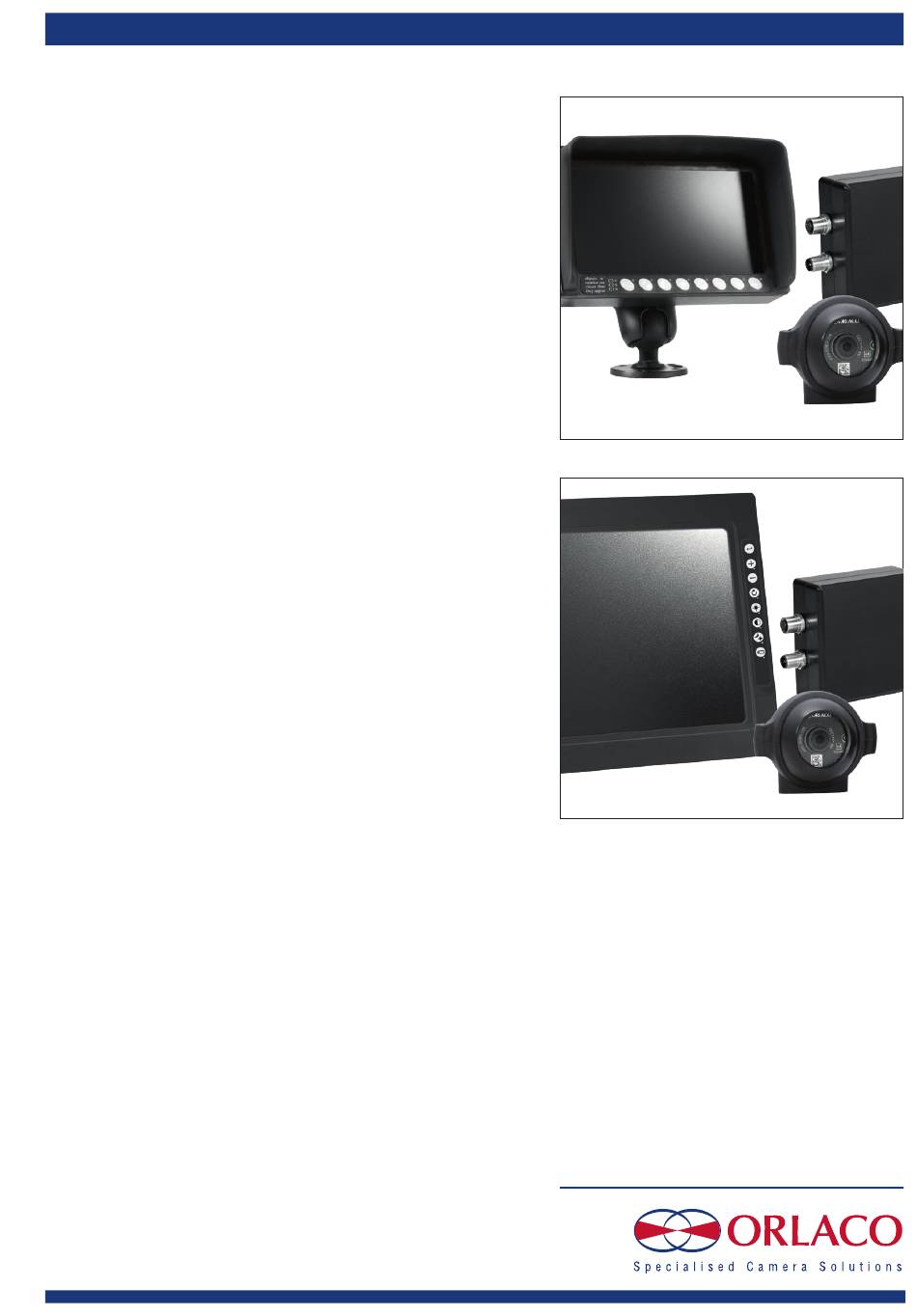

  • Page 1 RadarEye system ® Sets with 7” and 12” Monitor System manual No. SM0974110 A 05 08/2013 English Set with 7” Monitor Set with 12” Monitor...
  • Page 2 If you have any questions or issues concerning the operation of this equipment, consult the relevant section in the manual or contact the Orlaco Products BV Service department. All data subject to change without prior notice. The camera/ Monitor systems from Orlaco comply with the latest CE, ADR and EMC-directive regulations.

  • Page 3: Table Of Contents

    System manual Contents page WARNING 1. Introduction The Equipment will not 2. RadarEye® sets identify objects if the 2.1. 7”/12” Monitor RLED/LEDD CAN SRD 6 radar’s sensor is blocked. 2.2. Interface, Art. No. 0256010 As such, do not block the radar’s 2.3.

  • Page 4: Radareye® Sets

    System manual The RadarEye® System is designed to detect objects in zones obscured from the operator’s view. The pulsed- timedomain radar systems detect stationary as well as moving objects in a desired coverage area as long as the vehicle is moving (engine on is enough movement to also detect stationary objects).

  • Page 5: Cables

    5 wires are con- nected, the extra connection is for communication between Primary and Secondary Sensor. For the camera connection the Orlaco (Uni or Dynamic) 4p cables are used. 2.4 SRD sensor CAN Horizontal 0004310 and SRD sensor CAN Vertical 0004320 The SRD sensor CAN Horizontal is one Sensor, article No.

  • Page 6: Interface Box With Ext. Speaker Can/Srd/Camera

    The 0504820 interface has three outputs: 5p to the Sensor (Primary), 4p to the camera and a 6p connection for the external speaker, which is included.   ORLACO PRESENTS THE The 0504820 interface also features external outputs: RADAR SIGNAL AVAILABLE, These signals are RS232 en RS485 stop indications output...

  • Page 7: Explanation Of The Set Types And Available Parts

    4.1. Set Article No. 0403100 Set SRD Center Rear. which consists of 2 wide beam Sensors (70° beam width, 11° beam height) that work together to guard a wide area, see figure 8. RadarEye set center rear, system overview Camera C Monitor A Set Art.

  • Page 8: Set Article No. 0403120 Set Srd Corner Rear

    4.2. Set Article No. 0403120 Set SRD Corner Rear. which consists of 2 wide beam Sensors (70° beam width, 11° beam height) that work together to guard a rectangular area, see figure 9. RadarEye set corner rear, system overview Camera C Monitor A...

  • Page 9: Available Parts

    System manual 4.3. Available parts For cameras and cable between interface and camera: See catalog HE, OT and FA on www.orlaco.com 0208871 Monitor 7’’ RLED CAN SRD R6 0209110 Monitor 7” RLED CAN SRD 4 CAM 7-4 0208371 Monitor 7’’ LEDD CAN SRD 6 0411300 Set Monitor 12”...

  • Page 10: Specifications And Dimensions

    5-10%, soapy water (min. 50% soap per volume), alkaline degreasing compounds(used in high pressure washing equipment). Certification Quality & environment Units are manufactured by Orlaco in the Netherlands; ISO 9001, ISO14001, ISO-TS16949. Approvals Approvals in compliance with all relevant EMC- and Automotive directives. Certificates available upon request.

  • Page 11: Monitor 7" Rled Can Srd R6

    System manual 5.1. Monitor 7” RLED CAN SRD R6 Article number: 0208871 Cables / Connectors 6m power cable open wired, 6m video cable with 7p molded M16 female connector; Art. no.:8976331. Bracket A clamping user-adjustable mounting bracket is supplied. Art. No. : 2015500. Weight 1,9kg (Monitor, bracket, cables and connectors).

  • Page 12: Monitor 7" Rled Can Srd 4 Cam

    System manual 5.2. Monitor 7” RLED CAN SRD 4 CAM 7-4 Article number: 0209110 Cables / Connectors 2m multicable (power) open wired, 2m Y-cable (video) with molded 7p female connector and molded 4p female connector. Art. no.: 8976751. Bracket A clamping user-adjustable mounting bracket is supplied. Art. No. : 2015510. Weight 1,9kg (LCD, bracket, cables and connectors).
  • Page 13 System manual 5.3. Monitor 7” LEDD CAN SRD 6 Article number: 0208371 Cables / Connectors Cable LEDD 6m serial (power) open wired, 6m multicable (video) with 7p female M16 OEM molded connector. Art. No.: 8975180 Weight 1,2kg (monitor, cables and connector) Dimensions 53,1 46,5...

  • Page 14: Set Monitor 12" Rled Can Srd R6

    Certifi cation Certifi cation Certifi cation Quality & environment Units are manufactured by Orlaco in the Netherlands; ISO 9001: 2000, ISO14001: 2004. Quality & environment Units are manufactured by Orlaco in the Netherlands; ISO 9001: 2000, ISO14001: 2004. Quality & environment Units are manufactured by Orlaco in the Netherlands;...
  • Page 15 System manual Article number: 0411300 Dimensions Connections to the monitor: (Secure the power input with a 5A fuse) 1 = Red = Power input: 12…30V 2 = White = Power input: 0V 3 = Blue = Cam No. 1 activated at 12...30V + Activation Radar on sensor direction 5,6 and 7 4 = Brown = Cam No.

  • Page 16: Interface Box Can/Srd/Camera

    System manual 5.5. Interface box CAN/SRD/camera Article number 0256010 General Interface is designed to connect the Orlaco RadarEye® sets to a Camera and a Monitor. Color Grey RAL7032. Protection Water and Dustproof IP 66 according to IEC 60529. Operating temperature -40°C to +75°C.
  • Page 17 System manual Dimensions Units in mm 7p Male Socket to Monitor 4p Female Socket to Camera 5p Female Socket to RadarEye set Electrical connections 1 = Video 1 = Video 1 = PWR 2 = Video-GND 2 = Video GND...

  • Page 18: Srd Sensor Can Horizontal

    24.150 GHz … 24.250 GHz (high band) France 24.000 GHz … 24.150 GHz (Low band) Japan 24.050 GHz … 24.250 GHz Please consult Orlaco before using this radar in other areas. Max. transmit power 20dBm (EIRP) ETSI 300 / 440 compliant with 250MHz bandwidth.
  • Page 19 System manual Example Sets installation RadarEye set center rear, system overview Camera C Monitor A Set Art. No. 0403100 Primary Secondary Power (green) (red) (red) (green) Terminator Interface RadarEye set corner rear, system overview Camera C Monitor A (red) Set SRD Center Rear, Art. No. 0403100...

  • Page 20: Bracket Srd Sensor Center Rear

    System manual 5.7. Bracket SRD Sensor Center Rear Article number: 0401320 Stainless steel, fully adjustable with mounting position for camera. Dimensions Bracket center rear. Largest turning radius R137 Side view Front view 9,0 12x ∅ Units in mm Bottom view Figure 10 SM0974110 A 05...

  • Page 21: Bracket Srd Sensor Corner Rear

    System manual 5.8. Bracket SRD Sensor Corner Rear Article number: 0401330 Stainless steel, fully adjustable. Dimensions Bracket corner rear, 0° position and 45° position. Units in mm 45° position R47,5 Back side 0° position Figure 11 SM0974110 A 05...

  • Page 22: Interface Box With Ext. Speaker Can/Srd/Camera

    5.9. Interface Box with Ext. speaker CAN/SRD/camera Article number: 0504820 Interface box, (Art. No. 0256070) Gereral Interface is designed to connect the Orlaco RadarEye® sets to a camera, monitor and external speaker. Housing Dimensions 140 x 110 x 35 mm Input/output External output 10A Resistive/24V max.
  • Page 23 Dimensions Units in mm Interface box for speaker CAN/SRD/camera Art. No. 0256070 Side view Top view 6p male connector External speaker RadarEye Art. No. 0256080 102,5 Cable lenght 3000 Side view Back view Front view Electrical connections RadarEye® M12 Monitor...

  • Page 24: Guidelines For Mounting The Sensors

    System manual 6. Guidelines for mounting the Sensors 0004310 Sensor - vertical radar beam The Sensors should be installed in such a way that the possible targets are observed in good order. 11°   The advised position of the Sensors in the “Corner Rear setup”...
  • Page 25 System manual Below graph gives an indication of the vertical tilting angle with the variables of mounting height and detection range. detection range   Example 1: Installation of the corner rear set at a vehicle at 1,0m mounting height mounting angle Sensor and detection range 6m: 4 -31,4°...

  • Page 26: Disposal

    Orlaco. This also applies to the associated drawings and figures. Orlaco reserves the right to make changes to components at any time without informing customers beforehand or directly. All dimensions given are for commercial purposes.
  • Page 27 System manual SM0974110 A 05...
  • Page 28 ORLACO Orlaco is a Manufacturing company that specializes in making cameras and monitor systems for commercial vehicles, fork-lift trucks, cranes, off shore and maritime. Our objective is to design and produce camera systems for the professional market that improve the drivers’ view and increase operating efficiency.
