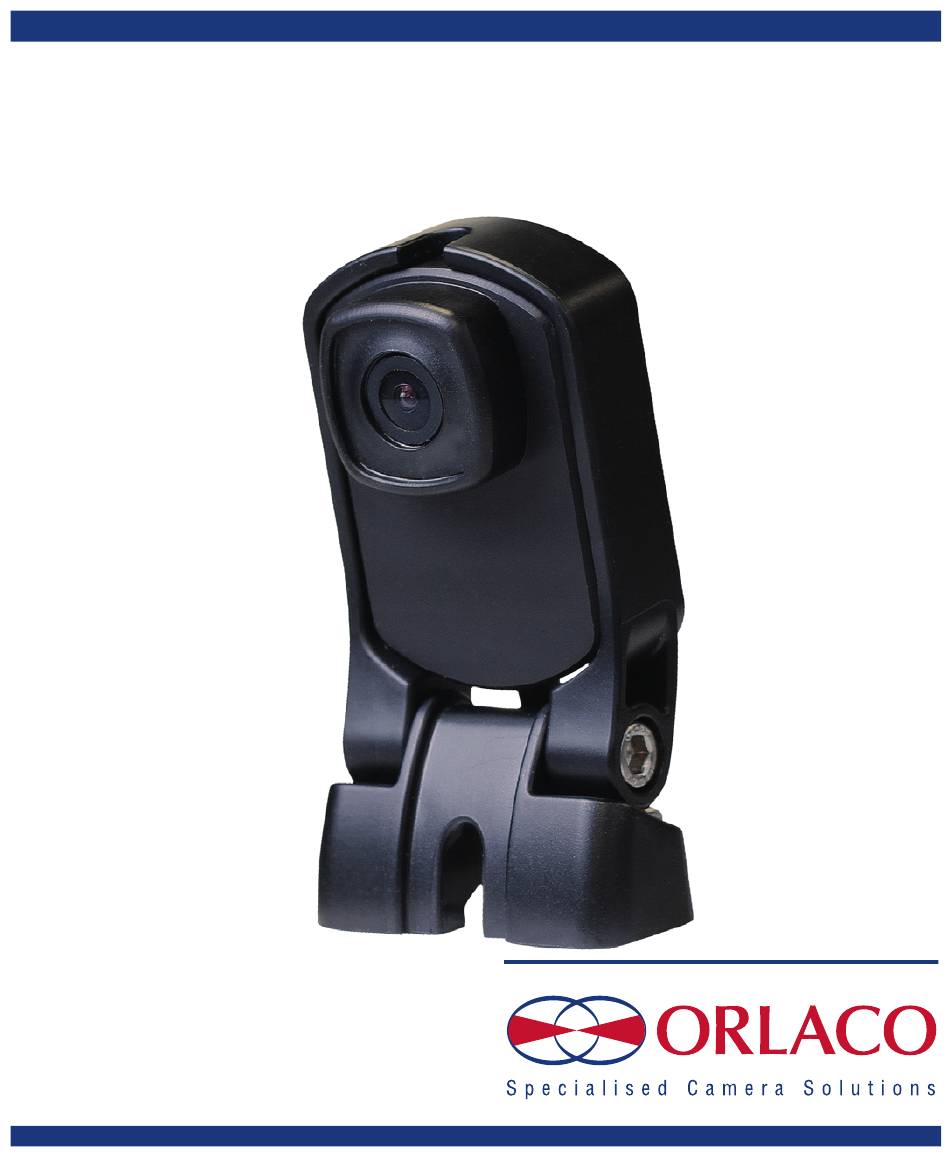

- Page 1 Camera HMOS DigiCoax IR Camera EMOS Ethernet IR Installation manual Including specifications No. IM0973575 A 02 4/2017 English...
- Page 2 If you have any questions or issues concerning the operation of this equipment, consult the relevant section in the manual or contact the Orlaco Products BV Service department. The camera/display systems from Orlaco comply with the latest CE, ADR, EMC and mirror-directive regulations.
-
Page 3: Table Of Contents
Installation manual Contents page 1. Mounting and connecting Camera 1.1. Camera attachment 2. Pin connection 3. Specifications HMOS DigiCoax IR 4. Specifications EMOS Ethernet IR 5. Maintenance and cleaning 6. Disposal 7. General terms and conditions 8. Revision details... -
Page 4: Mounting And Connecting Camera
Installation manual 1. Mounting and connecting Camera 1.1. Camera attachment. Recommendation: The bracket should be tightened with a torque of 6 Nm nominal. (Screw and Bolts). Mounting options Tighten by hand or with very low Bracket adjustment; see figure 1. speed, see figure 2. - Page 5 Installation manual Very important: The supplied serrated washers are to be installed first in the bracket Step 1 Camera HMOS Screw M6 x 40 Camera EMOS Bolt M6 x 25 (2x) Step 2 0,5 m 0,5 m ∅6,5 Min. bend radius (R) = 50mm Figure 2...
-
Page 6: Pin Connection
Installation manual 2. Pin connection Camera HMOS IR Front side of Molded M16 4p + Coax connector: 1 = Black = 0V 2 = Red = Power 3 = Yellow = Aux 1 4 = Grey = Aux 2 5 = Coax core = Video signal 6 = Coax screen = Video GND Front side... -
Page 7: Specifications Hmos Digicoax Ir
Installation manual 3. Specifications Camera HMOS DigiCoax IR 60°/120° Description Lens specified Hor. lens angle Ver. lens angle HMOS 120° Dual band 120° 91° HMOS 60° Dual band 60° 45° Sensor Sensor element: High resolution 1/3” CMOS Digital image sensor, active pixel array 1280H x 960V. - Page 8 Installation manual Electrical Power input: Camera HMOS may only be powered by stable power supply 12V/24V (Orlaco monitor HLED). The camera HMOS has no internal ISO-pulse protection. Power consumption: <2W. Connector/Cable: 0,5m cable with coax and molded male connector (camera power input and video output).
- Page 9 Installation manual Operating temperature: -40°C to +85°C. Storage temperature: -40°C to +125°C. Certification Approvals: Approvals in compliance with all relevant EMC- and Automotive directives. This device complies with Part 15 of the FCC Rules. Operation is subject to the following conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
-
Page 10: Specifications Emos Ethernet Ir
ISO 17215-2014, IEEE 1722 (AVB). IP address: DHCPv4 or static IPv4 (IPv6 possible). Latency: <100ms depending on hardware processing platform (50ms demonstrated on Orlaco hardware). Light sensitivity: responsitivity 5,5V/lux-sec, Low light feature (<0,1Lux). High dynamic range: >115dB. Compression: MJPEG, H.264 (High 10 intra profile encoding). - Page 11 Installation manual Electrical Power input: 12/24V/DC. Below 7V: camera is non-functional. Above 33V the overvoltage protection is activated. This overvoltage-protection is deactivated below 30V. Powercircuit is protected up to 80V/DC. Outputs are Short Circuit Protected. In all these above mentioned values; a tolerance of +/-10% is applied. Power consumption: <2W.
-
Page 12: Maintenance And Cleaning
Truck use: Withstand all fluids and materials used in and around trucks like: ammonia solution 5%, ethanol 80-100%, isopropanol 5-10%, soapy water (min. 50% soap per volume), alkaline degreasing compounds(used in high pressure washing equipment). Operating temperature: -40°C to +85°C Storage temperature: -40°C to +125°C Certification Approvals: In compliance with all relevant EMC- and Automotive directives. -
Page 13: Disposal
All rights reserved. No part of this manual may be reproduced and/or made public in printed form, in photocopy form or on microfilm, or in any other way, without the prior written permission of Orlaco. This also applies to the associ- ated drawings and figures. - Page 14 IM0973575 A 02...
- Page 16 ORLACO Orlaco is a Manufacturing company that specializes in making cameras and monitor systems for commercial vehicles, fork-lift trucks, cranes, off shore and maritime. Our objective is to design and produce camera systems for the professional market that improve the drivers’ view and increase operating efficiency.
