ORLACO
Orlaco is a Manufacturing company that specializes in
making cameras and monitor systems for commercial
vehicles, fork-lift trucks, cranes, off shore and maritime.
Our objective is to design and produce camera systems for
the professional market that improve the drivers' view and
increase operating efficiency.
At our facility in Barneveld we locate our design,
manufacturing, warehousing and service department.
Vision is our mission®. Orlaco therefore deploys the
development, manufacture, supply and service of camera
and display systems that will improve safety and efficiency
of all vehicles, machinery and vessels. Our systems give the end user a view on each blind
spot and will create comfort and improved working conditions. Our active approach will
support market demands and innovations and will lead to enthusiastic ambassadors in the
market; our customers.
For more information: www.orlaco.com
www.orlaco.com

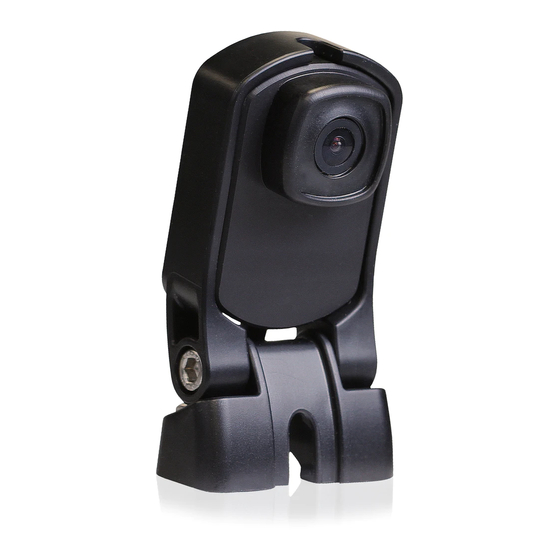

Camera HMOS
Camera EMOS Ethernet
Camera EMOS BroadR-Reach
Installation manual
Including specifications
No. IM0973570 A 05
11/2015
English
