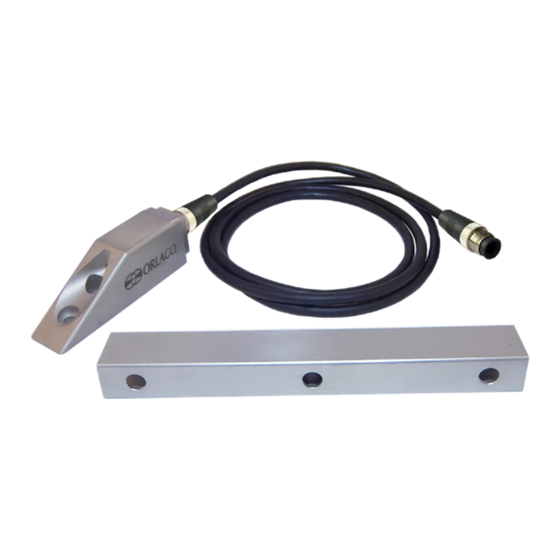

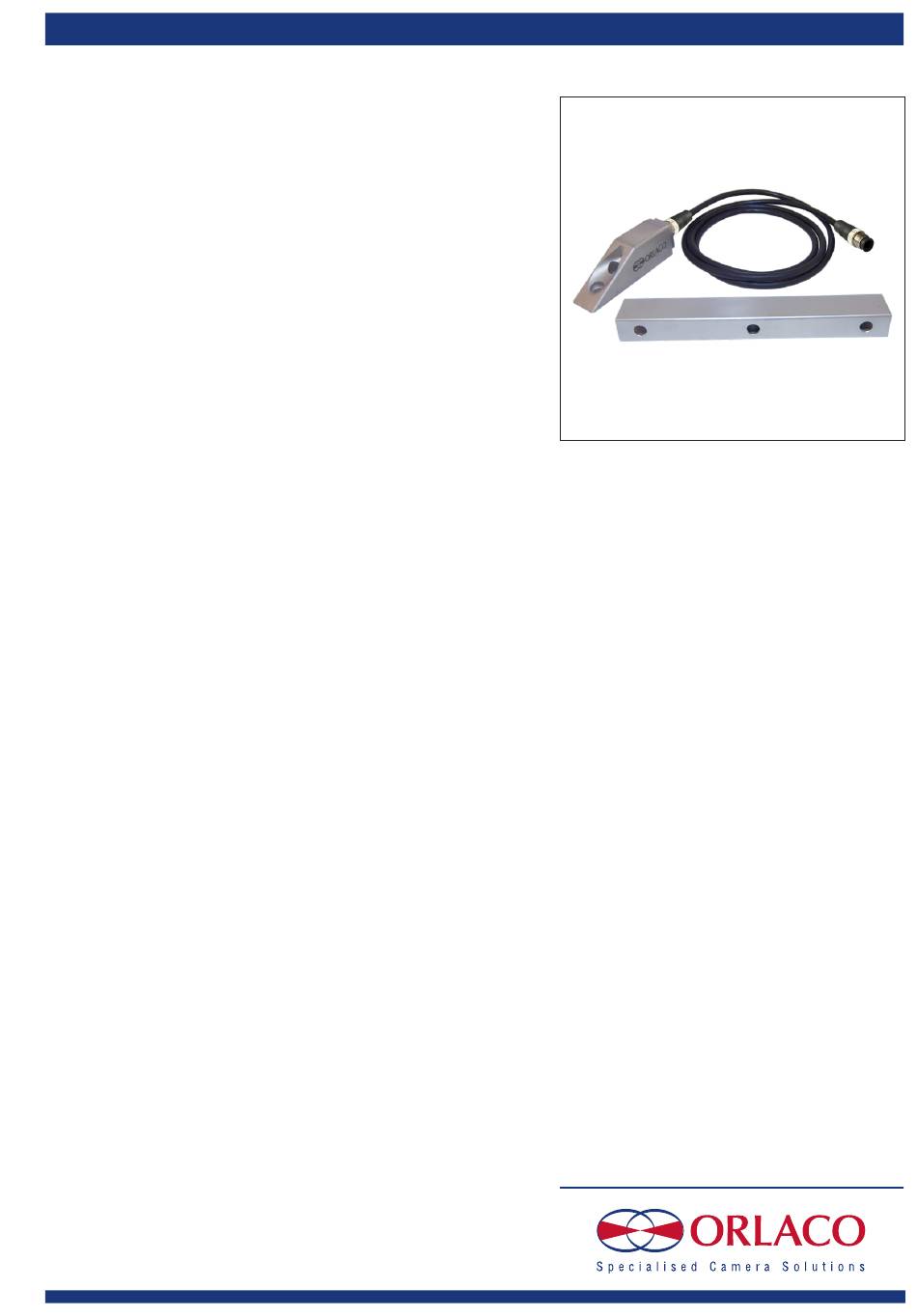

- Page 1 Camera EMOS/CFMC Installation manual Including specifications No. IM0973710 A 01 Article No. 0189000 0189200 5/2022 English...
-
Page 2: Table Of Contents
All data subject to change without notice. All dimensions are for commercial purpose only. The camera/display systems from Orlaco comply with the latest CE, ADR, EMC and mirror-directive regulations, where applicable. All products are manufactured in accordance with the ISO 9001 quality management system, IATF 16949 quality automotive, ISO 14001 environmental management systems, where applicable. -
Page 3: Installation
(see figure 2). The rubber seal must always be mounted under the camera. Figure 1 The Camera may not be mounted without the seal! Orlaco is never liable for any damage of the forks or Note damage caused by malfunctioning forks for installations Camera may NOT be mounted without the formal permission of the fork manufacturer. -
Page 4: Specifications
RTP (MJPEG RFC2435 and H.264 RFC6184) over UDP, ISO17215-2014, IEEE1722 (AVB), ARP. IP address DHCPv4 or static IPv4. Latency <100ms depending on hardware processing platform (50ms demonstrated on Orlaco hardware). Light sensitivity Responsitivity 5,5V/lux-sec, Low light feature (<0,1Lux). High dynamic range >115dB. -
Page 5: Dimensions
Installation manual Article no: 0000000 Serial no: CYM0000 right side view TDK: CXXX0XXX0 Input: 12V/DC Made in The Netherlands FF:FF:FF:FF:FF:FF 98,6 4. Dimensions Article no: 0000000 Serial no: CYM0000 right side view TDK: CXXX0XXX0 Input: 12V/DC Made in The Netherlands FF:FF:FF:FF:FF:FF 98,6 left side view... -
Page 6: Maintenance And Cleaning
Orlaco. This also applies to the associated drawings and figures. Cleaning the lens Orlaco reserves the right to make changes to components at any time without informing customers beforehand or directly. All Use a cotton-wool stick with Loctide 7063 dimensions given are for commercial purposes. - Page 7 ORLACO Orlaco is a Manufacturing company that specializes in making cameras and monitor systems for commercial vehicles, fork-lift trucks, cranes, off shore and maritime. Our objective is to design and produce camera systems for the professional market that improve the drivers’ view and increase operating efficiency.
