Summary of Contents for Orlaco AMOS 118 ATVC PAL Mirror

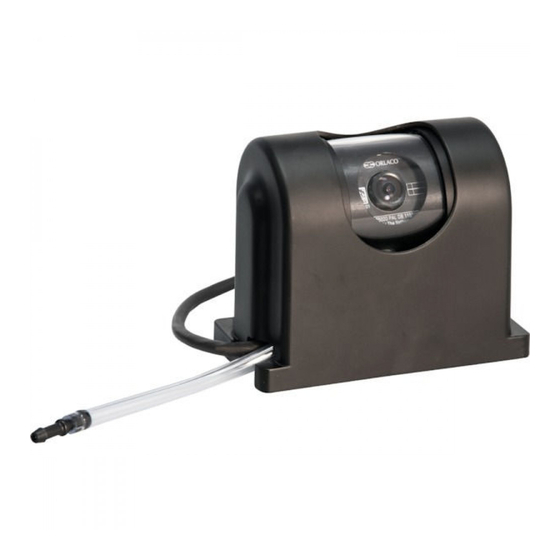

- Page 1 Set Camera AMOS 118° ATVC PAL Mirror AMOS 118° ATVC NTSC Mirror AMOS 102° Maxview ATVC PAL Installation manual No. IM0973380 R1-6 Art No: 0400160, 0400180, 0400260 08/2013 English...
-
Page 2: Table Of Contents
• Do not open the enclosure. This can cause damage, short circui- Activation of the cleaning process can be done via the Camera- ting or electrical shocks. Activation signal from the Orlaco monitor (without switcher) or • Do not expose the equipment to extreme temperatures. ATVC hard wired directly to the ATVC I/O box. -
Page 3: Sets
Monitor Article No. 0404190, ATVC I/O Box. Set Camera AMOS 118° ATVC NTSC Mirror (Art. No. 0400280) In combination with a Orlaco camera switcher Article No. 0125120, Camera AMOS 118° ATVC NTSC. the ATVC system can only be activated Article No. 0404190, ATVC I/O Box. -
Page 4: Atvc Wiper
Installation manual Installation manual 5. ATVC wiper 8. Connections and dimensions ATVC camera , see figure 9. Turn the two screws loose to remove the cover C. Wiper can be changed at the right side of the camera, see B. 8.1. -
Page 5: Dimensions
Installation manual Installation manual 9. Connections and dimensions ATVC I/O box 9.2. Dimensions See figure 15. 9.1. Front side connections To Camera 7p female 1 = Video 2 = Video GND 3 = CAM +12V/DC 4 = CAM - 0V To Camera 5 = Motor - 6 = Supply +;... -
Page 6: Other Configurations
When connecting the Set Camera AMOS 118° ATVC PAL MIRROR with waste must be followed when disposing of disassembled to a non Orlaco monitor, the I/O box must be powered via the components or entire units. monitor output (min 12V), this is next to the power to the I/O box. - Page 7 ORLACO Orlaco is a Manufacturing company that specializes in making cameras and monitor systems for commercial vehicles, fork-lift trucks, cranes, off shore and maritime. Our objective is to design and produce camera systems for the professional market that improve the drivers’ view and increase operating efficiency.
