ORLACO
Orlaco is a Manufacturing company that specializes in
making cameras and monitor systems for commercial
vehicles, fork-lift trucks, cranes, off shore and maritime.
Our objective is to design and produce camera systems for
the professional market that improve the drivers' view and
increase operating efficiency.
At our facility in Barneveld we locate our design,
manufacturing, warehousing and service department.
Vision is our mission®. Orlaco therefore deploys the
development, manufacture, supply and service of camera
and display systems that will improve safety and efficiency
of all vehicles, machinery and vessels. Our systems give the end user a view on each blind
spot and will create comfort and improved working conditions. Our active approach will
support market demands and innovations and will lead to enthusiastic ambassadors in the
market; our customers.
For more information: www.orlaco.com
ORLACO PRODUCTS BV
Albert Plesmanstraat 42, 3772 MN Barneveld
PO Box 193, 3770 AD Barneveld
The Netherlands
Phone:
+31 (0) 342 404555
E-mail:
info@orlaco.com
Internet:
www.orlaco.com

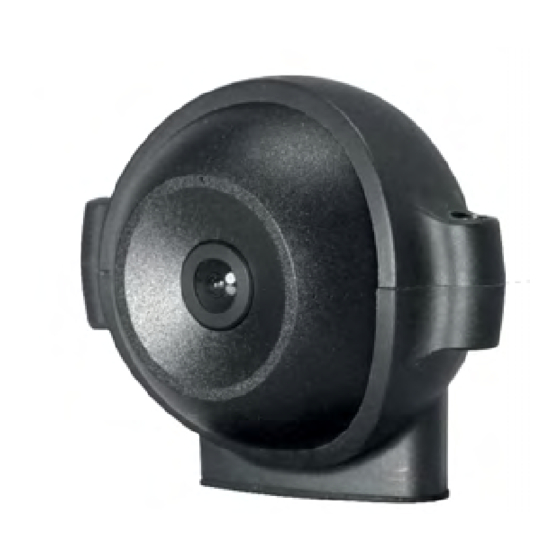

Camera FAMOS

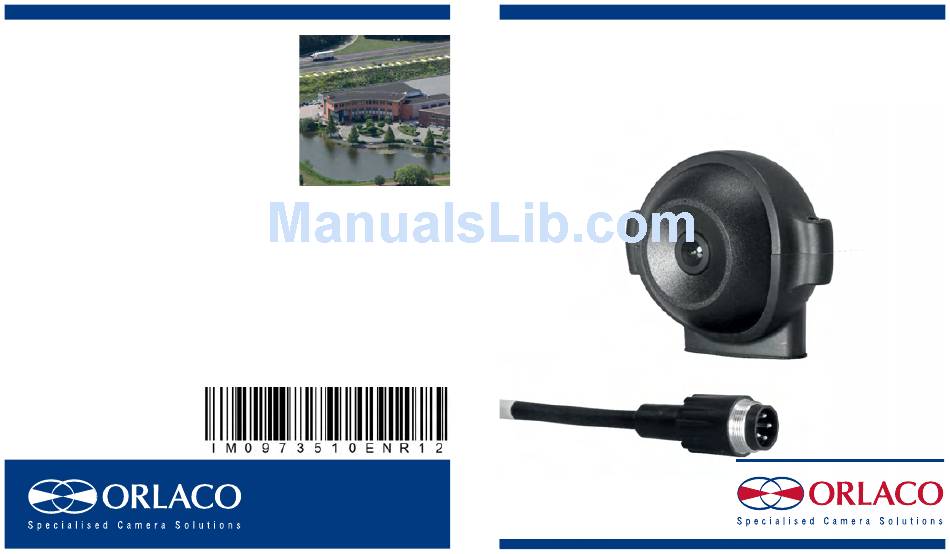

Installation manual
Including specifications
No. IM0973510 R1-2
1/2015
English
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Orlaco IM0973510 R1-2
Summary of Contents for Orlaco IM0973510 R1-2
- Page 1 ORLACO Camera FAMOS Orlaco is a Manufacturing company that specializes in making cameras and monitor systems for commercial vehicles, fork-lift trucks, cranes, off shore and maritime. Installation manual Our objective is to design and produce camera systems for Including specifications the professional market that improve the drivers’...
- Page 2 Orlaco. This also applies to the associa- • Repairs may only be undertaken by the manufacturer.
- Page 3 Use a soft cloth to clean the lens glass of the camera. Use clean water or a high quality and safe foam cleaner. Rub the camera lens glass clean with the cloth. Do absolutely not use aggressive che- micals or abrasive cleaning agents. IM0973510 R1-2...
- Page 4 Units in mm Min. bend radius (R) = 50mm 1.2. Camera attachment. Storage temperature: Recommendation: -40°C to +125°C. The bracket should be tightened with a torque of 6 Nm nominal. Tighten by hand or with very low speed. IM0973510 R1-2...
- Page 5 Connectors: 0,5m cable with 4p molded male connector (camera power input and video output). Min. cable bend radius: 50mm. IM0973510 R1-2...
- Page 6 (Video GND) Sensor element: 3 = Red (12/24V/DC ) ¼” CMOS digital image sensor. 640 H x 480 V. 4 = White (0V) Light sensitivity: Shielding Connected to Connector housing and <0,05 Lux. Camera housing Dynamic Range: 80dB. IM0973510 R1-2...
