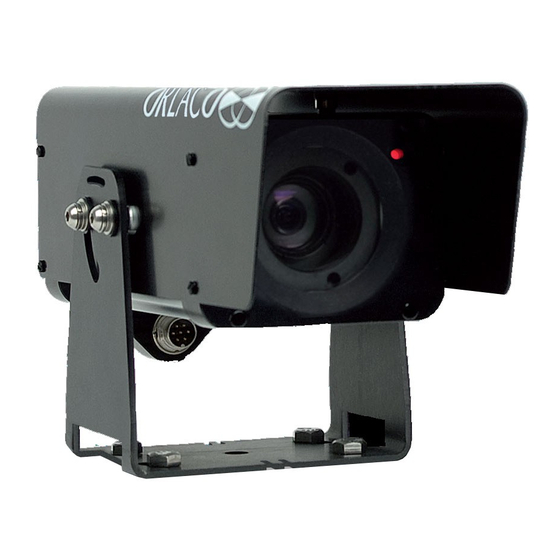

- Page 1 Camera AFZ Sst Art. no. 0103532/0113532/0103562 Camera AFZ PAL HW Camera AFZ PAL Serial Camera AFZ NTSC Serial Installation Manual Manual No. IM0973112, A 07 Art. no. 0103482/0113482 Article no. 0103482, 0113482 0103513 0103532, 0113532 0103562 Art. no. 0103513 01/2016...
-
Page 2: Table Of Contents
• The equipment must be assembled as shown in this manual. • If there have been alterations or changes to this equipment that have not been specifically approved by Orlaco, use of this equipment is not permitted. Art. no. 0103482/0113482 Before you start using this equipment, please read this manual carefully and follow all instructions. -
Page 3: Introduction
Installation Manual 1. Introduction These Auto Focus Zoom (AFZ) cameras have excellent specification properties for maximum performance on the different workstations, such as cranes, emergency vehicles, vessels and military vehicles. 2. Mounting A camera bracket is supplied with the Camera AFZ Alu/Sst; the package includes the necessary nuts, bolts and washers. -
Page 4: Camera
Art. no. 0113532 Camera AFZ PAL Serial RS485 Art. no. 0103562 Camera AFZ NTSC Serial Art. no. 0103482 Camera AFZ Sst Art. no. 0113482 Camera AFZ Sst RS485 Camera connector 7p male, see figure 4. Electrical connections: 1 = Coax core (Video signal) -
Page 5: Camera
Installation Manual 4.3. Camera Art. no. 0103513 Camera AFZ PAL Hard wired. Cable Art. no 1220250. Length 5m. Cable connections, see figure 7. The Camera AFZ Alu/Sst must be connected by qualified electricians. Under no circumstances you should make Art. no. 0103513 connections that are not described in this manual. -
Page 6: Technical Specifications
Art. No. 0103532 Camera AFZ PAL Serial Art. No. 0113532 Camera AFZ PAL Serial RS485 Art. No. 0103482 Camera AFZ Sst Art. No. 0113482 Camera AFZ Sst RS485 Image sensor: 2.4 MPixel 1/3” CMOS sensor. Image sensor: 2.4 MPixel 1/3” CMOS sensor. -
Page 7: Dimensions
Installation Manual 5.3. Cameras: Art. No. 0103513 Camera AFZ PAL Hard wired. Image sensor: 2.4 MPixel 1/3” CMOS sensor. Total pixels: 1956 (H) x 1266 (V). Hor. Resolution: >700 TV lines (PAL/NTSC). Lens: 30x optical, 32x digital zoom. f = 4.3 mm to 129 mm, F1.6 (WIDE) to F1.8 (TELE). -
Page 8: Pelco-D Commands
Installation Manual 7. Pelco-D commands Pelco-D protocol as implemented in Orlaco Zoom camera or PTZ unit. Commands detailed below are accepted, no responses are sent. Source: Pelco PTZ protocols, D Protocol, Version 5.0.1 1 April 2008 by Eric Hamilton (C) Pelco. - Page 9 Installation Manual Set preset is also used for some special function by using a special Preset ID. Pan/Tilt unit: Preset ID 0x56 Start wipe/wash cycle, this blocks white hot LUT selection in pan/tilt/TIC combination. Autofocus camera: Preset ID 0x58 and 0x15 will switch the IR block filter into the optical path. Preset ID 0x59 and 0x16 will switch the IR block filter out of the optical path.
-
Page 10: Jittter
Installation Manual 8. Jitter (e.g. wobbling image during zoom). Some viewing equipment are more sensitive to horizontal jitter (e.g. wob- bling image during zoom). When this horizontal jitter occurs, below visca commands can be send sequentially to lower the jitter. 1 ... -
Page 11: General Terms And Conditions
BV. All rights reserved. No part of this manual may be reproduced and/ or made public in printed form, in photocopy form or on microfilm, or in any other way, without the prior written permission of Orlaco. This also applies to the associated drawings and figures. - Page 12 ORLACO Orlaco is a Manufacturing company that specializes in making cameras and monitor systems for commercial vehicles, fork-lift trucks, cranes, off shore and maritime. Our objective is to design and produce camera systems for the profes- sional market that improve the drivers view and increase operating efficiency.
