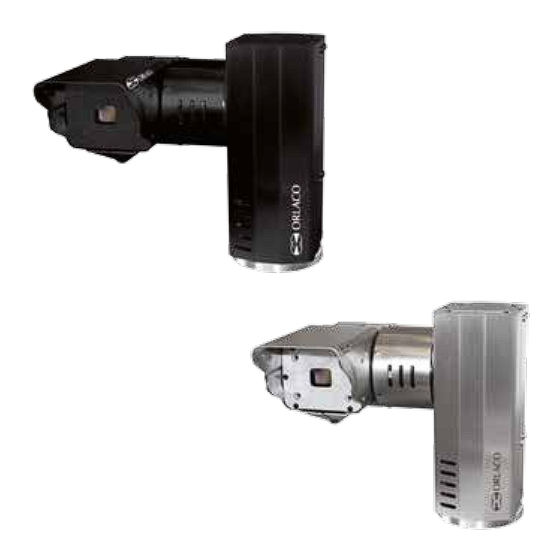

- Page 1 Camera PT TIC Alu/Sst Installation Manual Manual no. IM0973171, A 01 Article no. 0506972, 0506982 7/2012 English Art. no. 0506972 Camera PT TIC Alu Art. no. 0506982 Camera PT TIC SSt,...
-
Page 2: Table Of Contents
• The equipment must be assembled as shown in this manual. • If there have been alterations or changes to this equipment that have not been specifically approved by Orlaco, use of this equipment is not permitted. Statement related to Machine-directive 2006/42/EC:... -
Page 3: Introduction
Installation Manual 1. Introduction PT TIC (Pan Tilt Thermal Image camera) unit. Cover plate Pan & Tilt unit including thermal image camera. The PT TIC unit func- tions via two stepper motors. These stepper motors are controlled by the integrated micro-controller and input commands RS232 Visca-, Pelco D protocol/P 9600 Baud rate. -
Page 4: Electrical Installation
PT TIC The following products are required for basic operation of the unit, see figure 4.: R = 50,0 PT TIC unit Art Nr 0506972 or Art. no 0506982. Monitor RLED 7", Art no 0208632. ∅12 (4x) M8 (3x) ∅12 (4x) -
Page 5: Instructions For Use
(flashing LED on camera). Fuse of the vehicle’s supply voltage is defective. Replace the fuse. Other cause. Contact your Orlaco dealer. Monitor is not or incorrectly connected to the Check the connection of the Monitor 2. Monitor has no picture. -
Page 6: Maintenance And Cleaning
9. Product specifications Camera PT TIC PAL/NTSC SSt 0506982; Camera PT TIC PAL/NTSC Alu 0506972 9.1. Thermal Image Camera Figure 9 Sensor: Uncooled LWIR Thermal Imager 336 x 256 VOx Microbolo- meter. Pixel size: 25 micron. Frame Rates: 30/60 Hz (NTSC); 25/50 Hz (PAL). -
Page 7: Dimensions
Installation Manual 10. Dimensions Base Base plate ∅180 Tilt Base Base plate Units in mm Figure 7 IM0973171 A 01... -
Page 8: Visca Protocols
The pan/tilt will have the same address as the camera that is mounted on it. This address is assigned automatically but the pan/tilt must be connected before the camera in the serial communications string (this is automatically correct when standard Orlaco cabling is used). -
Page 9: Old Pan/Tilt Commands
Installation Manual 13.1. Old pan/tilt commands (Orlaco specific) Pan/Tilt speed = 0x00 - 0xff needs to be split into 2 nibbles S1,S2 = 0x00 - 0x0f (speed = (S1 << 4) + S2) <0x80 + address> <V_COMMAND> <V_CATEGORY_CAMERA1> <V_MOVE_PAN_TILT> <S1> <S2> <0x00> <0x00> <V_PAN_DIRECTION_RIGHT>... -
Page 10: Additional Zoom/Serial Commands
Installation Manual 14. Additional zoom camera serial commands V_ZOOM 0x07 V_ZOOM_STOP 0x00 V_ZOOM_TELE 0x27 V_ZOOM_WIDE 0x37 V_ZERO_LUX 0x01 V_ZEROLUX_ON 0x02 V_ZEROLUX_OFF 0x03 V_BACKLIGHT_COMP 0x33 V_BACKLIGHT_COMP_ON 0x02 V_BACKLIGHT_COMP_OFF 0x03 V_FOCUS 0x08 V_FOCUS_FAR 0x23 V_FOCUS_NEAR 0x33 V_FOCUS_STOP 0x00 V_AUTOFOCUS 0x38 V_AUTOFOCUS_ON 0x02 V_AUTOFOCUS_OFF 0x03 V_PRESET... -
Page 11: Additional Tic Camera Serial Commands
Fusion - IDH=0x01, IDL=0x0B, VALH=0x00, VALL=0x02 any other way, without the prior written permission of Orlaco. This also Rainbow - IDH=0x01, IDL=0x0B, VALH=0x00, VALL=0x03 applies to the associated drawings and figures. - Page 12 ORLACO Orlaco is a Manufacturing company that specializes in making cameras and monitor systems for commercial vehicles, fork-lift trucks, cranes, off shore and maritime. Our objective is to design and produce camera systems for the professional market that improve the drivers view and increase operating efficiency.
