Summary of Contents for Keeler Spectra Plus

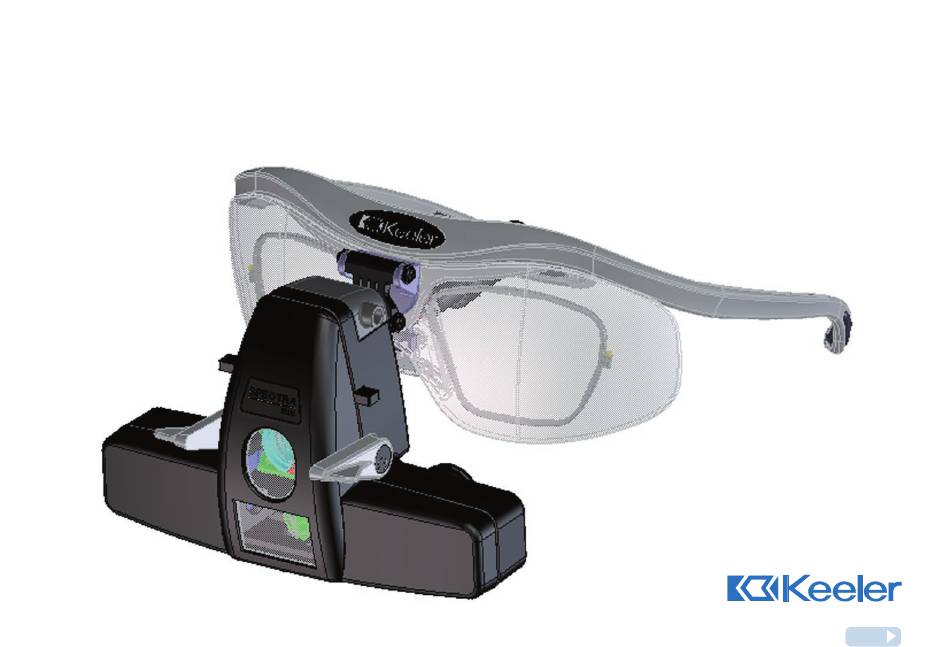

- Page 1 Keeler Spectra Plus Instructions Next...
- Page 2 Introduction Thank you for purchasing the Keeler Spectra Plus Indirect Ophthalmoscope. We have taken the greatest care in the design, development and manufacture of this product to ensure that you get many years of trouble free service. However, it is important that you read the...
-
Page 3: Table Of Contents
Contents Symbols Warnings and Cautions Setting up and using the Spectra Plus Power Supplies - Lithium Battery Accessories Cleaning Instructions Technical Information Warranty and Service Information Contact Information Please click on the contents to go straight to your chosen section or navigate by using the 'Next' and 'Back' buttons to the right. -
Page 4: Symbols
Symbols Read user instructions for Warnings, Cautions and additional information. The CE mark on this product indicates it has been tested to and conforms with the provisions noted within the 93/42/EEC Medical Device Directive. Double insulated. Type B protection against shock. Back Next Home... -
Page 5: Warnings And Cautions
+10ºC and +35ºC. • Do not fit mains power adapter into a damaged mains outlet socket. • Use only Keeler charger supplied. • Route power cords safely to eliminate risk of tripping or • Use correct Keeler power supply. -
Page 6: Setting Up And Using The Spectra Plus

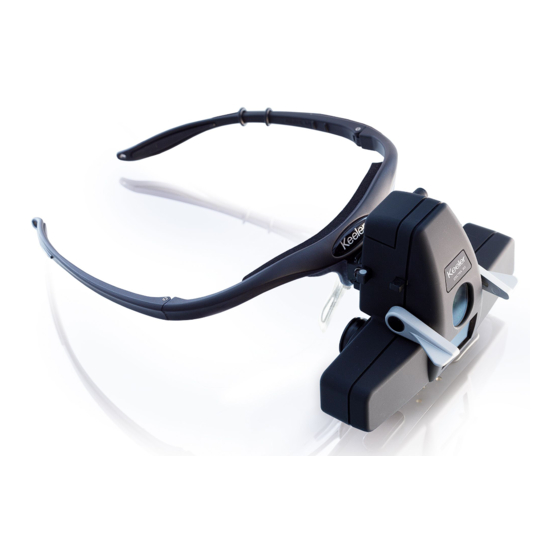

Setting up and using the Spectra Plus Description of the Product A Frame B Filter Selector C Mirror Angle D Hinge E Interpupillary Distance Control F Mounting Holes Back Next Home... - Page 7 Setting up and using the Spectra Plus Frame (A) Protective shield in correct position 1. Fit the Spectra Plus 2. The protective shield head unit to the frame (A) is fitted by pushing via the pin mounting the shield into system as shown.
- Page 8 Setting up and using the Spectra Plus Frame (A) 4. To adjust the Nose Bridge, turn the locking 5. Lock the Nose Bridge in position by cam to a position as shown above to turning the locking cam to a position as release the Nose Bridge.
- Page 9 Setting up and using the Spectra Plus Filter selection control (B) Filter selection (B) By sliding the lever (B) in direction of arrows, different filters may be selected. Filter selection (B) Mirror angle Clear – Select the clear with no filter when inspecting a control (C) specific pathology and a brighter, whiter light is desired.
- Page 10 Setting up and using the Spectra Plus Interpupillary Distance Setting Control (E) Because the eyes are dissociated, particular care must be taken to ensure the optics (eyepieces) are set properly in front of each eye. Place an object, perhaps the thumb, approximately 40cm from the face and centre it horizontally in the light patch.
-
Page 11: Power Supplies - Lithium Battery
Power Supplies - Lithium Battery Set Plug Replace the blanking plate with the appropriate mains plug adapter if required, or use IEC 60320 TYPE 7 connector (not supplied). IEC 60320 TYPE 7 connector Back Next Home... - Page 12 Power Supplies - Lithium Battery Charging the battery pack Place the battery pack into the charging well as shown below. A yellow LED indicates battery pack’s charge state as below: Connect plug on cable to power input socket on side of Charger.
- Page 13 Power Supplies - Lithium Battery Charge time A yellow LED indicates battery pack’s charge state as below: The battery will take approximately 3 hours to fully charge. Flashing yellow LED Battery requires charging The battery will last approximately 4 hours on full power. Turn the illumination on by rotating the dimmer control knob in an anti-clockwise direction.
-
Page 14: Accessories
Spectra Plus Carrying Case EP39-33907 Lithium Battery 1201-P-6067 Large Thimble Depressor for Scleral Indentation 1201-P-6075 Small Thimble Depressor for Scleral Indentation Contact Keeler who can supply a choice of Volk Lenses depending on magnification and field of view. Back Next Home... -
Page 15: Cleaning Instructions
Cleaning Instructions Only manual non-immersion cleaning as described should be used for this instrument. Do not autoclave or immerse in cleaning fluids. Always disconnect power supply from source before cleaning. a Wipe the external surface with a clean absorbent, non- shedding cloth dampened with a water / detergent solution (2% detergent by volume) or water / isopropyl alcohol solution (70% IPA by volume). -
Page 16: Technical Information
300 400 500 600 700 800 900 1000 1100 levels be set to the minimum level necessary to perform the Wavelength / nm diagnostic function. Young children and persons with diseased Spectral irradiance of Spectra Plus indirect ophthalmoscope at user plane. Back Next Home... - Page 17 Technical Information Photochemical source Operating temperature: +10ºC to +35ºC radiance (mW cm Transportation temperature: - 40ºC to +70ºC.10% to 95% RH Input mains data: 100-240V – 50/60Hz Aphakic, L (305-700nm) 3.26 Power supply rating: 12V : 2.5amps Phakic, L (380-700nm) 3.21 Operation: Continuous...
-
Page 18: Warranty And Service Information
Warranty and Service Information Your Keeler Instrument is guaranteed for 3 years and will be replaced or repaired free of charge subject to the following: 1 Any fault that is due to faulty manufacture. 2 The instrument has been used in compliance with these instructions. -
Page 19: Contact Information
Contact Information Manufactured in the UK by: Distributed by: Keeler Limited Keeler Instruments Inc. Clewer Hill Road 456 Parkway Windsor Broomall Berkshire SL4 4AA PA 19008, USA Freephone: 0800 521251 Toll Free: 1 800 523 5620 Tel: +44 (0)1753 857177...
