Manual for Sigfox-Ready AC
Current Sensor - WSSFC-AC |
FW1.0
Thank you very much for choosing Daviteq Wireless Sensors. We are the leading wireless sensor manufacturer in the
World. We have a wide range of wireless sensors which support different connectivity like LoRaWAN, Sigfox, Sub-GHz,
NB-IoT...Please find out more information at
This manual is applied to the following products
Item code
WSSFC-AC-11
Information Changes in this version v.s previous version
Item
1
Initial version
To use this product, please refer step by step to the below instructions.
Operating Principle
1. Quick Guide
Reading time: 10 minutes
Finish this part so you can understand and put the sensor in operation with the default configuration from the
factory.
1.1 What is the Sigfox-Ready AC Current Sensor and its
principle of operation?

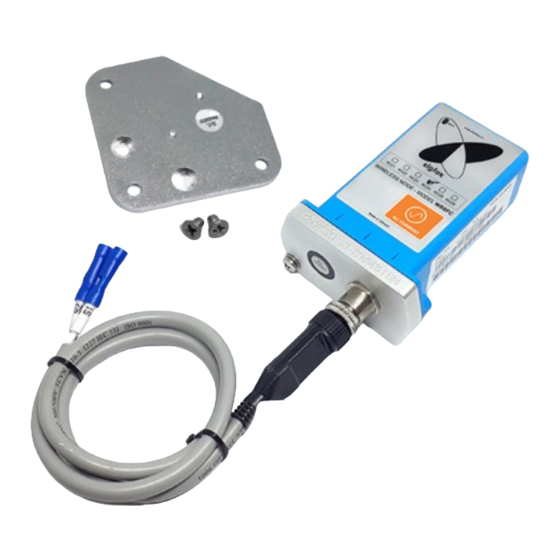

WSSFC-AC is a Sigfox-Ready sensor with an integrated AC current measuring transducer that can measure the AC
current from a current transformer with max 5A AC current. It is compatible with any brand of current transformer (CT)
this
HW Version
1.0
Changes
Changed by
D.Q.Tuan
Battery
Installation
Configuration
Specification
link.
Firmware Version
1.0
Changed Date
09-04-2022
Remarks
Approved by
Approved Date
N.V.Loc
Uplink Payload
Connect to Sigfox Network
Troubleshooting
Calibration
Warranty and Support
28-06-2022
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for daviteq WSSFC-AC
Summary of Contents for daviteq WSSFC-AC
- Page 1 Current Sensor - WSSFC-AC | FW1.0 Thank you very much for choosing Daviteq Wireless Sensors. We are the leading wireless sensor manufacturer in the World. We have a wide range of wireless sensors which support different connectivity like LoRaWAN, Sigfox, Sub-GHz, NB-IoT...Please find out more information at...
-
Page 2: What's In The Package
on the market which gives an output max of 5A AC. The CT ratio will be selected based on the load current. It is battery-operated and able to connect to any Sigfox network in the World. It supports all frequency zones such as RC1, RC2, RC3c, RC4, RC5, RC6, and RC7. -
Page 3: Quick Test
1.3 Quick Test With the default configuration, the device can be connected quickly to the Sigfox Network by the following steps. Step 1: Prepare the values of communication settings: Device ID Get Devive ID on the device nameplate Device PAC Get Devive PAC on the device nameplate Note: All Sigfox sensors are pre-configured with the correct RC before delivery. -
Page 4: Sensor Installation
Note: Please select the right Payload document to suit the FW version of the sensor 1.5 Sensor Installation SAFETY ATTENTION: - TO REPLACE BATTERIES OR SERVICE THE MAIN DEVICE, PLEASE PAY ATTENTION TO THE ELECTRICAL SHOCK THAT MAY HAPPEN DUE TO THE PROBLEM OF THE AC CURRENT CABLE OR FAILURE OF THE CURRENT TRANSFORMER. -
Page 5: Troubleshooting
Please follow the orders of steps strictly as below. 1.5.1 Preparation of the locations Locate the place to mount the CT, the place that is to measure the load current; Locate the place to mount the Wireless transmitter to get the best RF signal. As the AC current transducer will be attached to the wireless transmitter, please make sure the cable length is enough for the distance from CT to the wireless transmitter;... -
Page 6: Advanced Guide
3.1 Operating principle of the Sigfox-Ready AC current sensor 3.1.1 Operating principle of the complete device The Daviteq Sigfox-Ready AC current sensor comprises 02 parts connected together as shown below picture. - The Daviteq Sigfox-Ready wireless transmitter; - The Daviteq AC 5A current Transducer;... -
Page 7: Sensor Configuration
Note: the Low cut value of Actual_Load_Current is 0.5A. That meant the device can not measure the current load less than 0.5A 3.1.2 Operating principle of AC current transducer To understand how the AC current transducer can measure AC current, please refer to this link for a complete understanding of this measuring technique. -
Page 8: Product Specification
CURRENT_CONFIGURATION Read/Write Check the Payload Document for more information SERVER_CONFIG uint16 Read/Write 0: Send to Sigfox Network 1: Send to Dongle RADIO_CONFIG uint16 Read/Write RC zones selection 1, 2 , 3, 4 is RC1, RC2, RC3s, RC4 TX_POWER int16 Read/Write RF Tx power CONSTANT_A... -
Page 9: Warranty And Support
Please refer to the detailed specifications in this link. 5. Warranty and Support For warranty terms and support procedures, please refer to this link. 6. References Use-cases: Case studies: White-papers: END. Revision #53 Created Fri, Jun 24, 2022 9:11 AM by Lộc Vĩnh Nguyễn Updated Sat, Jul 2, 2022 3:58 AM by Lộc Vĩnh Nguyễn...
