USER GUIDE FOR WIRELESS
SENSOR DIGITAL INPUTS WS433-
DI
WS433-DI-MN-EN-01
This document is applied for the following products
SKU
WS433-DI
WS433-DI-12
Item Code
1. Functions Change Log
HW Ver.
2.5
2. Introduction

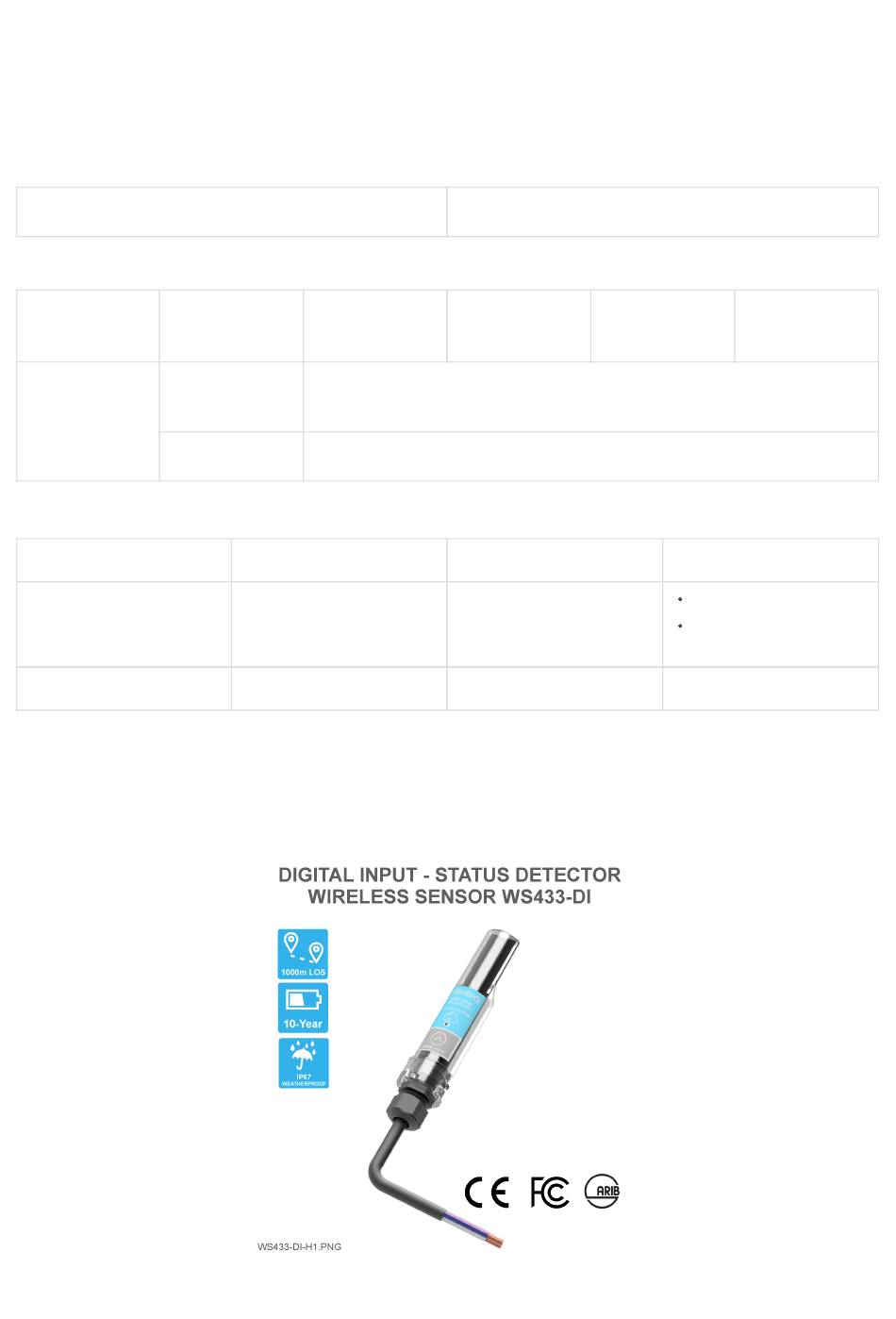

Wireless sensor with 2 channel digital inputs to detect logic status 0/1 OR counting pulses from proximity sensor, limit
switch, machine output, pressure switch...It is configured the operation parameters like data sending interval, health
check cycle...remotely from Globiots platform or via ModbusRTU software. The wireless module can last up to 10 years
with a single AA battery.
3. Specification
HW Ver.
2.5
Wireless Sensor with 2 channel Digital inputs with dry-contact of voltage input max 3.3VDC, Logic
detecting or Pulse counting IP67, battery AA 1.5VDC, shielded cable 0.5m length with PG9 cable
gland
FW Ver.
5.0
FW Ver.
Release Date
DEC-2019
FEB-2020
5.0
Functions Change
Change function status or
counter by switch
Change RF data rate by
button
Advertisement
Table of Contents
Related Manuals for daviteq WS433-DI
Summary of Contents for daviteq WS433-DI
- Page 1 USER GUIDE FOR WIRELESS SENSOR DIGITAL INPUTS WS433- WS433-DI-MN-EN-01 FEB-2020 This document is applied for the following products WS433-DI HW Ver. FW Ver. Wireless Sensor with 2 channel Digital inputs with dry-contact of voltage input max 3.3VDC, Logic WS433-DI-12 detecting or Pulse counting IP67, battery AA 1.5VDC, shielded cable 0.5m length with PG9 cable...
-
Page 2: Product Pictures
Input 2 channel Digital inputs with dry-contact or voltage input (max 3.3VDC) Functions M12-female, 4-pin A-coding Electrical connection Shielded cable 0.5m length with PG9 cable gland 304SS Adapter PG9/male 1/2"NPT or PG13.5 or M20 to allow direct Optional accessories mounting on Process instruments or electrical panel Data speed Up to 50kbps Tranmission distance, LOS... -
Page 4: Operation Principle
5. Operation Principle WS433-DI-12 has 02 digital inputs, there are 02 operation modes: Digital status detector Mode; Counter Mode. 5.1 Digital Status Detector To use Digital Status Detector mode, please turn the switch in the wireless node to the Status Detecting Mode. -
Page 5: Mounting Bracket Installation
Wireless Sensor Digital Inputs WS433-DI has been mounted mounting bracket. 7.2 Installation location Wireless sensor digital inputs WS433-DI utilize the ultra-low power 433Mhz RF signal to transmit/receive data with Wireless sensor co-ordinator (WR433-). To maximize the distance of transmission, the ideal condition is Line-of-sight (LOS) between the two modules. In real life, there is no LOS condition. - Page 6 Counter, take the battery out, wait 5 seconds then put it back to the sensor. ***Note: If the extension cord of WS433-DI is required, use the wire type Control Cable Cu/PVC/OS/PVC 4x0.25mm2, Length=5m, Rohs, Shield 80% and shielding should be soldered to GND if possible.
- Page 7 7.4 Power Supply & Battery installation Steps for battery installation: Using Philips screw driver to unscrew M2 screw at the side of housing Carefully pull out the top plastic housing in the vertical direction...
- Page 8 NOTE: Because of O-ring, it requires to have much pulling force at the beginning, therefore please do it carefully to avoid the damage of circuit board which is very thin (1.00mm); Insert the AA battery, please take note the poles of battery...
- Page 9 Insert the top plastic housing and locking by M2 screw...
-
Page 10: Troubleshooting
Dai Viet Controls & Instrumentation Company Ltd. No.11 Street 2G, Nam Hung Vuong Res., An Lac Ward, Binh Tan Dist., Ho Chi Minh City, Vietnam. Tel: +84-28-6268.2523/4 (ext.122) Email: info@daviteq.com | www.daviteq.com Revision #40 Created Wed, Feb 5, 2020 2:35 AM by Kiệt Anh Nguyễn...
