1. Fasten spacers (provided) to pems that match the hole pattern for Suprema CoreStation module (Fig. 2, pg. 3).
2. Mount module to spacers utilizing 5/16" pan head screws (provided) (Fig. 2, 2a, pg. 3).
Note: Suprema CoreStation modules have one (1) RJ45 jack each.
Please make sure that it is mounted correctly, as shown in Fig. 2 below.
4. Fasten TSP1 backplane to Trove1 enclosure utilizing hardware (provided).

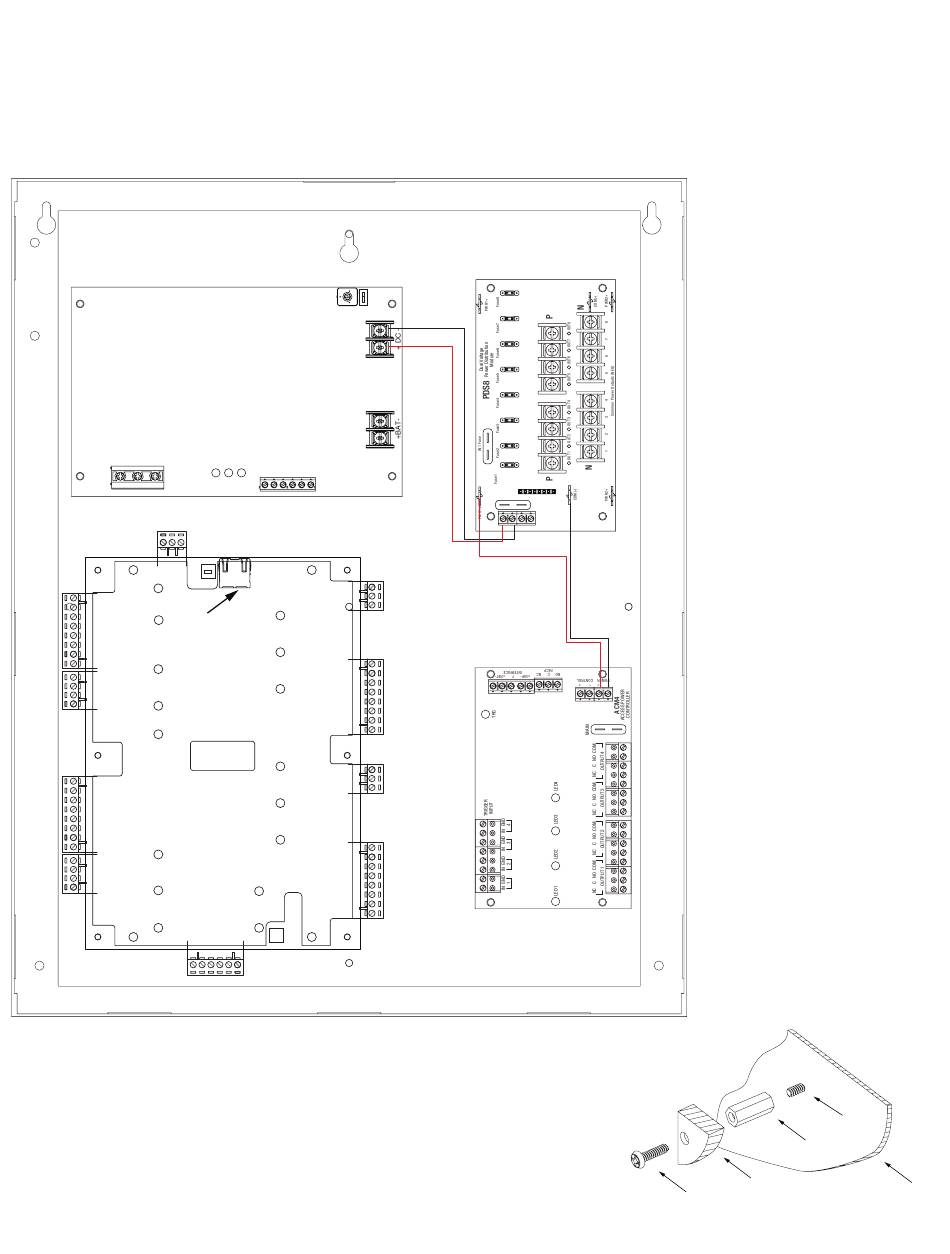

Fig. 2
L
G
N
RJ45
T1SPK34 Installation Guide
Configuration of Suprema CoreStation module:
ON
Altronix
AL600ULXB
AC DC BAT
5
BAT FAIL NC C NO NC C NO AC FAIL
Suprema
CoreStation
Altronix PDS8
with VR6 below
OFF - 24V
ON - 12V
IN2 Fuse
+ INP1 - + INP2 -
Altronix ACM4
Pem
Spacer
Pan Head
Suprema CoreStation
Screw
module
Fig. 2a
Backplane
- 3 -
