Altronix T1SPK34 Trove Suprema kit is pre-assembled and consists of Trove1SP1 enclosure/backplane with factory installed Altronix power supply/

charger and sub-assemblies. T1SPK34 kit also accommodates one (1) Suprema CoreStation module for up to four (4) doors in a single enclosure.

Wiring methods shall be in accordance with the National Electrical Code/NFPA 70/ANSI, and with all local codes and authorities having jurisdiction.

Product is intended for indoor use only.

1. Remove backplane from enclosure. Do not discard hardware.

2. Mark and predrill holes in the wall to line up with the top three keyholes in the enclosure. Install three upper fasteners and screws in the

wall with the screw heads protruding. Place the enclosure's upper keyholes over the three upper screws, level and secure. Mark the position

of the lower three holes. Remove the enclosure. Drill the lower holes and install the three fasteners. Place the enclosure's upper keyholes

over the three upper screws. Install the three lower screws and make sure to tighten all screws.

3. Mount included UL Listed tamper switch (Altronix Model TS112 or equivalent)

in desired location, opposite hinge. Slide the tamper switch bracket onto the edge

of the enclosure, approximately 2" from the right side (Fig. 1, pg. 2).

Connect tamper switch wiring to the Access Control Panel input or the

appropriate UL Listed reporting device. To activate alarm signal

open the door of the enclosure.

4. Mount Suprema CoreStation module to TSP1 backplane, refer to page 3.

5. Refer to the ULXB Power Supply/Charger Installation Guide for AL600ULXB

and corresponding Sub-Assembly Installation Guides for the following models:

ACM4, PDS8 and VR6 for further installation instructions.

Hardware:

Nylon Spacer |

- 2 -

Overview:

5/16" Pan Head Screw |

Enclosure

Tamper Switch

Lock Nut

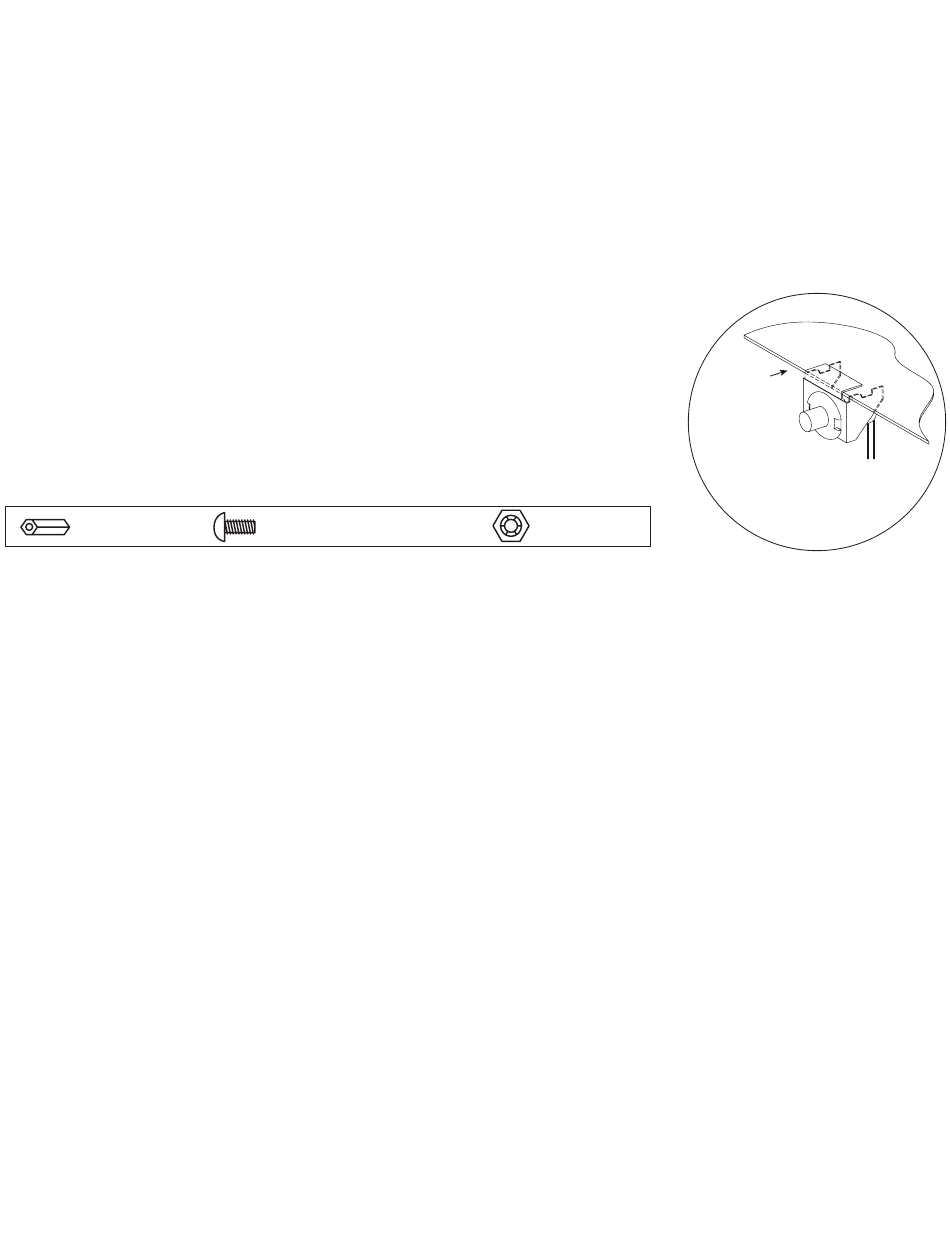

Fig. 1

Enclosure

Edge of

(included)

To Access Control Panel or

UL Listed Reporting Device

T1SPK34 Installation Guide
