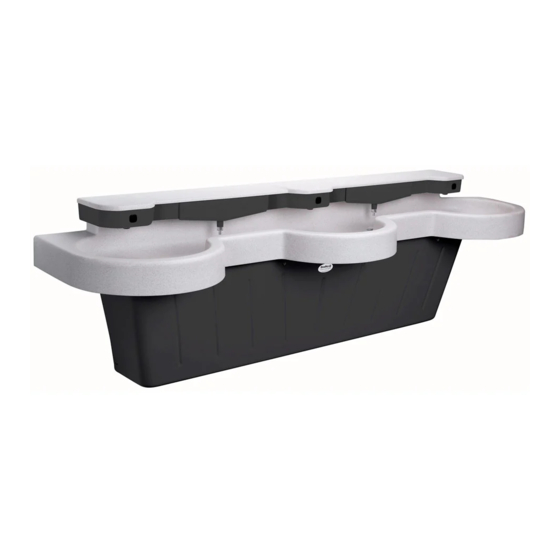

Bradley Express SS-Series Express SS-3N/BIR3/STD Installation Manual

Bradley Express SS-Series Express SS-3N/BIR3/STD Installation Manual

Lavatory system

Advertisement

Quick Links

SS-3N/BIR3/STD/LSD-3
SS-3N/BIR3/WH/LSD-3
215-1496 Rev. J; ECN 17-08-026
© 2018 Bradley
Page 1 of 15
9/7/2018

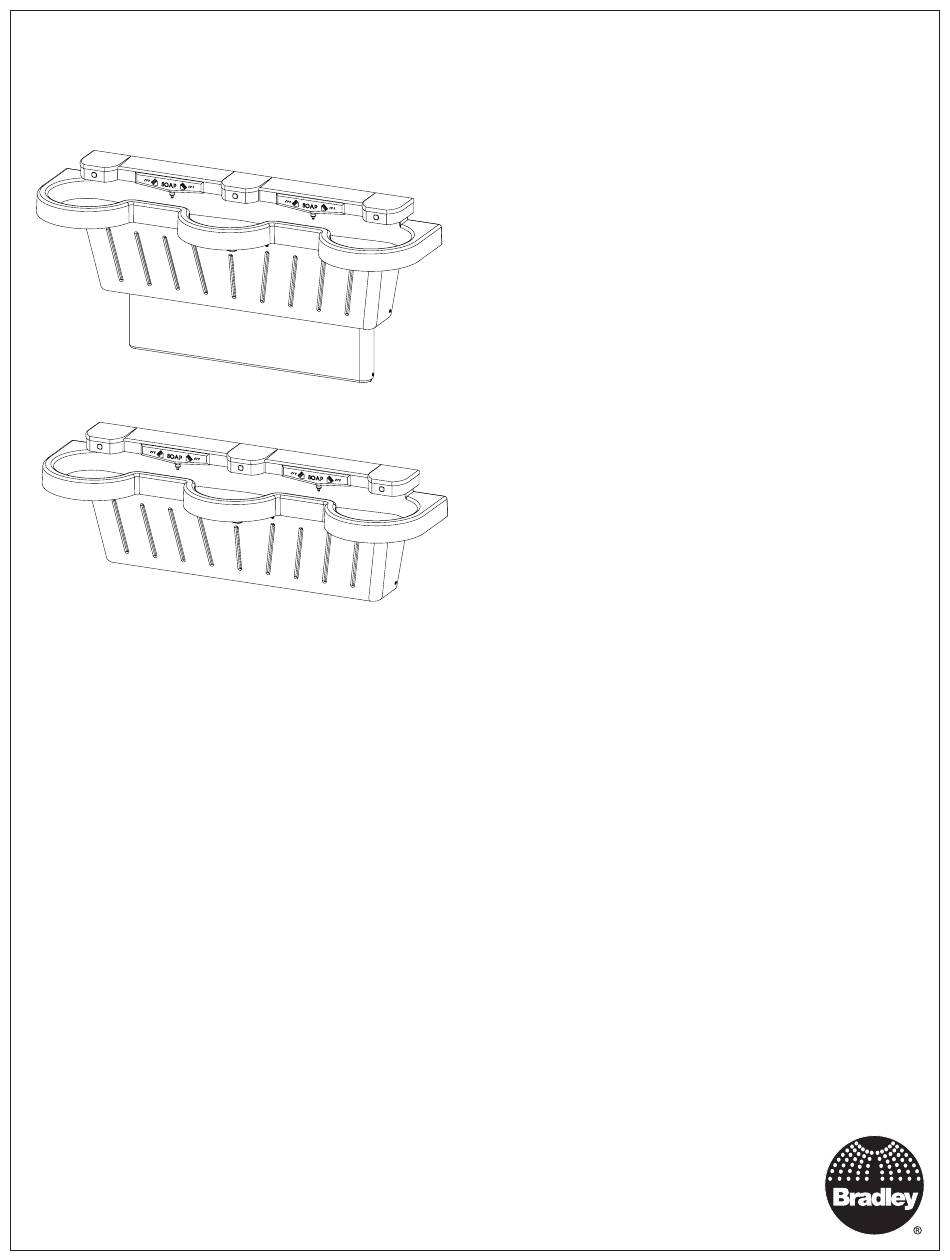

Installation
SS-3N/BIR3/STD
SS-3N/BIR3/WH
Express
Lavatory
®
System SS-Series
Express Lavatory Systems are ADA and TAS compliant
U.S. Pat. Nos. 5,611,093, 5,369,818, D398,969
Other Patents Pending

Table of Contents

Pre-Installation Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Supplies Required. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Dimensions - Front and Top Views . . . . . . . . . . . . . . . . . . . . . . . 4-5
Rough-Ins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Mount the Frame . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Install the Bowl . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Connect the Supply - Hot and Cold Supply . . . . . . . . . . . . . . . . . . 8
Connect the Supply - Single Tempered Supply . . . . . . . . . . . . . . . 8
Install the Drains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Connect Electrical and Sprayhead Supplies. . . . . . . . . . . . . . . . . . 9
Adjust the Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Cleaning and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Troubleshooting - BIR3 Components . . . . . . . . . . . . . . . . . . . . . 12
Solenoid Valve. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Stop Valve Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Thermostatic Mixing Valve Troubleshooting . . . . . . . . . . . . . . . . . 14
Fill Soap Dispenser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Clean Soap Dispenser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Menomonee Falls, WI 53052 USA
800 BRADLEY (800 272 3539)
P.O. Box 309
+1 262 251 6000
bradleycorp.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Express SS-Series Express SS-3N/BIR3/STD and is the answer not in the manual?

Questions and answers

Summary of Contents for Bradley Express SS-Series Express SS-3N/BIR3/STD

  • Page 1: Table Of Contents

    Clean Soap Dispenser ....... . . 15 P.O. Box 309 215-1496 Rev. J; ECN 17-08-026 Menomonee Falls, WI 53052 USA © 2018 Bradley 800 BRADLEY (800 272 3539) +1 262 251 6000 Page 1 of 15 9/7/2018 bradleycorp.com...
  • Page 2: Pre-Installation Information

    Product warranties may be found under “Products” on our website at www.bradleycorp.com. Special Note for Sprayhead/Bowl retrofit to retrofit new SS-3N sprayhead onto existing SS-3 bowl 2-1/4" (57mm) Drill hole Ø 1" (25mm) to 1-1/2" (38mm). Existing Hole 1-1/2" (38mm) Bradley • 215-1496 Rev. J; ECN 17-08-026 9/7/2018...
  • Page 3: Components

    Bowl Mounting Hardware 1/8" Rubber Washer (125-001DP) 1/4"-20 1/4"-20x1/2" Washer Pan Head (qty 4) Screw (qty 4) Waste Shoe (142-002DB) (160-389) (111-062) P-Trap (Polypropylene) (269-1697) Waste Tee Optional P-Trap (111-063) (Chrome-Plated Brass) (S29-094) Bradley • 215-1496 Rev. J; ECN 17-08-026 9/7/2018...
  • Page 4: Supplies Required

    30" (762) 68-1/4" (1734) Front View Standard Frame SOAP SOAP 8" (203) 51-1/4" (1302) 58" (1473) 64" (1626) 68-1/4" (1734) Front View Wall-Hung Frame SOAP SOAP 8" (203) 58" (1473) 64" (1626) Bradley • 215-1496 Rev. J; ECN 17-08-026 9/7/2018...
  • Page 5 Grades: 6 through 8 or 9 Grades: Pre-K through 5 or 6 11-1/2" 11-1/2" (292) (292) 36-1/2" 34-1/2" (927) (876) 32" 30" (813) (762) 8-5/8" 8-5/8" 28" (219) 26" (219) (711) (660) 11-1/4" 9-1/4" (286) (235) Bradley • 215-1496 Rev. J; ECN 17-08-026 9/7/2018...
  • Page 6: Rough-Ins

    34" None Standard Height 34" None Wall-Hung 32" Subtract 2" TAS, Grades 6 through 8 or 9 31" Subtract 3" Juvenile Height 30" Subtract 4" TAS, Pre-K through Grades 5 or 6 Bradley • 215-1496 Rev. J; ECN 17-08-026 9/7/2018...
  • Page 7: Mount The Frame

    ¼-20 x ½" pan-head screws and washers. Do not tighten screws. Secure the bowl to the wall anchors with two 3/8" bolts and washers. Do not overtighten. Tighten the pan-head screws. Do not overtighten. Bradley • 215-1496 Rev. J; ECN 17-08-026 9/7/2018...
  • Page 8: Connect The Supply - Hot And Cold Supply

    Loosen but do not remove the two mounting screws holding the valve bracket to the frame. Slide the valve bracket up and lift it from the frame. Attach the stop to the tempered wall stub-out. Bradley • 215-1496 Rev. J; ECN 17-08-026 9/7/2018...
  • Page 9: Install The Drains

    Black Supply Tubing Green Supply Tubing Red Supply Tubing Snap the sensor cable Snap the battery cable plugs from the sprayhead into the proper valve’s plugs into the female circuit board plugs. circuit board. Bradley • 215-1496 Rev. J; ECN 17-08-026 9/7/2018...
  • Page 10: Adjust The Temperature

    Reinstall the valve bracket. Turn on the water supply to the Express and check for leaks. Push the operating buttons of each station until all the air is purged from the lines and water is flowing smoothly. Reinstall the access panel. Bradley • 215-1496 Rev. J; ECN 17-08-026 9/7/2018...
  • Page 11: Cleaning And Maintenance

    For complete instructions on this additional maintenance, visit bradleycorp.com. Repair Kits: Terreon repair kits are available. Contact your Bradley representative or distributor for part numbers and pricing. Repair kits are made to order and have a shelf life of 30 days.
  • Page 12: Troubleshooting - Bir3 Components

    Make a note of the numbers printed on the circuit board, then contact your Bradley representative for assistance. Bradley • 215-1496 Rev. J; ECN 17-08-026...
  • Page 13: Solenoid Valve

    2. Inspect the stop valves to see that they have been properly installed. 3. Inspect the thermostatic mixing valve for proper installation and connection to hot and cold supplies. Bradley • 215-1496 Rev. J; ECN 17-08-026 9/7/2018...
  • Page 14: Thermostatic Mixing Valve Troubleshooting

    198-014 Check Valve* 132-051 Retaining Ring* 118-319 Valve Body 146-079 U-Clip * Included with Prepack S65-326 Tempered Line Adapter Option Part no. S39-804 (replaces S59-4000 if tempered line is used) Strainer (173-028) Bradley • 215-1496 Rev. J; ECN 17-08-026 9/7/2018...
  • Page 15: Fill Soap Dispenser

    To change soap, pour out all of the soap from the dispenser and rinse with hot water several times until all residue is removed. Pump the valve until clean water appears. Rinse the dispenser with ethyl alcohol; air dry before refilling. Bradley • 215-1496 Rev. J; ECN 17-08-026 9/7/2018...
